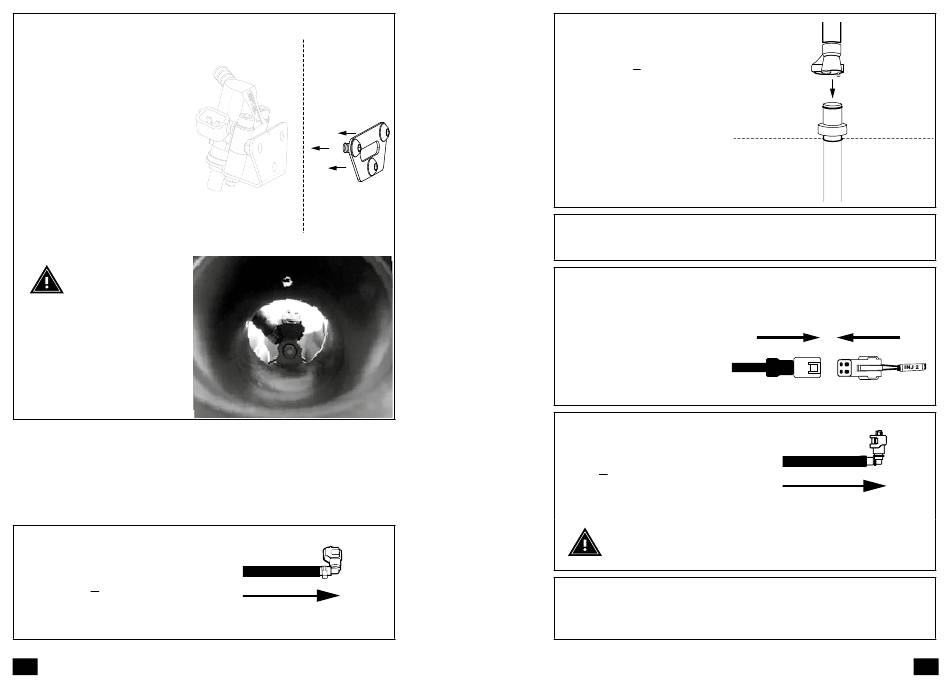

GET 2ND INJ. KIT Guide D'installation page 5

2.
Align the supplied metal
bracket on the outer part of
the manifold over the three
holes made previously in
step 2, section "MANIFOLD".
Fix the metal bracket
and the second injector
together with the screws
and washers supplied in
GET kit. Apply a strong
thread locker (e.g. Loctite
278). The second injector is
now fixed to the manifold.
ATTENTION:
Make sure that
the injector is
well positioned:
looking at it
from the throttle
body, the injector
must be perfectly
centered.
2ND INJECTOR KIT INSTALLATION
1.
Connect the end of
the hose "A" to the OEM
injector.
EN
Inside Outside
A
To OEM injector
8
2.
Connect the end of
the hose "C" to the fuel
hose plug installed on
the manifold (Section D,
"Injector Fixing Bracket
Installation", step 1).
Install the hose by
passing it on the left side
of the bike.
3.
Re-install the manifold, now equipped with GET 2nd injector.
4.
Remove the protective
cap from the "INJ2"
GET ECU connector and
plug it into the female
second injector harness
connector.
5.
Connect the end of
the "B" hose to the fuel
pump.
ATTENTION: Pay attention to cutting edges.
6.
Re-install the fuel tank, the seat and all other components
initially removed during the preparatory steps.
9
C
GET
fuel hose
Outside
Inside
D
GET
fuel hose
Second
GET
injector
harness ECU
B
To the fuel pump
