GET 2ND INJ. KIT Guide D'installation page 4

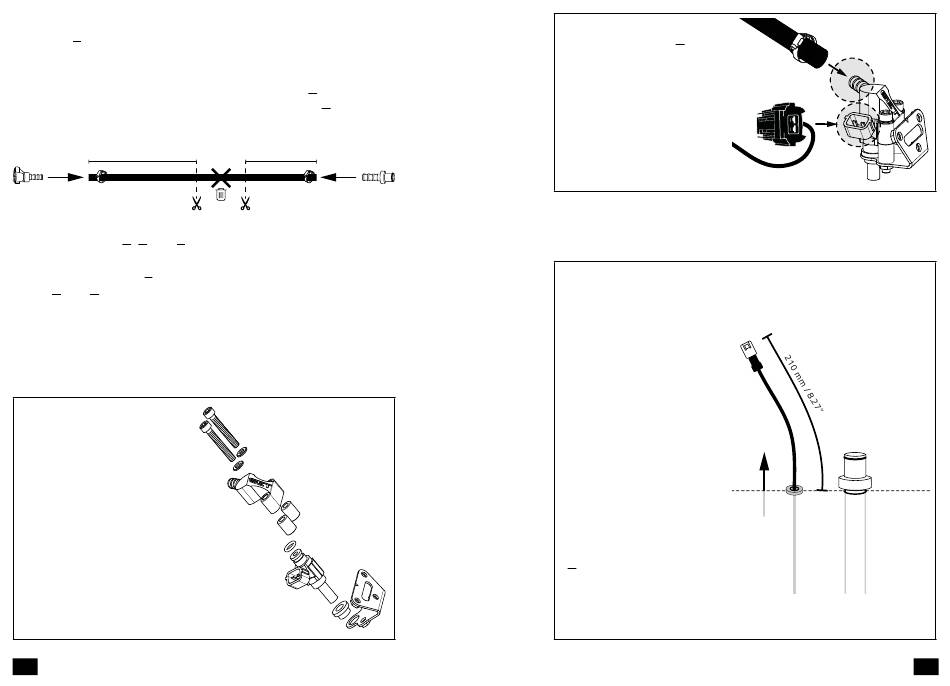

2. Cut 310 mm / 12.20" from GET fuel hose, included in the kit.
This part "C" will be connected to GET second injector. Install the
fuel hose plug provided in GET kit on the hose using a Ø 15mm /
0.59" hose clamp.
3. Cut 110 mm / 4.33" from GET fuel hose (hose "D"). Install the
supplied white fuel hose plug in an end of the hose D, then fix it
with a Ø 15 mm / 0.59" hose clamp.
310 mm / 12.20"
C
4. Connect hoses A, B and C with the 3-way fitting included in
the kit. Fix everything with hose clamps. Use Ø 15mm / 0.59"
hose clamp for hose C, and Ø13 mm / 0.51" hose clamps for
hoses A and B.
D. 2ND INJECTOR KIT INSTALLATION
2ND INJECTOR ASSEMBLY
1.
Use the two supplied
red spacers and screws
to fix the injector to the
support bracket and
install the red fuel rail.
Do not forget the second
injector seal. We suggest
applying a strong thread
locker (e.g. Loctite 278).
EN
110 mm / 4.33"
D
6
2.
Attach the D fuel
hose to the fuel rail with
a Ø 13mm / 0.51" hose
clamp. Plug the male
connector of the 2nd
injector harness to the
2nd injector. Bundle hose
and harness together
with a couple of zip ties.
INJECTOR FIXING BRACKET INSTALLATION
1.
Pull the second
injector harness out from
the manifold, passing it
through the Ø 6 mm /
0.24" injector harness hole,
made previously (Section
C, "Manifold", step 4). The
harness must stick out
from the manifold about
210 mm / 8.27". Pay
attention to the injector
cable rubber grommet: it
must be properly fitted
on the manifold surface.
Pass the upper part of
the fuel hose plug of hose
D through the Ø 8 mm
/ 0.31" fuel hose hole,
made previously (Section
C, "Manifold", step 4).
D
Outside
Inside
D
GET
fuel hose
7 EN
