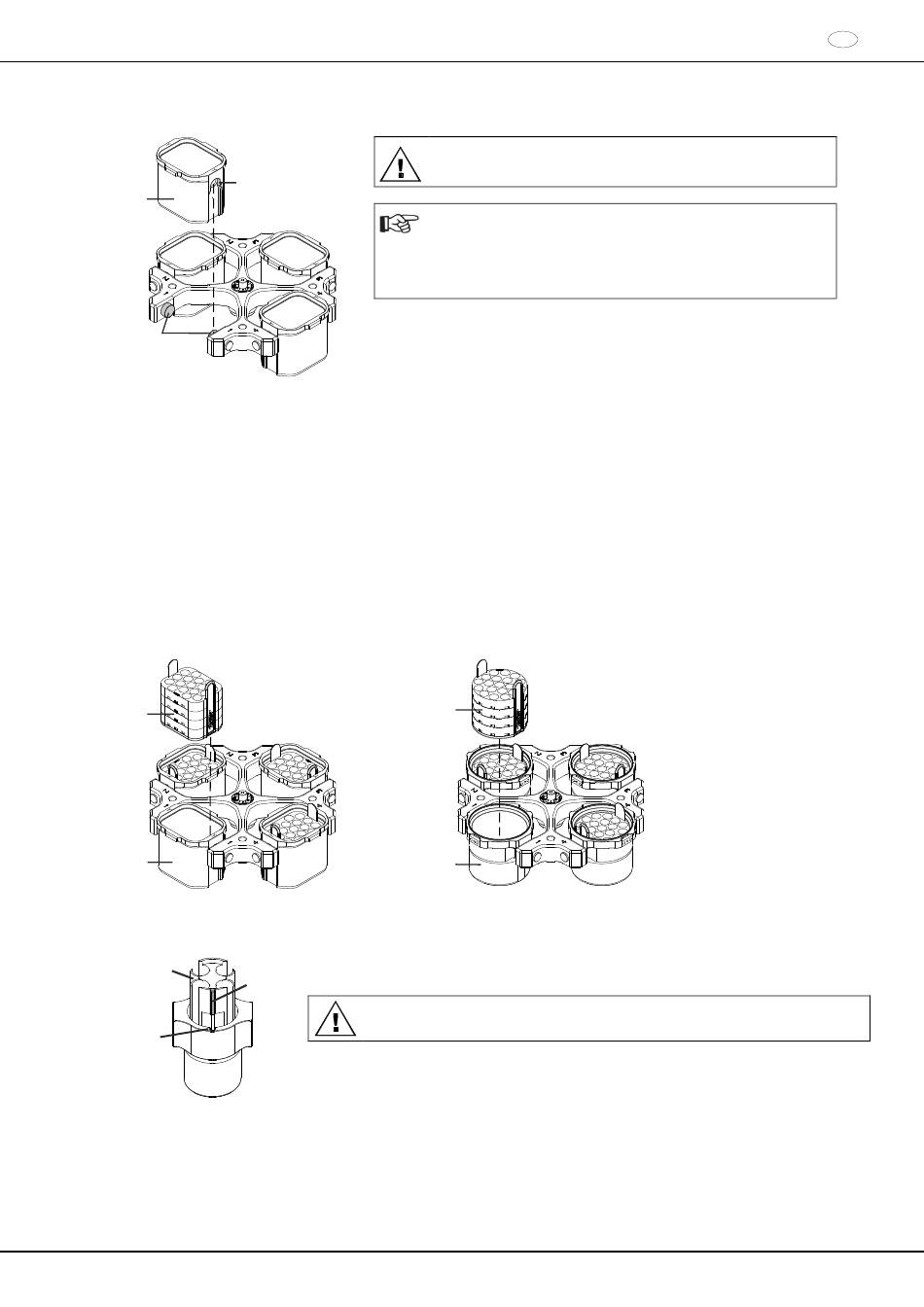

Inserting and removing hangers into/from the rotor

B
A
C
13

Inserting and removing the adapters into/from the hangers

Inserting the adapters into the hangers:
•
Insert the adapters (A) horizontally into the hangers (B).
Remove the adapters from the hangers:
•
Remove the adapters (A) upward and out of the hangers (B).
A
B
14

Inserting the adapter with positioning pin into the hanger

•
a
b
c
AB1401DEENFRIT
For swing-out rotors, all rotor places must be occupied with the
same hangers.
Certain hangers are marked with the number of the rotor place.
These hangers may only be inserted in the corresponding rotor
place.
Hangers which are labelled with a set number, e.g. S001/4,
may only be used in a set.
Inserting hangers in the rotor:
•
Check the rotor to make sure it is seated firmly.
•
Grease the lifting lug (C) (Hettich lubricating grease, no. 4051).
•
Insert hangers (A) into the rotor. While doing so, make sure that the
lifting lugs (C) are in the grooves (B) of the hangers.
•
Push the hangers downward as far as they can go.
Removing hangers from the rotor:
•
Pull the hangers (A) straight upward and out of the rotor.
A
B
Insert the adapter (a) into the hanger such that the positioning pin (b) is in the groove (c)
of the hanger.
If the adapter (a) is not correctly inserted, the centrifuge containers could be
damaged during the centrifugation run.
