6. Product information

6.1 Mode of operation

The linear unit is used for linear processing and positioning. The carriages are driven into their
positions by a tapped spindle drive. This motion can be carried out manually with a handwheel or
by an electric drive. Carriages are checked for precision steel tubes.

6.2 Versions/Guidance concept

This linear unit is available in the configurations given here.
•
After receiving this linear unit, check the device for possible damage and missing components.
•
Immediately notify RK Rose+Krieger GmbH of any faults found.
The linear unit is delivered ready for operation, but without a control system and without
accessories.

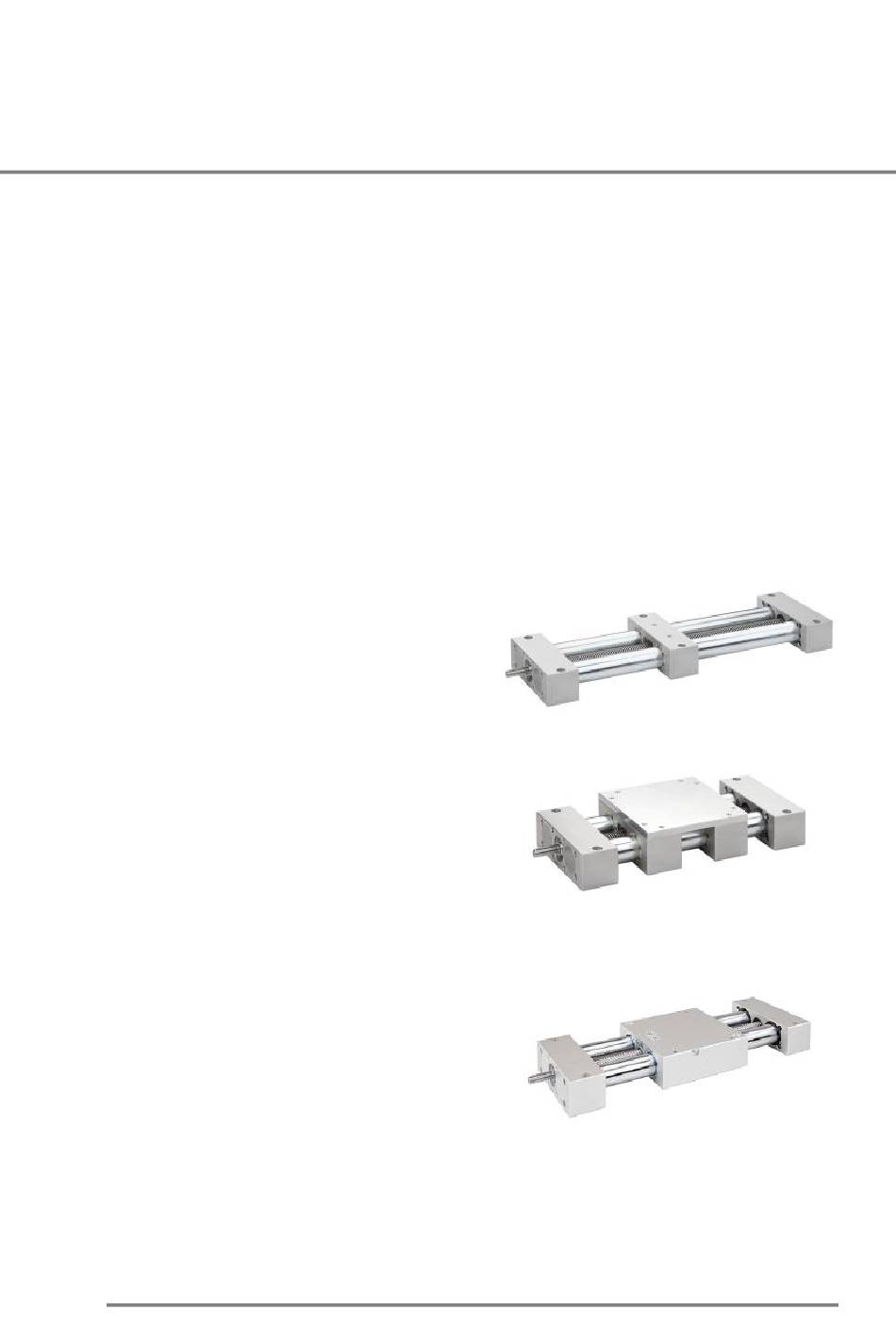

6.2.1 Versions

Tubular linear unit EP-II
Configuration with spindle, individual carriages
Trapezoidal screw in the following versions:
•
Right or lefthand thread
•
Right and lefthand thread
•
Split screw
Tubular linear unit EPX-II
Configuration with spindle, two carriages and
fixing plate
Trapezoidal screw in the following versions:
•
Right or lefthand thread
•
Right and lefthand thread
•
Split screw
•
Tubular linear unit EPX-II
Configuration with spindle, individual carriage in two
lengths
Ball screw in the following versions:
•
Righthand thread
