6. Product information

6.1 How it works

The linear unit is used for linear processing and positioning. A toothed belt drive moves the slot
into its position. This motion can be effected manually with a handwheel or by an electric drive.
Depending on the version, the slides are guided without any play on rail sections or steel guide
shafts with rollers.

6.2 Designs/Guidance concept

This linear unit is available in the designs and guidance versions given here.
•
After receiving this linear unit, check the device for possible damage and missing components.
•
Notify RK Rose+Krieger GmbH of any faults found immediately.
The linear unit is delivered ready for operation, but without a controller and without accessories.

6.2.1 Designs

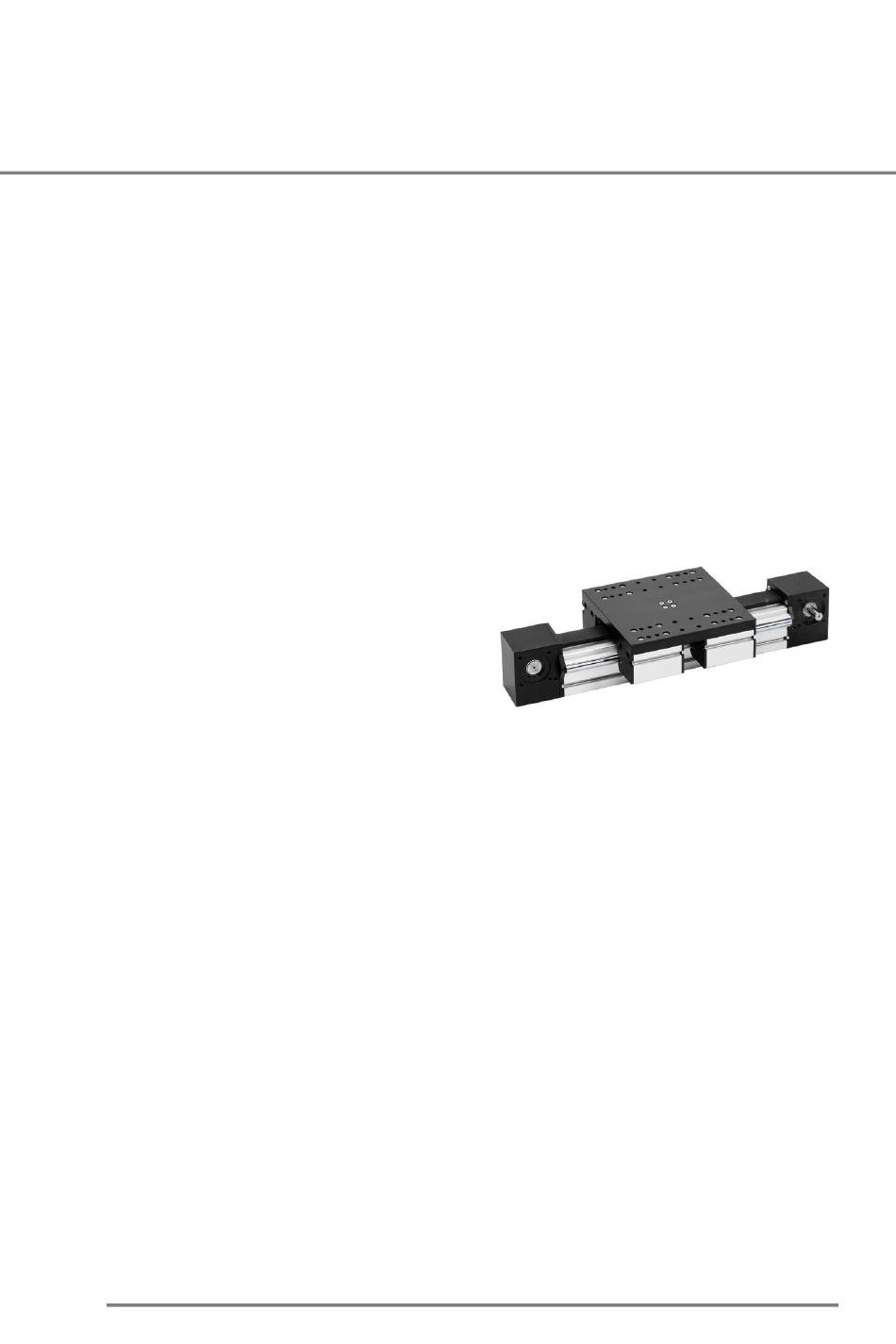

LMZ 100
Design with toothed belt
40
