5.5 Assembling the extraction arm 5 – 10 m
To assemble the extraction arm, follow the enclosed installation
instructions.
Carry out the further assembly as follows:
Item Description
11 Dust collection bucket
14 Spacer
1. Mount the spacer (item 14) centrally approx. 5 cm below the dust
collection bucket (item 11).
2. Mount the wall bracket of the extraction arm (item 15) on the spacer
(item 14).
1502518-00

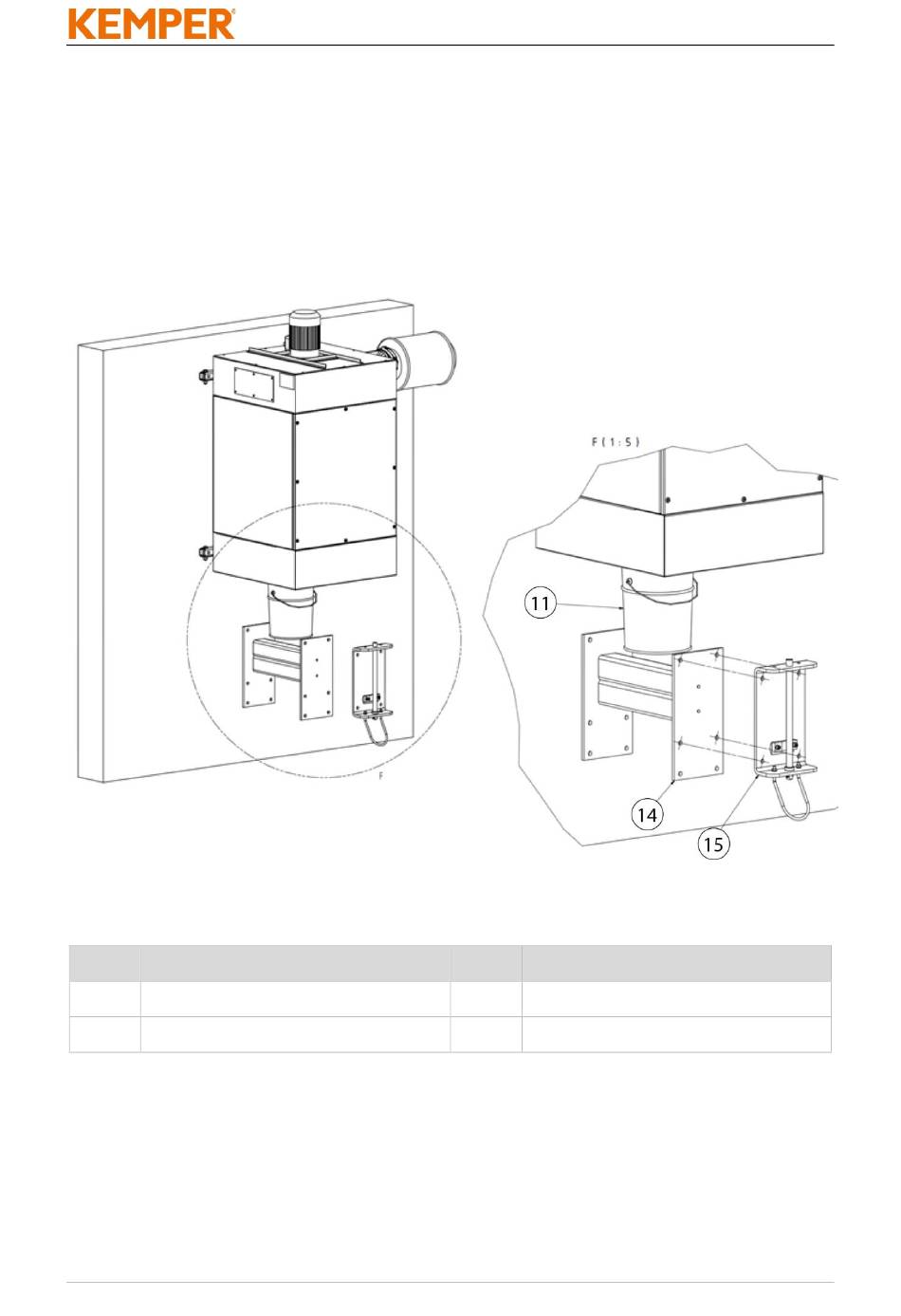

Fig. 37: Assembling the extraction arm 5 – 10 m
Tab. 26: Assembling the extraction arm 5 – 10 m
Item Description
15 Extraction arm wall bracket
