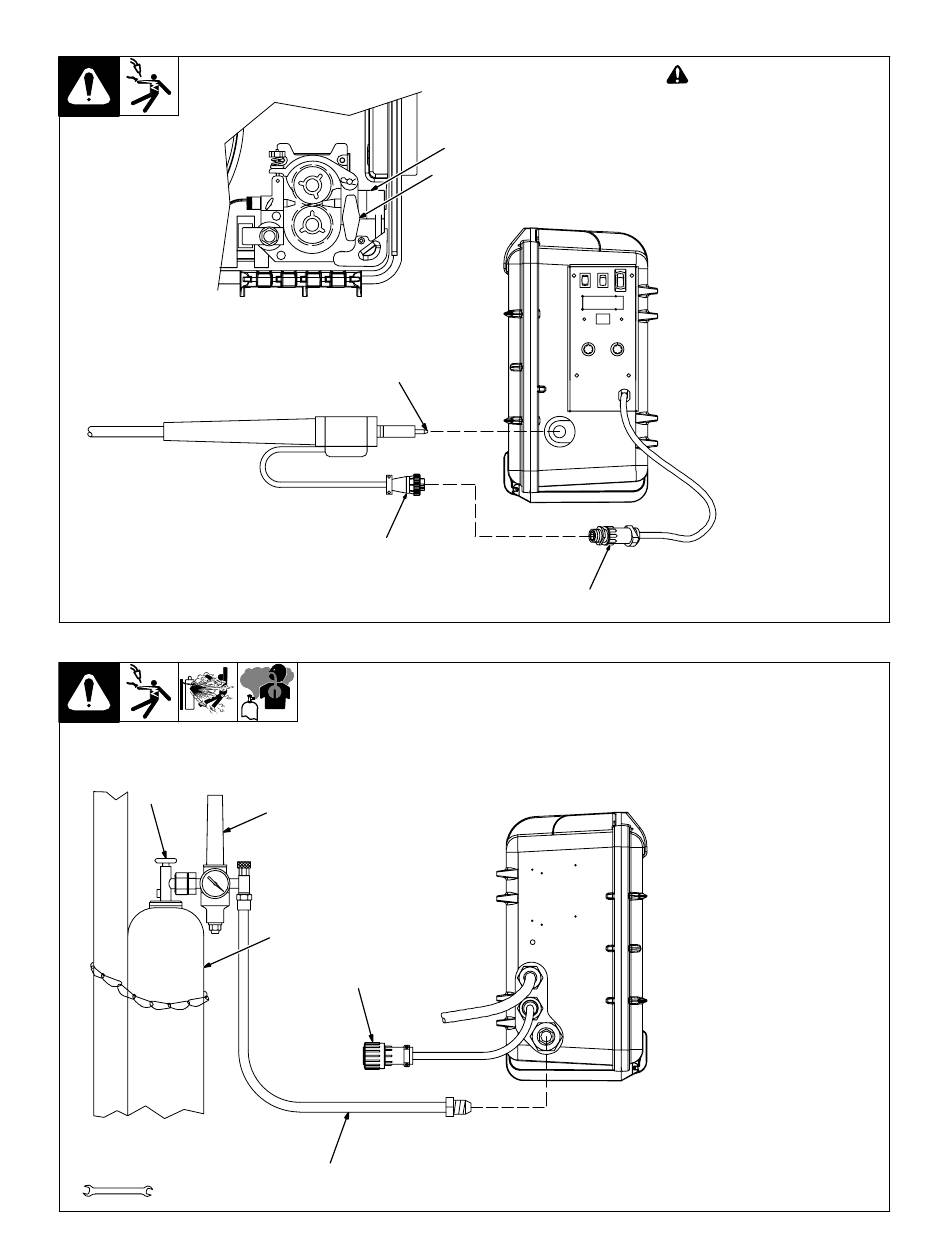

4-6. Connecting Welding Gun

4-7. Connecting Shielding Gas

3
Tools Needed:
5/8 in
OM-1500-15 Page 16
Internal Side View
3
4
4
2
5
1
2
1
5
Rear View
!
Turn Off wire feeder and
welding power source. Stop
engine on welding
generator.
1 Gun Securing Knob
2 Gun Block
3 Gun Power Pin
Loosen knob, insert gun end into
block. Position power pin as close
as possible to drive rolls without
touching. Tighten knob.
4 Gun Trigger Plug
5 Gun Trigger Receptacle
804 209-B
1 Gas Hose With 5/8-18
Right-hand Thread Fittings
(Customer Supplied)
2 Shielding Gas Cylinder
.
Shielding gas pressure not to
exceed 100 psi (689 kPa).
3 Valve
4 Flowmeter
5 14-Pin Plug
Close valve on cylinder when fin-
ished welding.
804 208-A
