7.2- Product installation safety requirements

The following installation precautions should be taken when
several radio systems are operating on a same site.
Be sure to observe the rules detailed below.
Note : These requirements apply to all power levels and transmission
modes of the ISIS transmitters or transceivers.
7.2.1- Conditions to be observed between two ISIS
assemblies with same transmit power (1 or 10mw)
E1
Condition 1 :
Condition 2 :

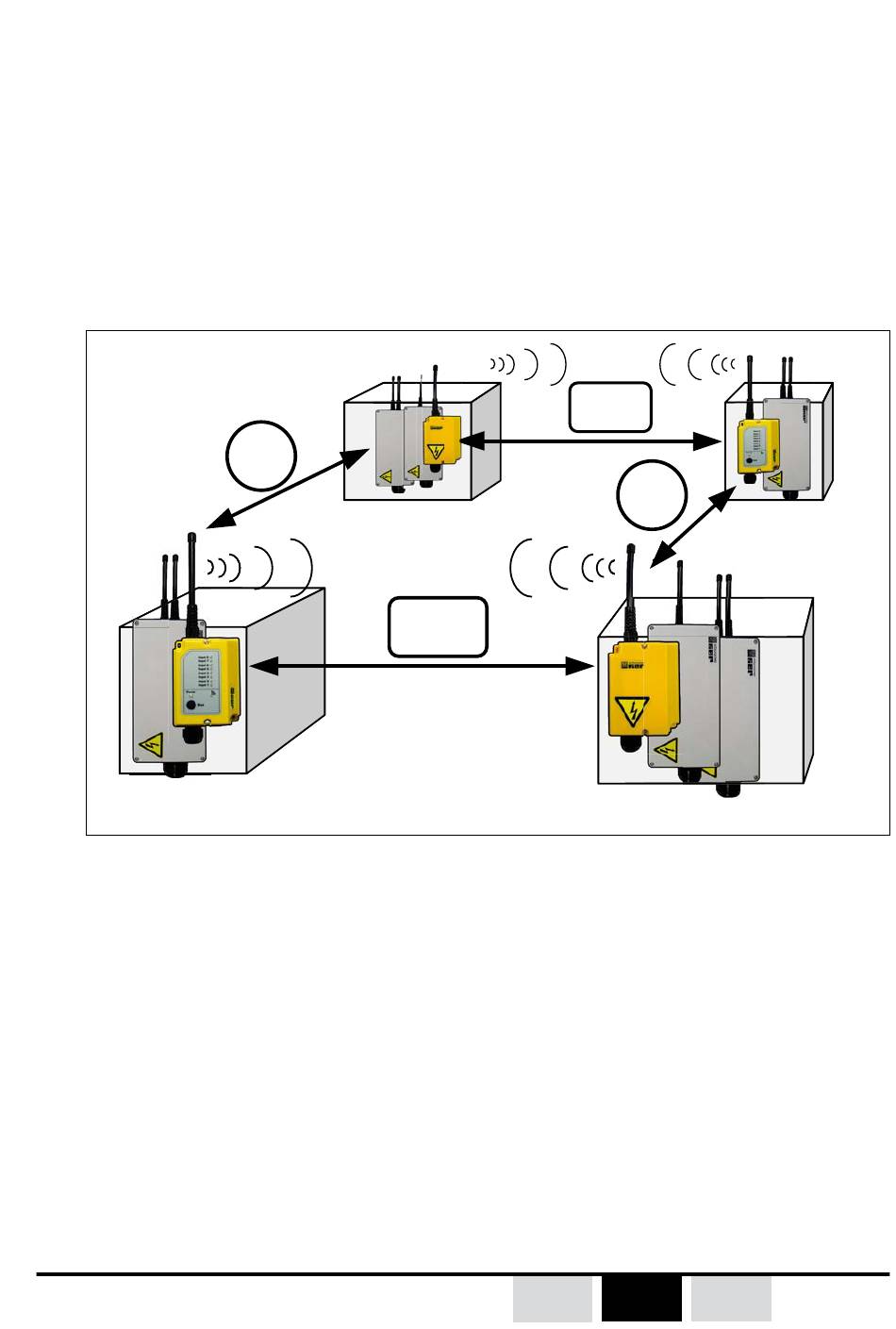

The distance «d1» or «d2» to be observed is linked to the spacing
between the radio channels and the range P1 or P2 .
Use the chart on the following page to properly set up the components.
ISIS - 331260D
d1
E4
P1
Ensure a spacing of at least 2 radio channels between
the two ISIS assemblies (Example : channel No. 5 for
assembly E1-E2 and radio channel No. 7 for assembly
E3-E4)
Ensure a minimum distance «d1» between the
transmitter E1 and the receiver or transceiver E2 and
«d2» between the transmitter or transceiver E3 and the
receiver or transceiver E4.
revision02
P2
d2
