Receiver ISR - Receiver module of transceiver IST Receiver ISR - Receiver module of transceiver IST

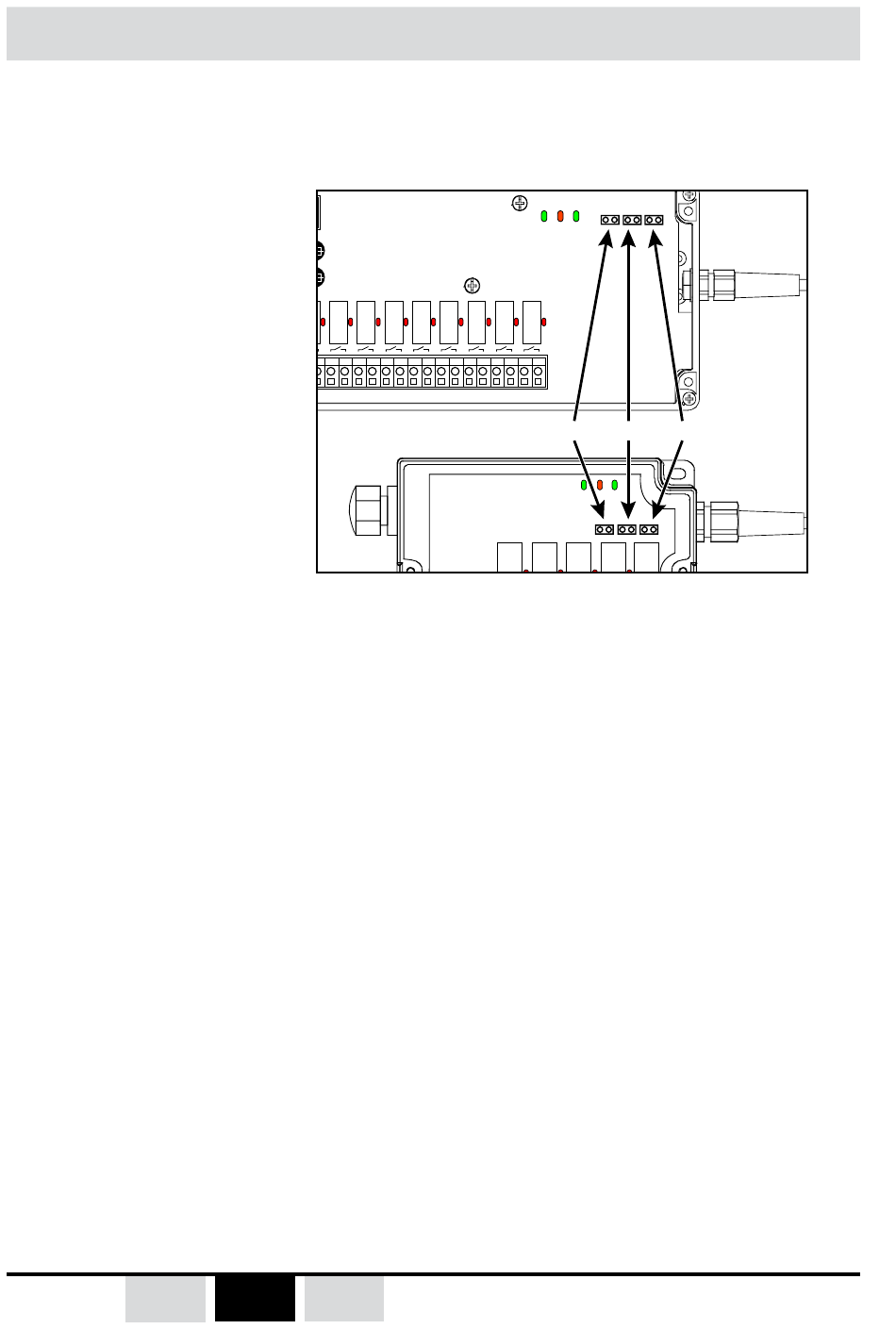

The receiver is confi gured using 3 encoding jumpers JP1, JP2
and JP3 which must be short-circuited (or not) before they are
supplied.
Receiver ISRA
or receiver module
of transceiver IST
Receiver ISRS
6.2- Changing the product confi guration
Follow the procedure in next page.
Precaution to be taken :
If you do not change the identity code, you can go directly to step
2. In this case, there is no need to short-circuit jumpers JP1 and
JP3 on the receiver.
IMPORTANT :
Beware that this procedure can unintentionally associate another
ISIS receiver using the same identity code. Before you begin the
association procedure, be sure to check the identity code used on
the other ISIS.
You can perform a new transmitter-receiver association with a
different identity code without switching off the receiver power
supply. To do so, repeat the procedure starting from step 2.
