7.1.1- Using the exterior antenna

If the optimum installation conditions are not observed (installation
in cabinet, for example), you must use an exterior antenna with
extension (BNC connector), which can be ordered separately.
For this confi guration, you must purchase and install the plug-in
BNC antenna kit, reference : OWR01 (See procedure in section
entitled «Installation of exterior antenna kit»)..
Transmitter ISE or receiver
ISR or transceiver IST
Antenna extensions available :
ref. : VUB170, 0,5m extension (BNC connector), without bracket
ref. : VUB105, 2m extension (BNC connector), with bracket
ref. : VUB125, 5m extension (BNC connector), with bracket
ref. : VUB131, 10m extension (BNC connector), with bracket
IMPORTANT :
JAY Electronique shall not be liable for use made of any other
extensions or antennas other than those recommended above.
The performance of the transmit antenna may not satisfy the
requirements of the currently applicable standards.
FR
- 78 -

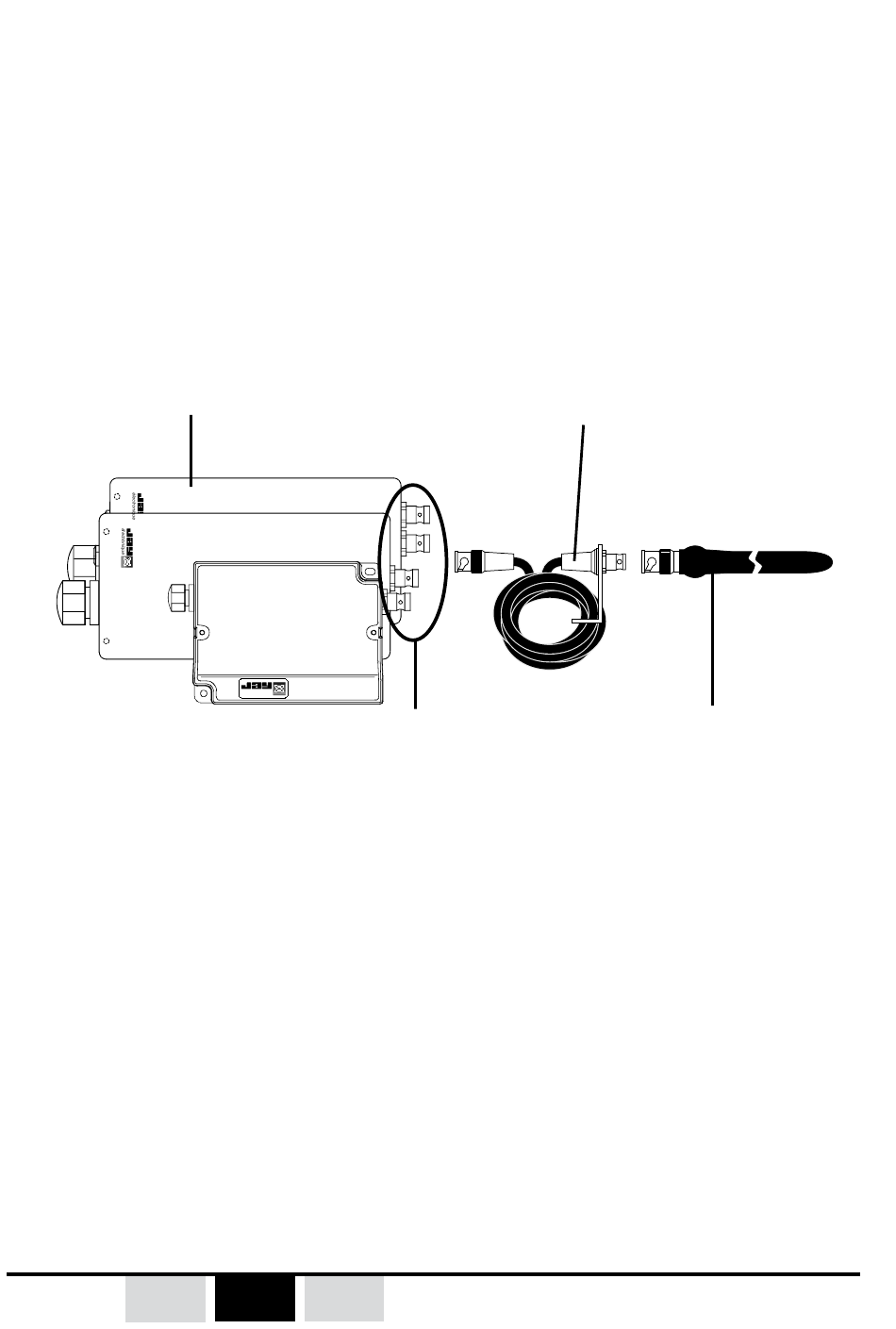

IST
ISRS/ISRA
ISE
électronique
Antenna BNC
connector kit
Ref.: OWR01
EN DE
Antenna extension
(see Ref. below)
Antenna
Ref. : VUB084
ISIS - 331260D
revision02
