Dexxo Optimo RTS

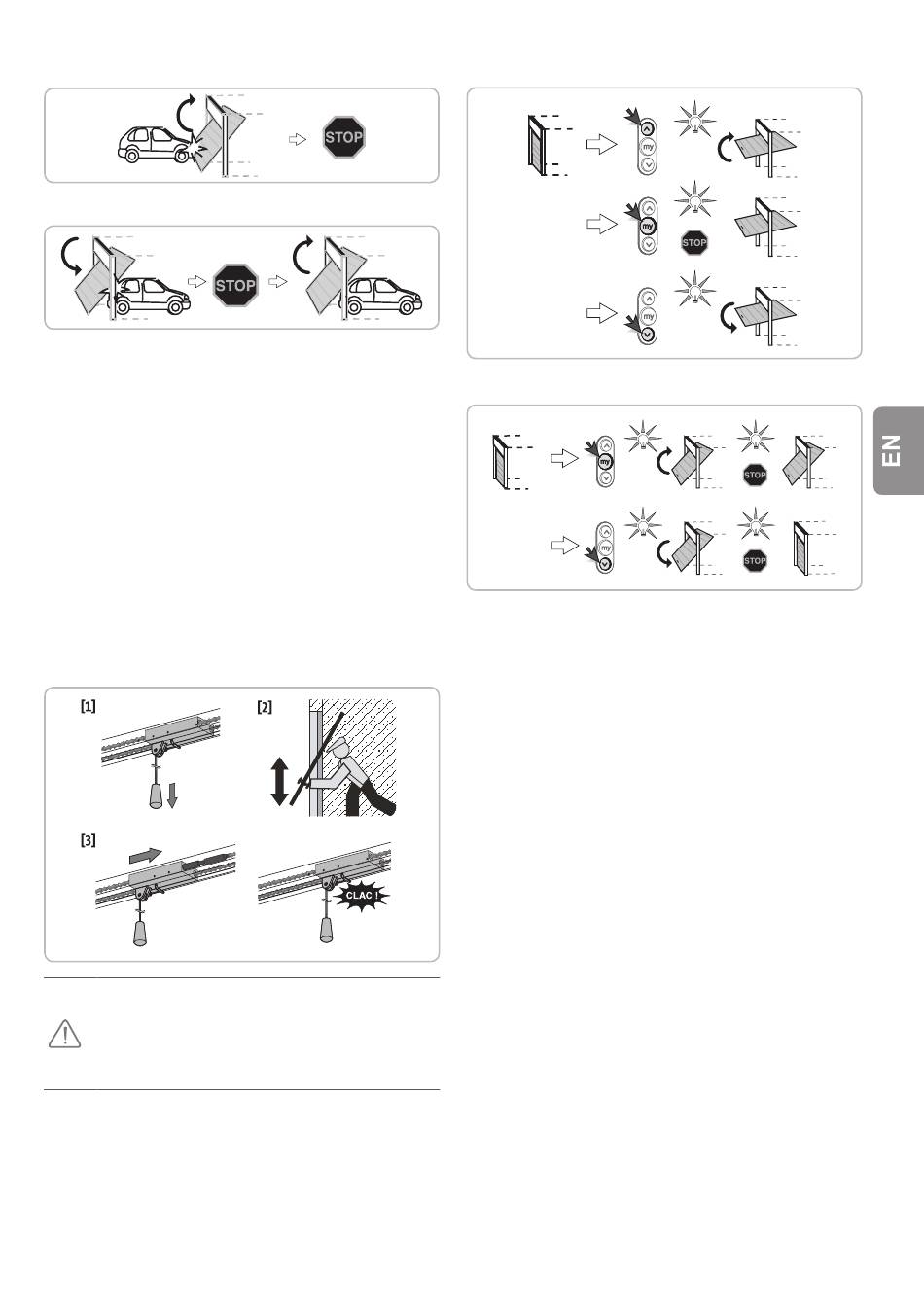

obstacle detection operation
When an obstacle is detected during the open cycle, the door will stop.
When an obstacle is detected during the close cycle, the door will stop and then
reopen.
Once an obstacle has been detected, the light will flash for 30 seconds.
light operation
The light will come on each time the motor drive unit is operated. The light will
go out one minute after the door stops moving.
Repetitive use that causes the light to be continually on may result in a thermal
cut out (this will automatically turn the light off).
Manual release cord operation
Dexxo Optimo RTS is fitted with a manual release mechanism so that you can
move the door manually should a power failure occur, for example. The manual
release mechanism should be easily accessible and located no more than
1.80 metres above floor level.
[1]. Disengaging the motor drive mechanism
Pull on the manual release cord until the door drive mechanism is
disengaged.
[2]. Manually moving the door
This is possible as long as the door drive mechanism is disengaged.
[3]. Reengaging the motor drive mechanism
Move the door manually until the drive mechanism comes to reengage
itself into the transmission rail.
When disengaging the motor drive mechanism, use caution for a
badly balanced door may cause sudden door movement that may
be dangerous.
Only use the cord to disengage the motor drive mechanism. Never
use the cord to move the door manually.
Always reengage the motor drive mechanism before sending
another command to the motor drive unit.

4.2 special operation

Depending on the peripherals installed and the operating options set by your
installer, the motorisation may perform the following special operations:
Copyright © 2015 Somfy SAS. All rights reserved
operation in «total opening» mode with a telis type remote
control or similar
operation in «Partial opening» mode with a telis type remote
control or similar
safety photoelectric cell operation
An obstacle detected between the cells will prevent the door from closing.
The door will stop and then reopen when an obstacle is detected during the
close cycle.
The light will flash for 30 seconds during this process.
Pedestrian door safety function
Opening a pedestrian door within the garage door will prevent the door from
moving.
The light will flash for 30 seconds during this process.
Flashing orange light
Opening a pedestrian door within the garage door will prevent the door from
moving.
The light will flash for30 seconds during this process.
working from the back-up battery - ref.9001001
If a back-up battery is installed, the Dexxo Optimo RTS motor will operate when
a power cut occurs.
The following conditions apply to operation:
- Door speed is reduced.
- The light will not come on.
- The safety devices are disabled.
Battery specifications:
- Endurance: The battery will last for 24 hours with a maximum of 5 to 10
operating cycles depending on the weight of the door.
- Recharging time: 48 hours.
- Service life prior to replacement: approx. three years.
To ensure optimum battery life, we recommend that the power to the motor is
switched off and the door is operated for a number of cycles using
battery power (three times a year).
