General Internal View; Block Diagram - SLAT SON 24V 12A MS150 RACK Notice D'utilisation

If you would like to use another battery type, please let us approve them.
Check that the batteries are in conformity with the standards effective in the countries where they are used
1.3

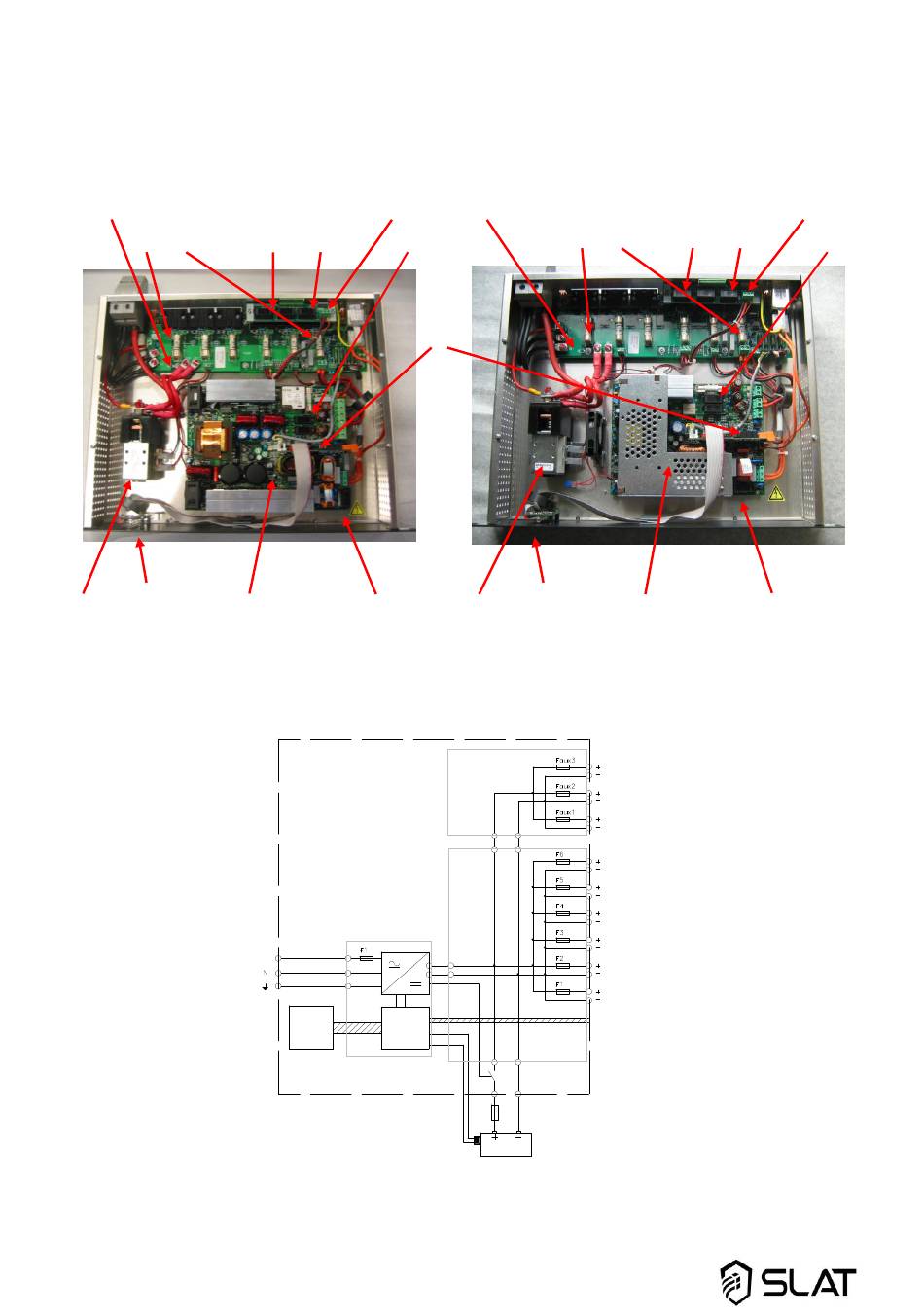

General internal view

Main outputs board Auxiliary outputs board
F1 to F6
LEDs
Relays Power and control board
1.4

Block diagram

It is advised to secure the battery with a fuse with low resistance. For its size, refer to chapter 7.
Faux1 to Faux3 F8
jumper
F1
Figure 2 General internal view
Auxiliary outputs board
Main outputs board
Power and control board
L
Display Daughter
Board
Temperature sensor
Figure 3 : Block diagram
Main outputs board
F1 to F6
LEDs
Relays Power and control board
Output 9
Output 8
Output 7
Output 6
Output 5
Output 4
Output 3
Output 2
Output 1
Alarm outputs
Battery
31
Auxiliary outputs board
Faux1 to Faux3 F8
F1
