Connection overview

A
E
A Mains power socket
B Auxiliary output terminals
(outputs 7 to 9)
C Temperature sensor socket
D Main output terminals
(outputs 1 to 6)
E Alarm reports
F Battery terminal
Important: the openings provided in the cabinet must be kept free. Do not create additional openings
because this can cause the device to malfunction and voids the warranty.
3.2

Connection specifications

Mains: 2.5 mm².
-
Battery: 16 to 50 mm².
-
- Main outputs (outputs 1 to 6): 16 mm².
- Auxiliary outputs (outputs 7 to 9): 2.5 mm².
Alarm reports (plug-in): 1.5 mm².
-

3 Connection

B
D

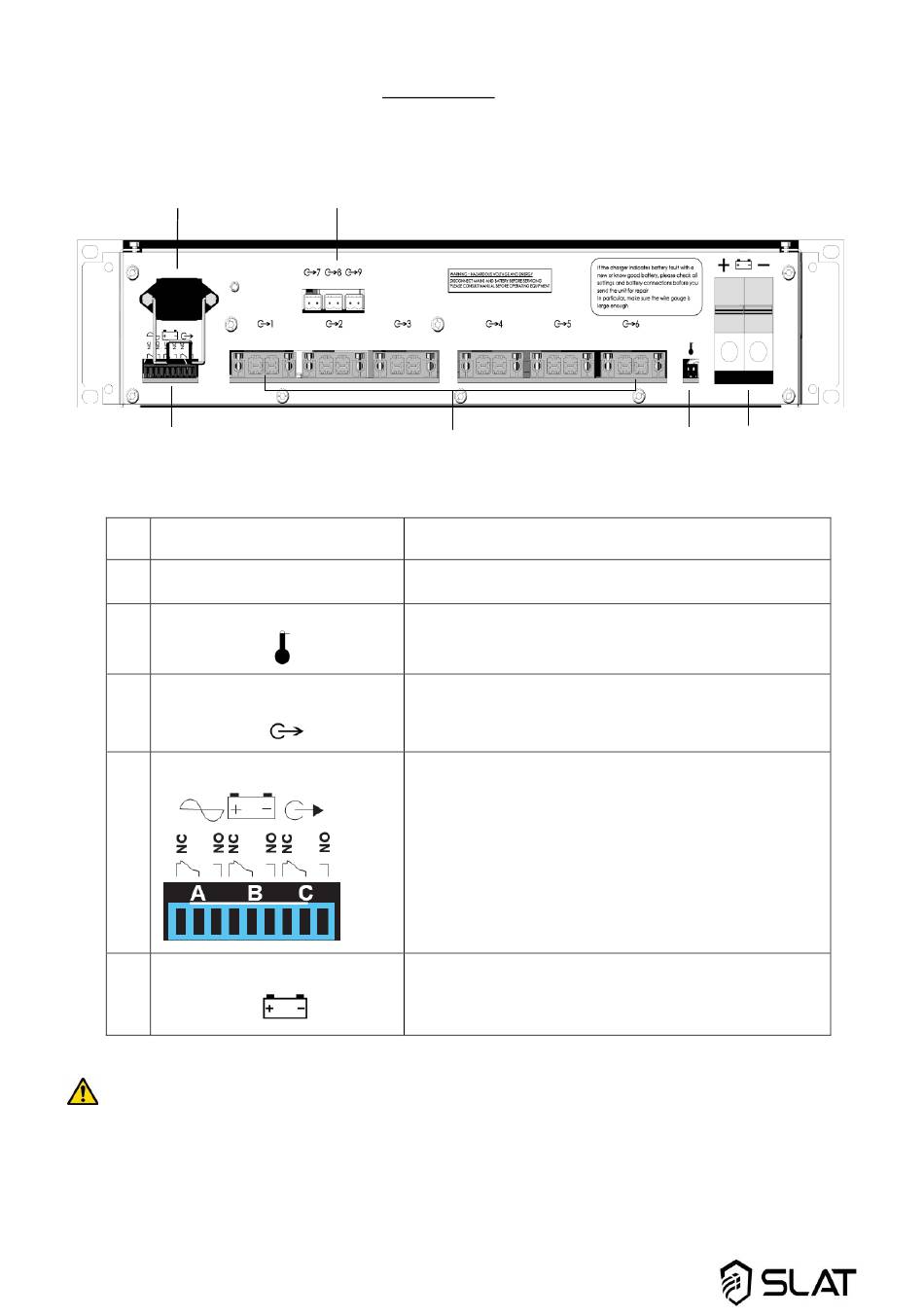

Figure 5 : Rear side view of PSE
Socket for connecting the battery charger to the mains
Three auxiliary output terminals (5 A max.). The outputs are
protected by a fuse (Faux1 to Faux3).
Socket to connect the temperature sensor.
Six output terminals (40 A max.). The outputs are
protected by a fuse (F1 to F6).
Fail-safe, dry contact, three-pole SPDT switch (C- NC-
NO), allowing 1 A at 24 Vdc or 0,5 A at 120 Vac:
A Mains status
B Battery status
C Output voltage status
Terminal for connecting the battery leads (150 A max.).
+ positive polarity of the battery
- negative polarity of the battery
