DK50 PLUS
18.5.

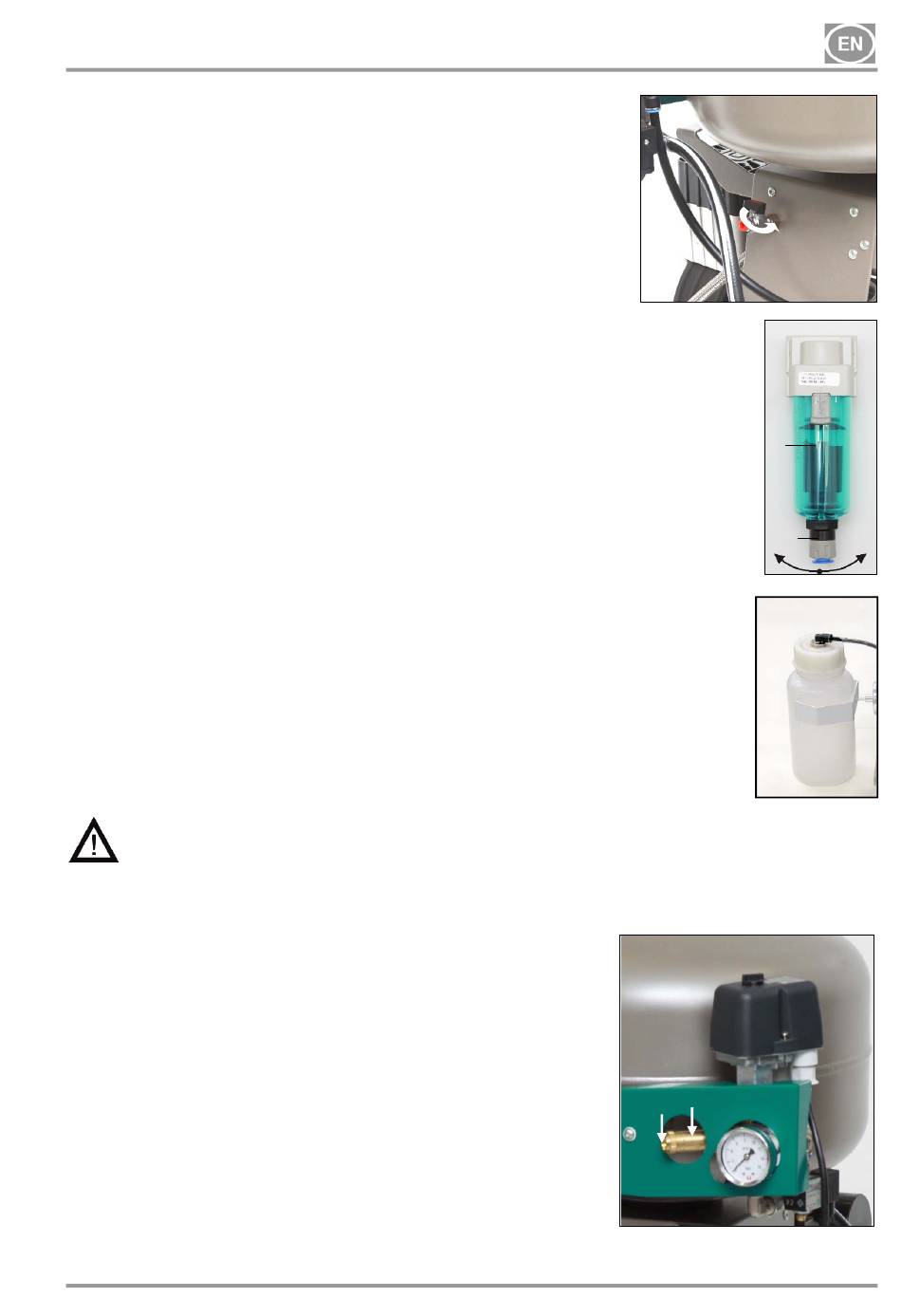

Condensate drain

Compressors (Fig. 14)
Draining the condensate from the pressure vessel is
recommended during regular operation. Switch off the
compressor at the mains. Reduce air pressure in the
device to max. 1 bar by releasing air via a connected
device. Install the hose from the basic package into the
drain valve. Place a vessel under the hose and open the
drain valve (1) and drain the condensate from the tank.
Compressors with condensation and filtration unit
(Fig.15)
During regular use, condensation is automatically drained
via the drain valve of the condensation unit filter. To check
that the automatic drain is working properly, open the
valve (4) of the drain vessel (2) by turning to the left.
Release a small amount of condensate from the vessel.
Close the valve (4) by turning to the right.
Both compressor types can be equipped with an automatic
condensate drain on the air tank to allow condensate to
drain without operator intervention (see the Scope of
Delivery – Accessories chapter).
Compressors with air dryer (Fig.16)
Condensate from
automatically drained into a collecting bottle. The bottle
must be drained regularly, see Chapter 18.1
THE FOLLOWING IS REQUIRED BEFORE ANY FOLLOW-UP CHECKS
For cabinet-mounted compressors, unlock the door and open the door on the cabinet.
18.6.

Safety valve check

(Fig. 17)
When the compressor is operated for the first time, make
sure that the safety valve is working properly. Turn the
screw (2) on the safety valve (1) several rotations to the left
until the safety valve releases air. Let the safety valve vent
for only a few seconds. Turn the screw (2) to the right until it
seats, closing the valve.
02/2018
compressors with
Fig. 14
air dryers is
Fig.17
- 29 -
1
1
2
Fig.15
Fig.16
:
1
2
NP-DK50 PLUS-1_01-2018-MD A
