Accessories; Standard Striking Plate (Continuous); Escape Door Strike 331U; Loose Striking Plates Prepared For Escape Door Strike 331U - Assa Abloy effeff 319 Notice D'installation Et De Montage

www.assaabloy.de
Service / Downloads /
Products / Security locks

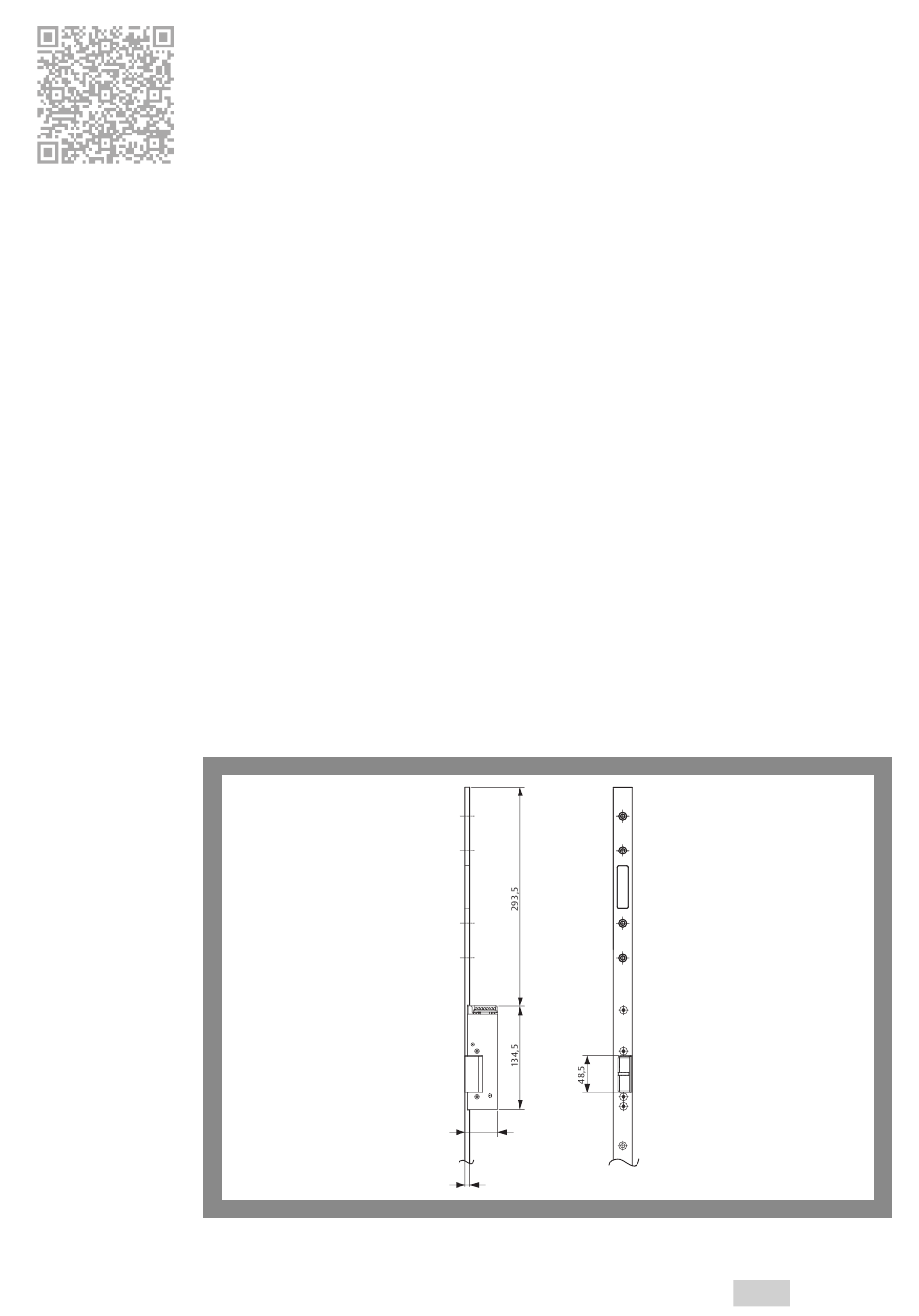

Pic. 15 :
Striking plate with
integrated

escape door strike 331U

Accessories

Accessories
Striking plates
The striking plates are available as a 3-piece striking plate, standard striking plate (continuous, Abb. 18) and
striking plate with integrated escape door strike 331U (Pic. 15).

Standard striking plate (continuous)

effeff locking plate, continuous, length 1760 mm, thickness 2 mm, stainless steel
effeff locking plate, continuous, length 1760 mm, thickness 3 mm,
chrome-plated steel
effeff locking plate, continuous, length 1760 mm, thickness 6 mm,
chrome-plated steel
Striking plate with integrated escape door strike 331U
effeff – striking plate, 3 mm, DIN left hand
effeff – striking plate, 3 mm, DIN right hand
effeff – striking plate, 6 mm, DIN left hand
effeff – striking plate, 6 mm, DIN right hand

Loose striking plates prepared for escape door strike 331U

(suitable for multi-point locks with latch lock 807-10, Pic. 19)
effeff – striking plate, 3 mm, DIN left hand
effeff – striking plate, 3 mm, DIN right hand
effeff – striking plate, 6 mm, DIN left hand
effeff – striking plate, 6 mm, DIN right hand
42,2
2/3/6 mm
8 1 9 Z B S 1 7 6 2 S B L 0 0
8 1 9 Z B S 1 7 6 3 S B L 0 0
8 1 9 Z B S 1 7 6 6 S B L 0 0
3 3 1 U 8 0 – 6 0 8 4 8 F 9 4
3 3 1 U 8 1 – 6 0 8 4 8 F 9 5
3 3 1 U 8 0 – 6 0 9 4 8 F 9 4
3 3 1 U 8 0 – 6 0 9 4 8 F 9 5
– – – – – – – 6 0 8 4 8 – 0 4
– – – – – – – 6 0 8 4 8 – 0 5
– – – – – – – 6 0 9 4 8 – 0 4
– – – – – – – 6 0 9 4 8 – 0 5
