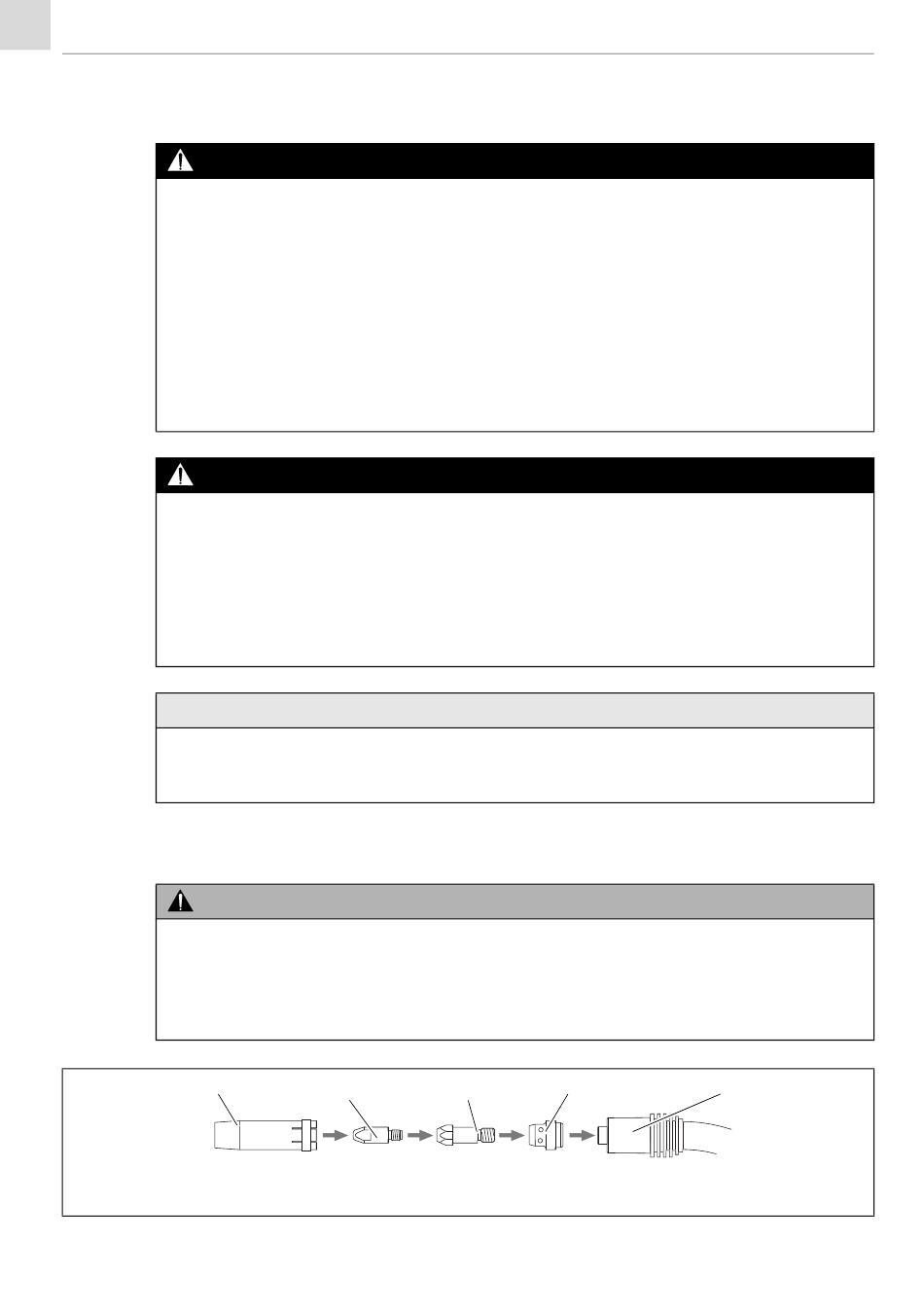

4 Putting into operation

4 Putting into operation
DANGER
Risk of injury due to unexpected start-up
The following instructions must be adhered to throughout all maintenance, servicing,
assembly, disassembly and repair work:
• Switch off the power supply.
• Close the gas supply.
• Close the coolant supply.
• Close the compressed air supply.
• Disconnect all electrical connections.
• Switch off the entire welding system.
DANGER
Risk of injury and machine damage when handled by unauthorised persons
Improper repair work and modifications to the product may lead to serious injuries and
damage to the device. The product warranty will be rendered invalid if the unit is handled by
unauthorised persons.
• Operating, maintenance, cleaning and repair work may only be carried out by qualified
personnel (in Germany see TRBS 1203).
NOTICE
• Please take note of the following instructions:
 3 Product description on page EN-4
4.1 Equipping the torch
CAUTION
Risk of injury
Puncture or cut-in wounds may be caused by the wire electrode.
• Keep your hands out of the danger zone.
• Wear the correct protective gloves.
1
1 Gas nozzle
2 Contact tip
Fig. 1 Type 61GD/610D
EN - 6
2 3
3 Tip adaptor
4 Gas diffuser
MAG Welding torches
4 5
5 Torch neck
BAL.0147 • 2018-11-09
