Warnings
3. Installation

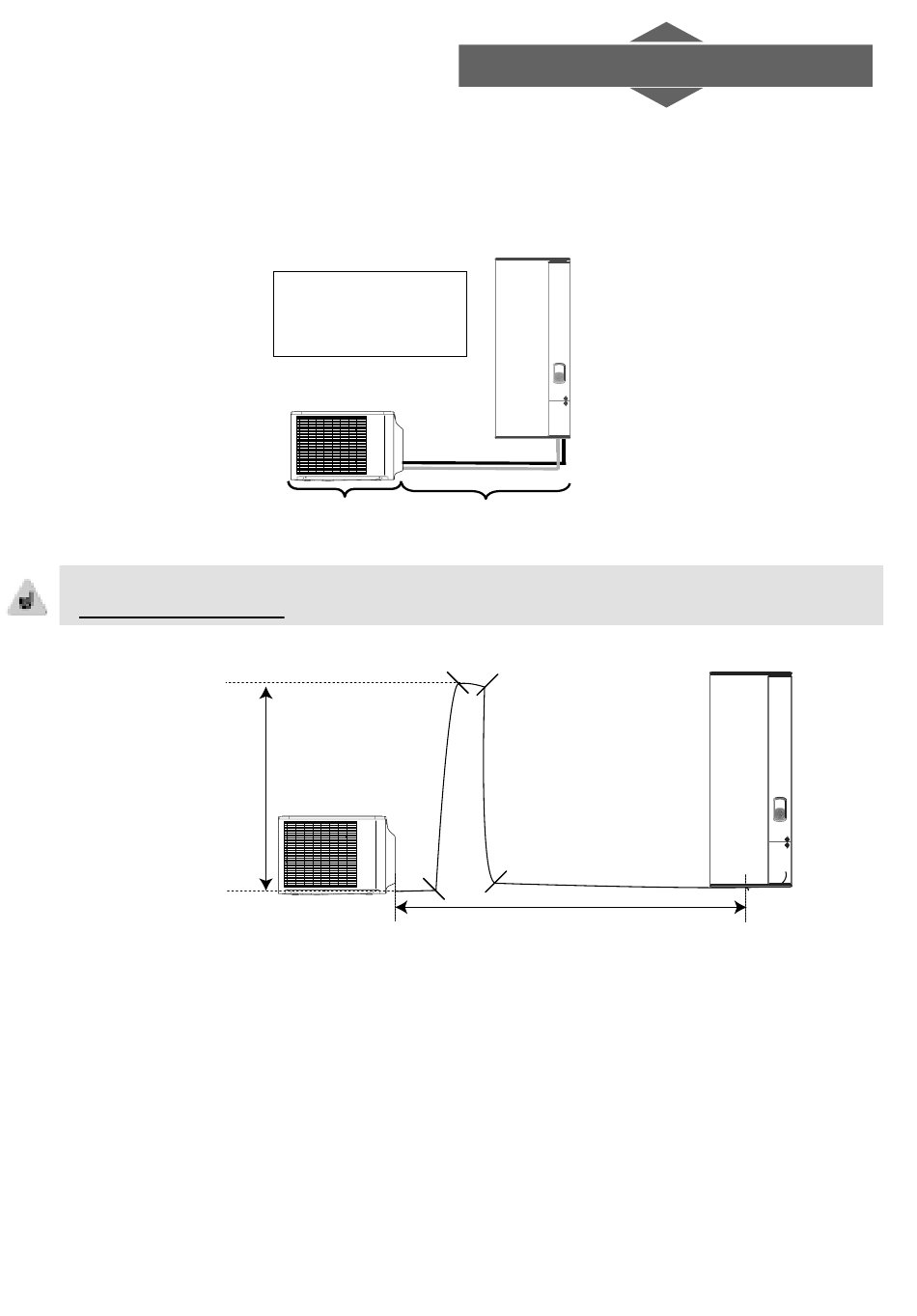

3.1. Selecting the installation site
The refrigerant line between the outside unit and the water heater must be
between 5 and 20 m in length and must not exceed 15 m in elevation.
Highest point
in the circuit
15 m maximum
elevation
Lowest point
in the circuit
280 280
IMPORTANT: The refrigerant
line between the outside unit
and the water heater must not
exceed 20 m in length or 15 m
in elevation.
Outside unit pre-charged Flush the refrigerant line and the
with 0.7 kg of R32 water heater with a vacuum pump
before putting the device into service
L2
L1
Installation
L3
L4
L5
Connection lenght (min.: 5 m)
= L1 + L2 + L3 + L4 + L5 ≤ 20 m
Installation example
