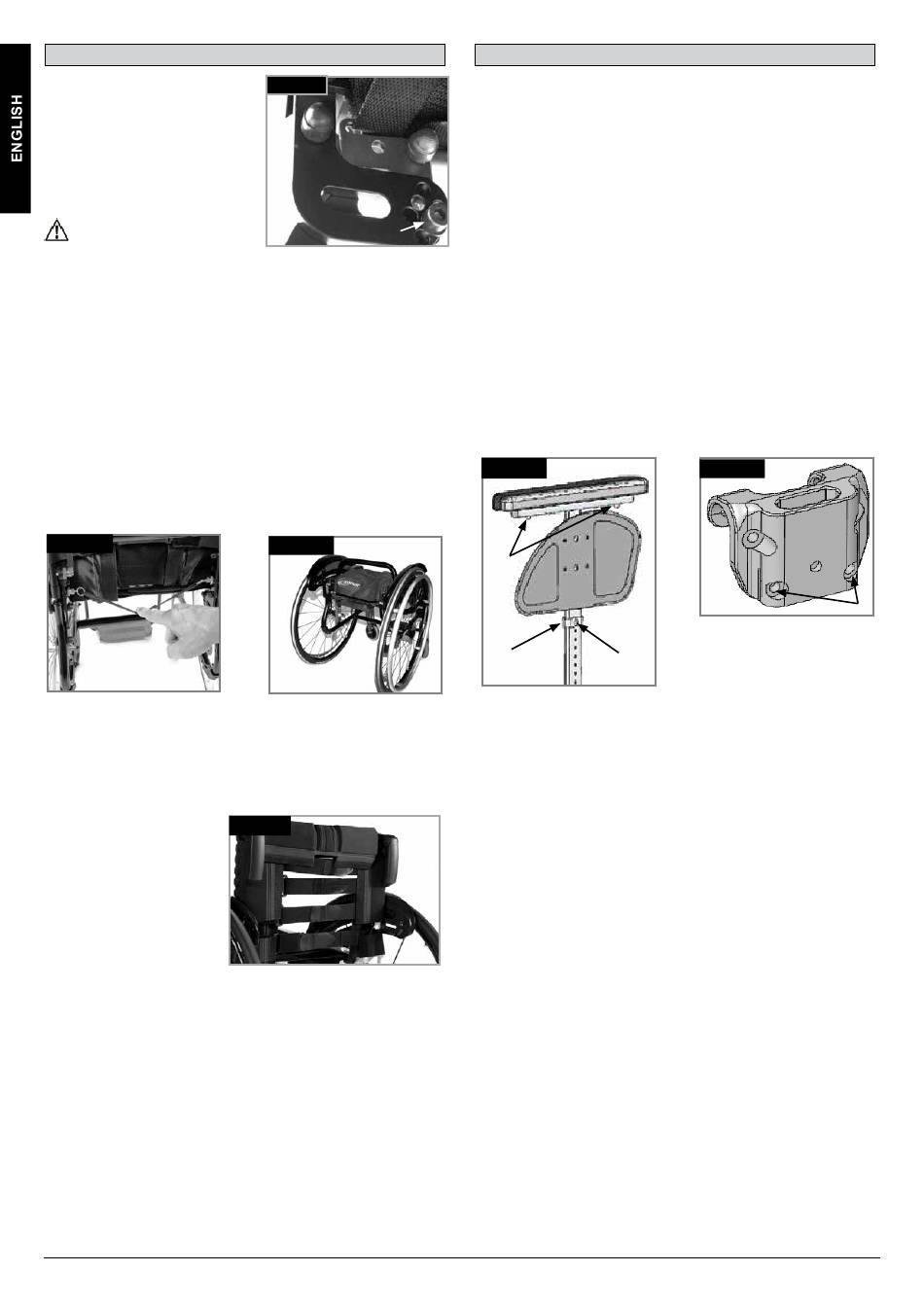

Angle Adjustable Backrest

Angle-adjustable fixed back, (Fig.
6.27)
To adjust the backrest:
Remove studs "A", on both
sides.
Swivel the brackets to the
desired position.
Refit the studs "A" and tighten.
CAUTION!
All screws must be refitted and tightened correctly to avoid
unexpected movement leading to loss of the angle setting.
Folding Backrest
Release the backrest by pulling the cord and at the same time,
pushing it forward to fold it down. To return the backrest to the
original position, pull it back as far as possible untill it locks into
position on both sides, (Fig. 6.27.1 - 6.27.2).
Fig. 6.27.1
Adjustable back sling
The adjustable back-sling
can be adjusted for tension
by using several straps.
(Fig. 6.28).
26
Fig. 6.27
A
Fig. 6.27.2
Fig. 6.28

Sideguards

Height-adjustable armrests, (with tools).
Installation: Slide the arm post into the receiver, located on the
wheelchair frame, until it stops
Height adjustment:
Slide the armrest post out of the receiver.
Adjust the position of the height adjustment bracket (1) by
removing the screw (2) and moving it to the desired posiion.
Re-fit the screw and tighten it.
Slide the armrest post back into the receiver, (Fig. 6.29).
Armpad Position:
The armpad position can be adjusted by releasing the screws
(3), then moving the arm pad to the desired position. Re-tighten
the screws, (Fig. 6.29).
Adjusting Armrest Receiver
The tightness of the armrest receiver can be adjusted
(tightened/loosened) by means of the 2 screws (1) - (Fig. 6.30).
Fig. 6.29
3
1
2
Fig. 6.30
1
