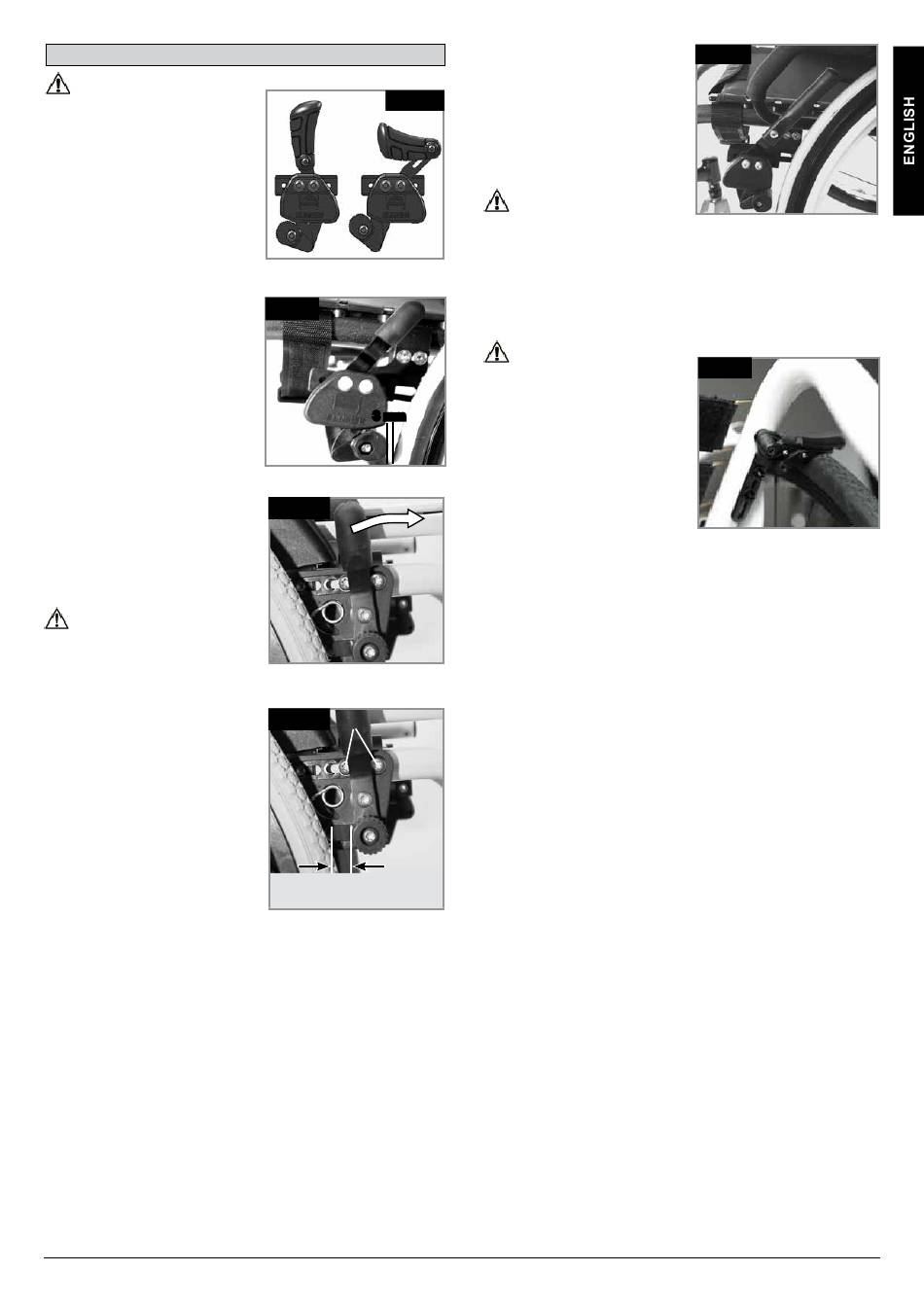

Brakes
CAUTION!
Braking power can be
affected by incorrect fitting and
adjustment of the brakes, as well
as tyre pressure which is too low.
Wheel Locks
Your wheelchair is equipped with
two wheel locks. They are applied
directly against the tyres. To
engage, press both wheel lock
levers forward against the stops. To release the locks, pull the
levers back to their original positions.
Braking power will decrease with:
• Worn tyre tread
• Tyre pressure that is too low
• Wet tyres
• Improperly adjusted wheel locks.
The wheel locks have not been
designed to be used as brakes for
a moving wheelchair. The wheel
locks should therefore never be
used to brake a moving wheelchair.
Always use the handrims for
braking. Make sure that the
interval between the tyres and
wheel locks complies with given
specifications. To readjust, loosen
screw and set the appropriate
interval. Then re-tighten the screw
(Fig. 6.3 and 6.4).
CAUTION!
After each adjustment of the rear
wheels, check the interval to the
wheel locks and readjust if
necessary.
Life RT Rev.E
Fig. 6.3
Fig. 6.4
3 mm
Fig. 6.4.1
Standard brake
Fig. 6.4.2
1
12mm with solid tyres
14mm with pneumatic tyres
Standard brake
Brake lever extension
The longer lever helps to
minimize the effort needed to set
the wheel locks.
The brake lever extension is
screwed to the brakes. By
raising this, it can be flipped
forward
(Fig. 6.5).
CAUTION!
Mounting the wheel lock too close towards the wheel will result
in a higher effort to operate. This might cause the brake lever
extension to break!
Leaning onto the brake lever extension while transferring will
cause the lever to break! Splashing water from tyres might
cause the wheel lock to malfunction.
CAUTION!
Incorrect mounting of the wheel
lock will result in a higher effort
to operate.
This might cause the wheel lock
extension lever to break!
Compact Wheel Lock
Compact wheel locks are
underneath the seat sling and
are operated by pulling the
wheel locks towards the rear, in
the direction of the tyre. For the brakes to work properly, this
must be pulled until it reaches the stops, (Fig. 6.6).
Fig. 6.5
Fig. 6.6
21
