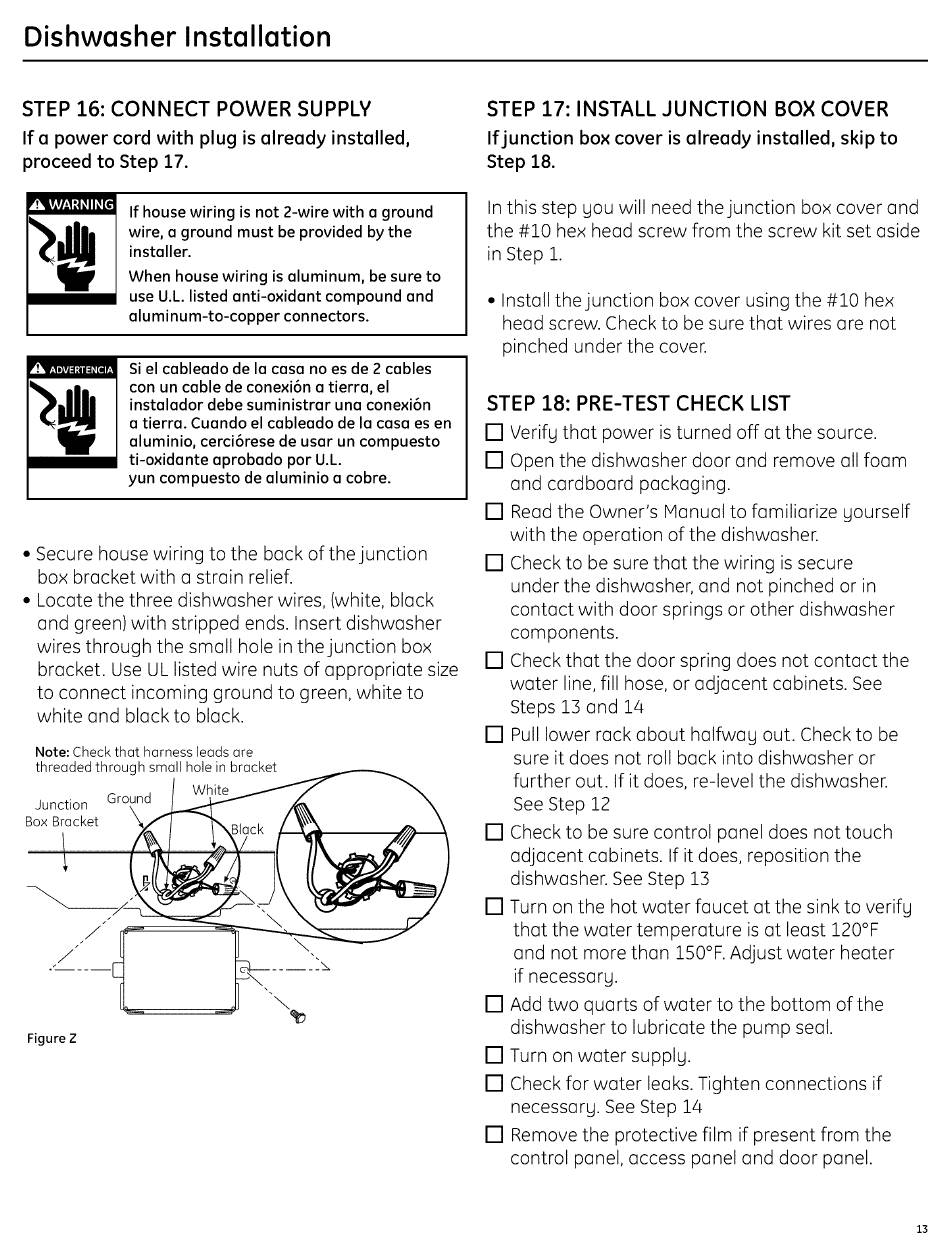

Dishwasher Installation
STEP 16: CONNECT POWER SUPPLY
If a power cord with plug is already installed,
proceed to Step 17.
If house wiring is not 2-wire with a ground
wire, a ground must be provided by the
installer.
When house wiring is aluminum, be sure to
use U.L. listed anti-oxidant compound and
aluminum-to-copper connectors.
Si el cableado de la casa no es de 2 cables
con un cable de conexi6n a tierra, el
instalador debe suministrar una conexi6n
a tierra. Cuando el cableado de la casa es en
aluminio, cerci6rese de usar un compuesto
ti-oxidante aprobado por U.L.
yun compuesto de aluminio a cobre.
• Secure house wiring to the bock of the junction
box brocket with o stroin relief.
• Locote the three dishwosher wires, (white, block
ond green) with stripped ends. Insert dishwosher
wires through the smotl hole in the junction box
brocket. Use UL listed wire nuts of oppropriote size
to connect incoming ground to green, white to
white ond block to block.
Note: Check thot horness leods ore
threoded through smoll hole in brocket
White
Junction Ground
Box Brocket
Figure Z
\
STEP 17: INSTALL JUNCTION BOX COVER
If junction box cover is already installed, skip to
Step 18.
In this step you will need the junction box cover ond
the #10 hex heod screw from the screw kit set oside
in Step 1.
• Instotl the junction box cover using the #10 hex
heod screw. Check to be sure thot wires ore not
pinched under the cover.
STEP 18: PRE-TEST CHECK LIST
[] Verify thut power is turned off ut the source.
[] Open the dishwasher door and remove all foum
und cordbourd puckuging.
[] Reod the Owner's Munuul to fumiliurize yourself
with the operution of the dishwusher.
[] Check to be sure thut the wiring is secure
under the dishwusher, und not pinched or in
contuct with door springs or other dishwusher
components.
[] Check thut the door spring does not contuct the
wuter line, fill hose, or udjucent cubinets. See
Steps 13 ond :]_4
[] Pull lower rock obout holfwoy out. Check to be
sure it does not roll bock into dishwosher or
further out. tf it does, re-level the dishwosher.
See Step :]_2
[] Check to be sure control ponel does not touch
odjocent cobinets. If it does, reposition the
dishwosher. See Step 13
[] Turn on the hot woter foucet ot the sink to verify
thot the woter temperoture is ot leost :]_20°F
ond not more thon :]_S0°F. A djust woter heoter
if necessory.
[] Add two quorts of woter to the bottom of the
dishwosher to lubricote the pump seol.
[] Turn on woter supply.
[] Check for woter leoks. Tighten connections if
necessory. See Step :]_4
[] Remove the protective film if present from the
control ponel, occess ponel ond door ponel.
13
