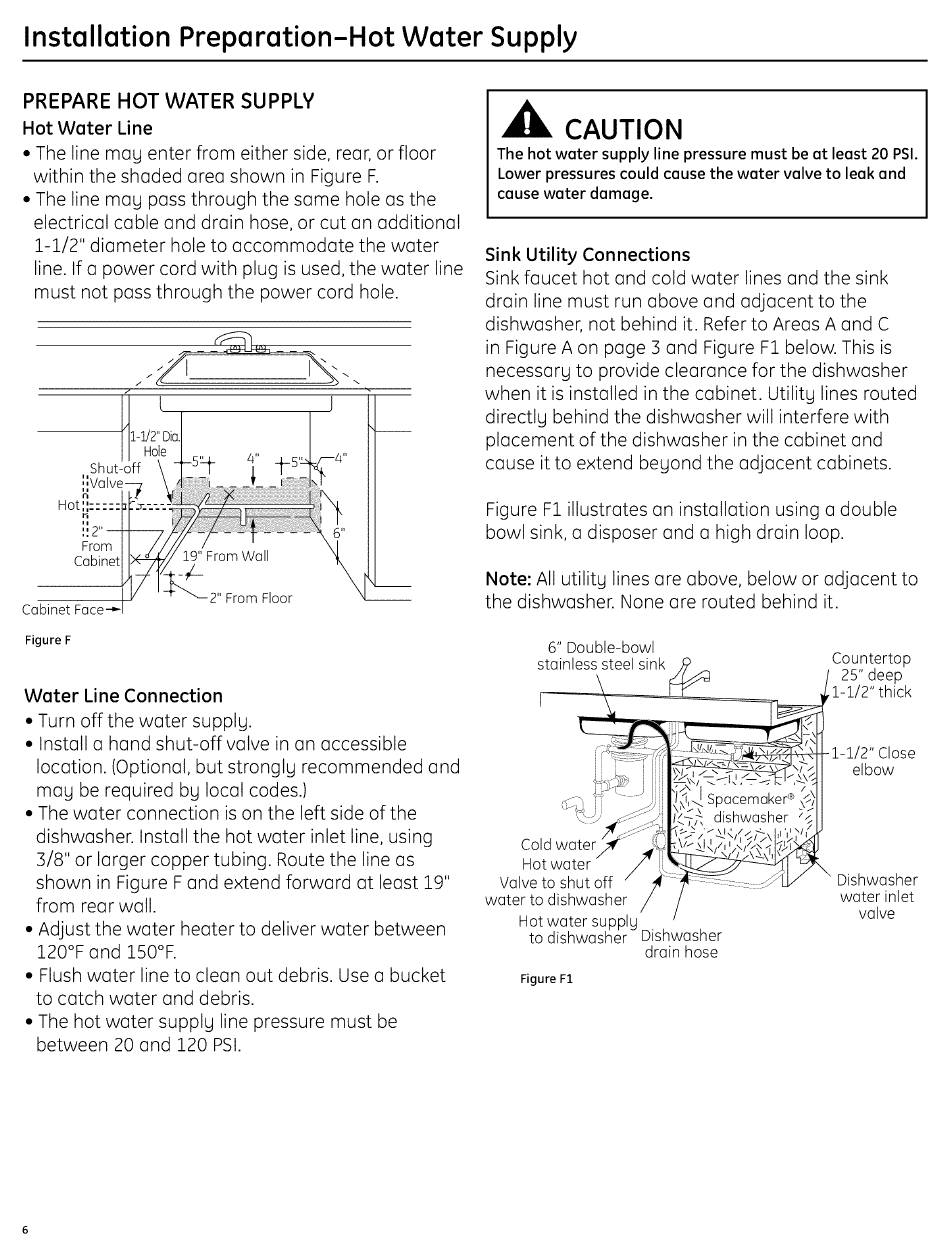

Installation Preparation-Hot Water Supply
PREPARE HOT WATER SUPPLY
Hot Water Line
• The line may enter from either side, rear, or floor
within the shaded area shown in Figure F.
• The line mag pass through the same hole as the
electrical cable and drain hose, or cut an additional
1-1/2" diameter hole to accommodate the water
line. tf a power cord with plug is used, the water line
must not pass through the power cord hole.
/
Shut-off
ii
_Valvc
Hot_:::::
II
',',2"--
From
Cabinet
Cabinet Face-'-
Figure F
19" From Wall
2" From Floor
Water Line Connection
• Turn off the water supplg.
• Install a hand shut-off vatve in on accessible
location. (Optional, but strongtg recommended and
mag be required bg local codes.)
• The water connection is on the left side of the
dishwasher. Install the hot water inlet line, using
3/8" or larger copper tubing. Route the line as
shown in Figure F and extend forward at least 19"
from rear wall.
• Adjust the water heater to deliver water between
120°F and 150°F.
• Flush water line to clean out debris. Use a bucket
to catch water and debris.
• The hot water supplg line pressure must be
between 20 and 120 PSt.
CAUTION
The hot water supply line pressure must be at least 20 PSI.
Lower pressures could cause the water valve to leak and
cause water damage.
Sink Utility Connections
Sink faucet hot and cold water lines and the sink
drain line must run above and adjacent to the
dishwasher, not behind it. Refer to Areas A and C
in Figure A on page 3 and Figure F1 below. This is
necessarg to provide clearance for the dishwasher
when it is installed in the cabinet. Utilitg lines routed
directlg behind the dishwasher will interfere with
placement of the dishwasher in the cabinet and
cause it to extend begond the adjacent cabinets.
Figure F1 illustrates an installation using a double
bowl sink, a disposer and a high drain loop.
Note: All utilitg lines are above, below or adjacent to
the dishwasher. None are routed behind it.
6" Double-bowl
__1 Countertop
/ 25" deep
_,1-1/2" thick
i
-1-1/2" Close
_ _ elbow
acemaker ce S ;II
_..' __., _ ir,, _'-- _ i
Cold wa "_ _;' '
Hotwate__
Valve to shut off Dishwasher
water to dishwasher water inlet
Hot water supplg valve
to dishwasher Dishwasher
drain hose
Figure
FI
