Dishwasher Installation
STEP 20: REPLACE ACCESS PANEL AND
TOEKICK
In this step you will need the panels and the two
screws set aside in Step 4.
There are two tgpes of screws used. The 8-32 x 1/4"
screws are used at the top of the access panel and
should still be in place. The 20-16 x 3/8" screws are
used at the bottom of the access panel and secure
both the access panel and toekick.
STEP 21: LITERATURE
[] Leave the Owners' Manual, Installation
Instructions, samples, and/or coupons with
consumer.
IMPORTANT
-
screws
are not
interchangeable.
To prevent
damage
to your
dishwasher,
use the proper
screw
in the proper
location.
Do not mix screw
types
or lengths.
• Place the toekick
against
the legs of the
dishwasher.
• Remove
the two 8-32 x 1/4" machine
thread
screws.
• Align the access panel to the dishwasher.
• Select the two 8-32 x 1//4" machine thread screws
just removed and insert them through the top
holes in the access panel and into the dishwasher
frame.
• Tighten these screws.
• Align the toekick and make sure the bottom edge
is against the floor.
• Insert and tighten the two 10-16 x 3/8" sheet metal
thread screws, making sure the bottom edge of
the toekick stags in contact with the floor.
Remove, then Reinstoll ond Tighten
8-52 x 1//4"
Mochine Threod Screws
Instoll ond Tighten ....
10-16 x 5/8"
Sheet Metol Threod Screws

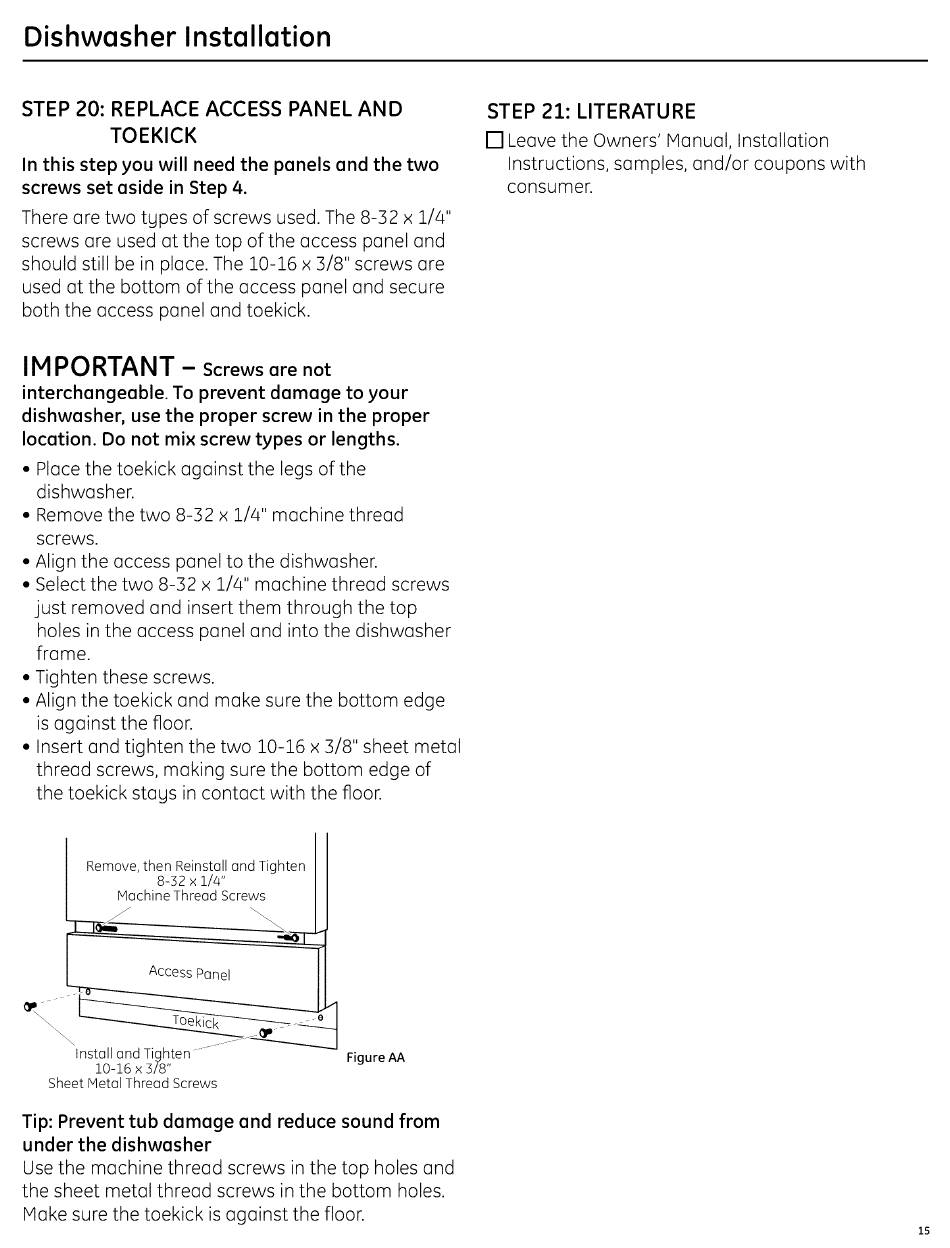

Figure AA
Tip: Prevent tub damage and reduce sound from
under the dishwasher
Use the machine thread screws in the top holes and
the sheet metal thread screws in the bottom holes.
Make sure the toekick is against the floor.
