9.3.3 Greasing the telescopic column

To grease the telescopic columns, use a WD40 type lubricant spray, to be applied to the metal parts to facilitate the sliding of the
various sections during the column raising and lowering operations. In case of frequent use, carry out this operation every three
months.

9.3.4 Greasing the hoists

The hoists are greased in the manufacturing phase by the manufacturer, but it is still recommended to grease certain parts
These operations must only be carried out with the column in the rest position.
Important
Remove the control shaft handle (fig. 9.2, ref. 2) by unscrewing the hexagonal nut (fig. 9.2, ref. 1)
Remove the protective covers after removing the screws (fig. 9.2, ref. 3)
Grease the drum hub (fig. 9.2, ref. 4), the control shaft ring (fig. 9.2, ref. 5), the toothed gear (fig. 9.2, ref. 6) and the crank handle thread (fig.
9.2, ref. 7)
After completing all the greasing operations, refit all the parts in the reverse order of removal.
NB: The tightening torque to be applied for the control shaft handle mounting screw is 15 Nm.
Never oil or grease the brake mechanism.
Important
3 3
2 1

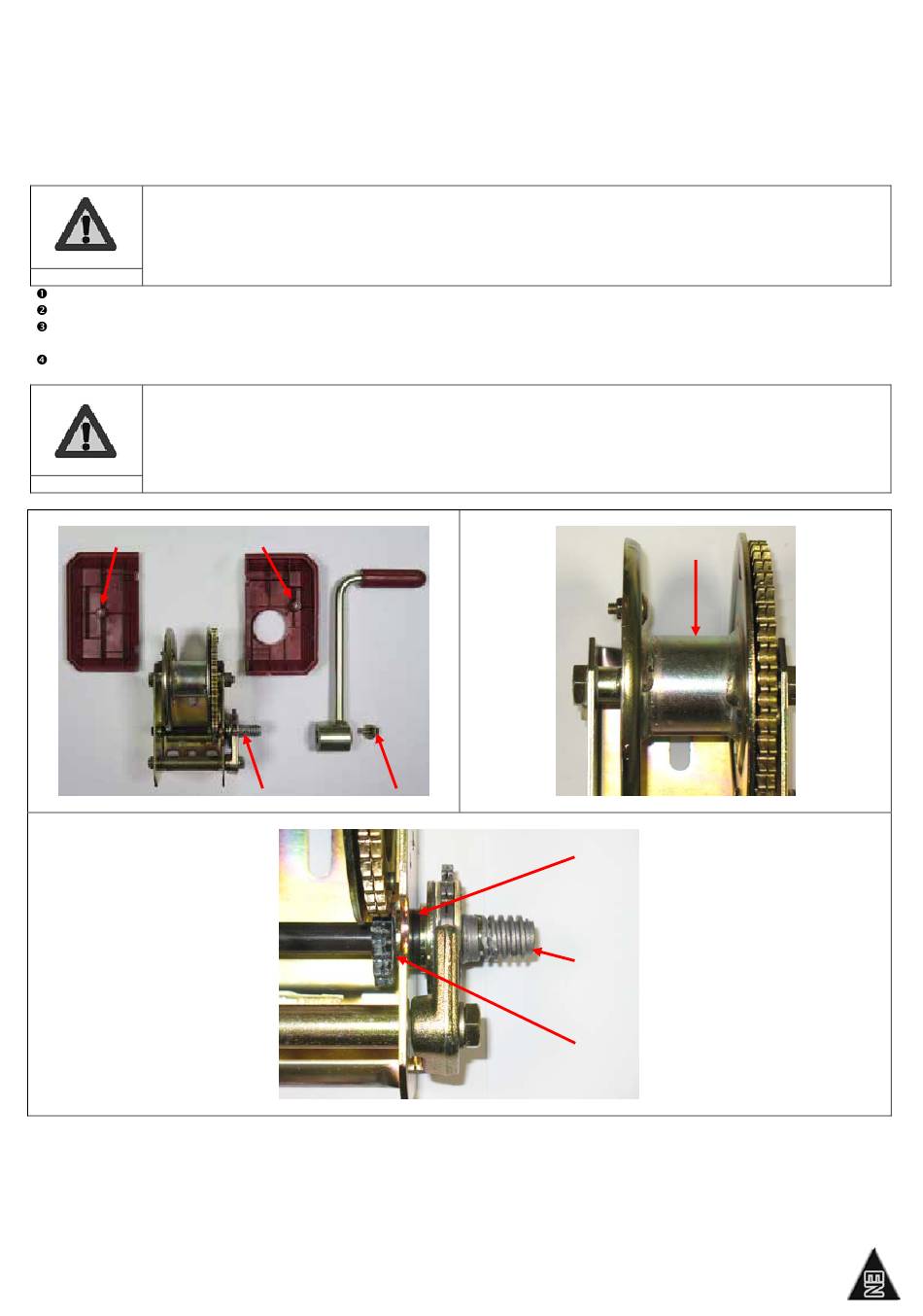

Figure 9.2 – Hoist greasing
5
7
6
