Hygienic Weighing Module Contego®
•
Position the vessel on the foundation (8).
•

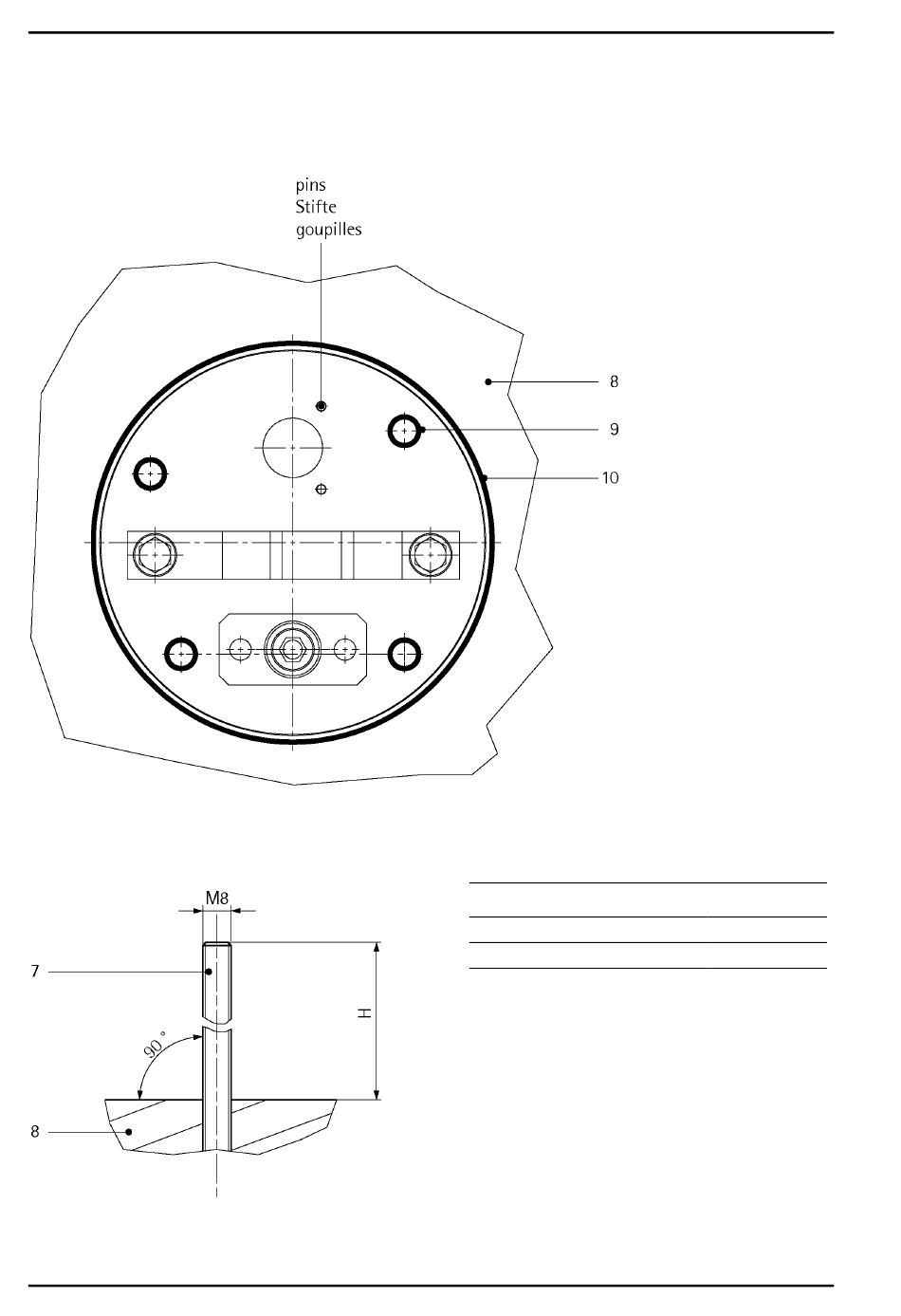

Mark the boreholes (9) and the seating (10) (outline) of the lower plate on the foundation (8), see
figure.
Shown without upper plate and load cell
•
Lift the vessel.
•
Make the borings for the threaded pins/stud bolts (7).
•
It is indispensable to insert the threaded pins/stud bolts (7) vertically with the required height 'H'.
EN-18
Installation Manual
without adaptor plate
with adaptor plate
H
35 mm
75 mm
