WIRING CONNECTION

The two power wires RED & BLACK should be connected after placing & set the camera and monitor.
BLACK wire
Permanent GROUND of the vehicle (a ring cable lug
allows to be directly connected to the vehicle ground pad)
RED wire
To connect the +12 V reverse light. This original wire delivers
+12 V when the reverse lamp lights (reverse gear engaged).
The connection of these two wires is usually at the rear but
can also be done on the front • See page 5 general diagramm :
• Connector C between B & C connections at the rear (+ common)
• Connector C between A & B connections on the front (+ rare)
WARNING • VEHICLES NOT ALLOWING AN EXTRA POWER
CONSUMPTION ON REVERSE LIGHT
On some vehicles, the +12 V Reversing light is noisy when the engine is running that may
interfere with proper operation of the parking sensors or reversing camera kit.
In other cases, +12 V Reversing light allows no additional power consumer.
For these vehicles, BEEPER has developed the RCANR2 module to retrieve information
+12V Reversing light from the CANBUS network. This module connects to the CANBUS
compatible carrier and can deliver a +12 V Reversing light for connecting a parking sensor
or a backup camera
Ref : RCANR2, more info & list of compatible cars, please follow the link :
http://www.beeper.fr/radar-camera-de-recul/rcanr2.php

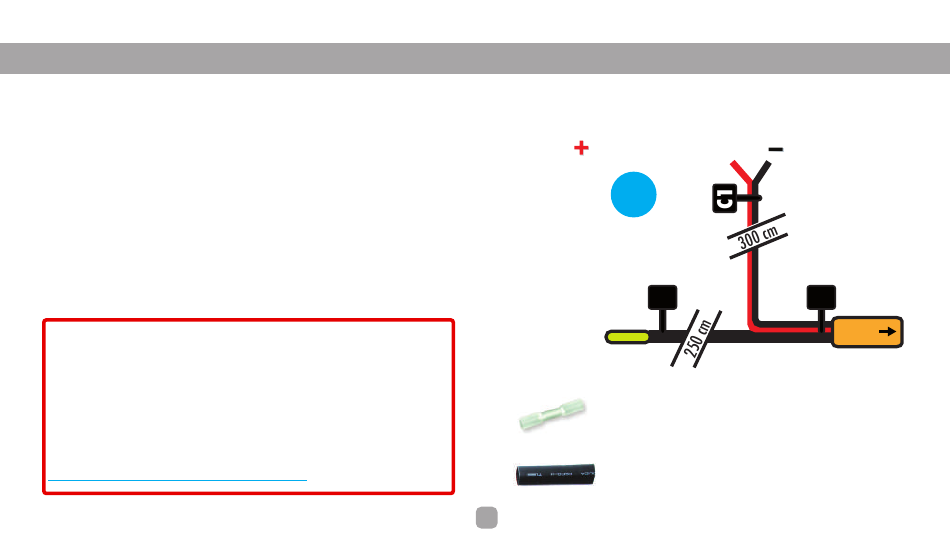

12V Reverse light
C
POWER CABLE
(Ref : RX-W75-FS2)
C2
To Monitor
The shrink butt connector is used to ensure proper
connection of +12 V reverse light.
The shrink sleeve will ensure you seal the connection.
27
Ground
C3
To camera
