WIRING CONNECTION

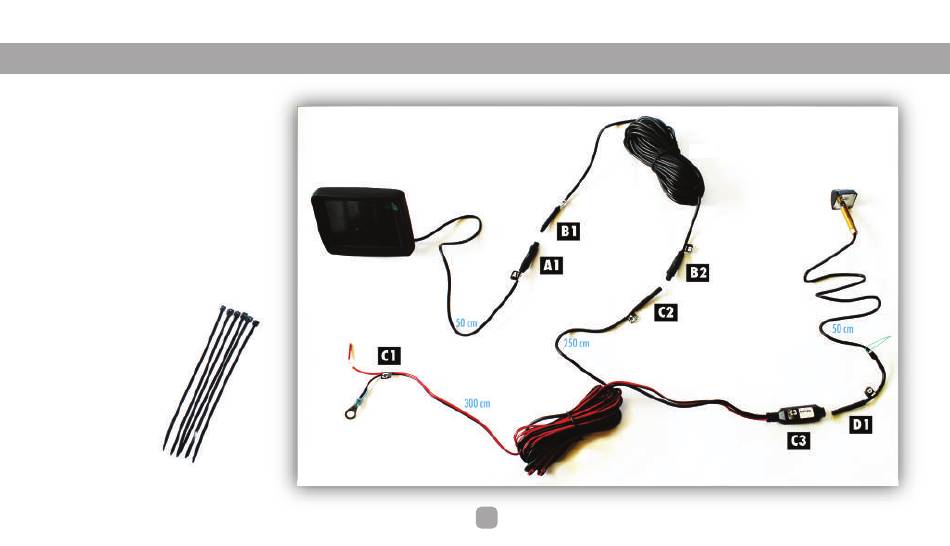

The connection of the various components
of the kit is done as shown in the diagram
below cons.
A1 to B1
Monitor <> Extension cable
Ext. cable <> Power cable B2 to C2
C3 to D1
Power cable <> Camera
C1 to VEHICLE
Power cable <> Vehicle
Wiring must be properly
secured with the clamps
provided in the kit, they
should not interfere with
the driver and not risk
an involuntary
disconnection.
28
400 cm
