CAMERA INSTALLATION

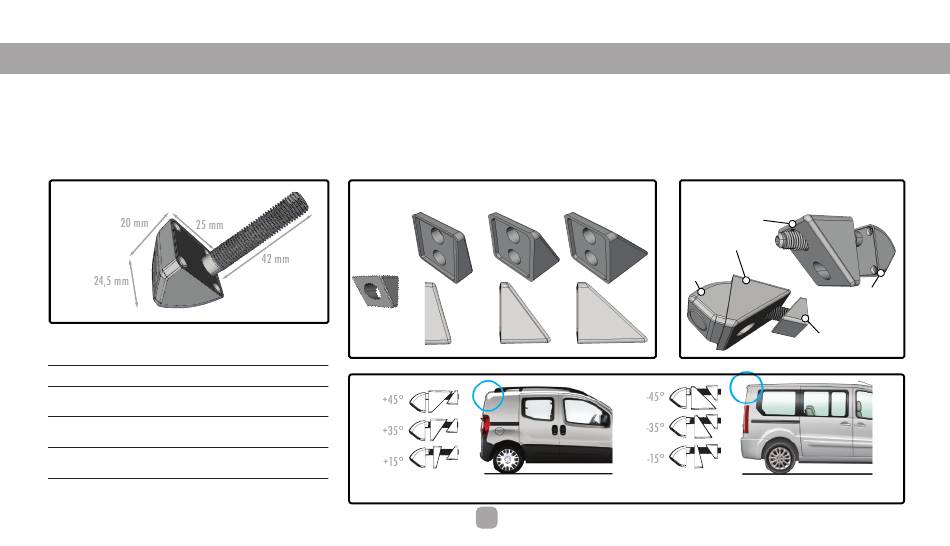

HOW TO USE THE SPACERS
Included spacers if necessary to correct any curves or corners of the car body. 3 spacers angle correction are provided (#2 = 15 °, #3 = 35 °, #4 = 45 °), they can be used in
positive or negative angle (see diagram below). The counter-spacer #1 ° 35 corrects the angle within the body in order to screw the nut on the threaded rod. Here are some
examples of commercial vehicles brand PEUGEOT & CITROEN.
CAMERA
PEUGEOT CITROEN cars
Angle
Bipper / Nemo
31°
Berlingo III / Partner III
35°
(regular vehicle)
Jumpy III / Expert III
- 45°
(regular vehicle)
Jumpy III / Expert III
37°
(short commercial vehicle)
Jumpy III / Expert III
17°
(long commercial vehicle)
4 SPACERS SET
Counter
Spacer
35°
N°2
N°1
15°
Spac
35°
35°
45°
35°
POSITIVE BODY ANGLE
15°
N°3
N°4
45°
35°
8
24
INSERTION ON CAMERA
Spacer to correct
the curves and and
corners of the body
Camera
Camera
Counter spacer 35°
NEGATIVE BODY ANGLE
