CAMERA INSTALLATION
After determining the optimal location of the camera, drill a hole with a diameter of 8 mm for the passage of the threaded rod.
We advise you to protect the body of an adhesive (adhesive type painter) so as not to damage your body when drilling. A light
sanding may be required after drilling the hole for trimming the edge of the hole.
Insert the spacer selected if necessary,
pass the wire through the hole. Insert
the counter spacer, washer & nuts.
Screw onto the threaded rod, tightening
of the nut 1 is recommended to 0.75
nm, tightening of the nut 2 is 1 Nm for
the stability of the camera and prevent
its rotation.

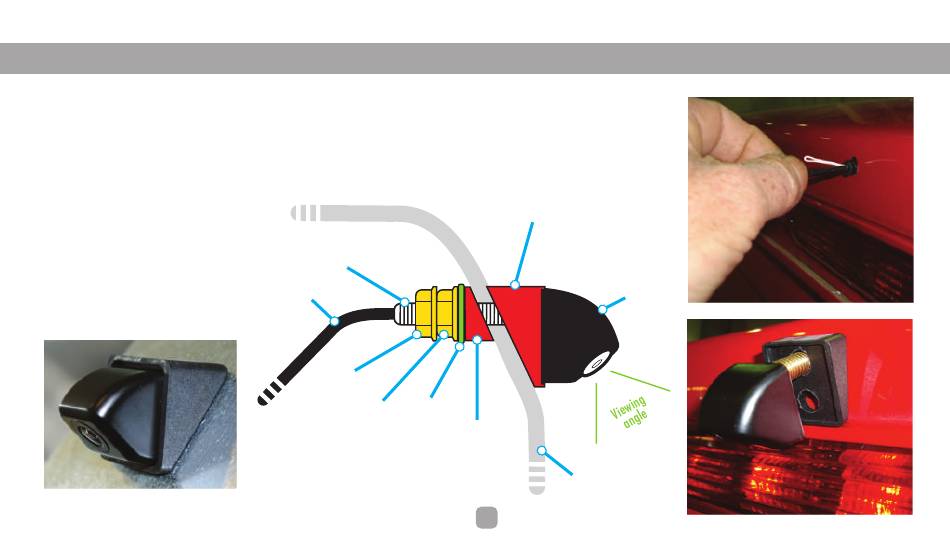

Threaded rod
Camera cable
Nut 2
Tightening 1 Nm
Nut 1
Washer
Tightening 0,75 Nm
Counter spacer #1 (35°)
either #2 (15°)
(
either #3 (35°)
Spacer to be
either #4 (45°)
defined
Camera
Car body
