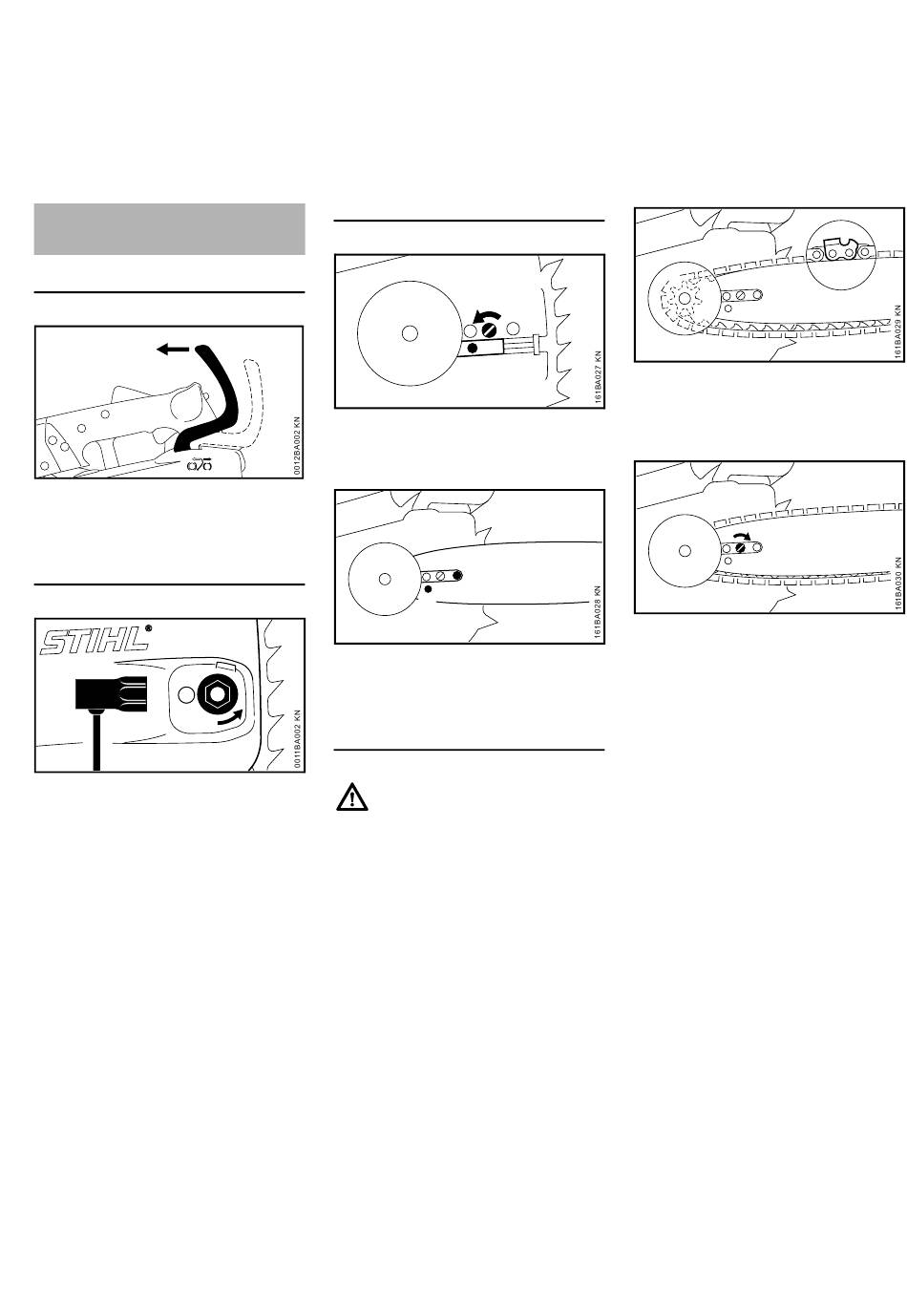

Mounting the Bar and Chain

Releasing the chain brake
H
L
Pull hand guard towards the front
N
handle until it engages audibly –
chain brake is released
Removing the chain sprocket cover
2
1
Turn the captive nut (1) to the left
N
until it hangs loosely in the chain
sprocket cover
Remove the chain sprocket
N
cover (2) with captive nut
MS 201 T
Fitting the guide bar
1
2
Turn screw (1) to the left until the
N
tensioner slide (2) butts against the
left end of the housing slot
3
4
Fit the guide bar over the screw (3)
N
and engage the peg of the tensioner
slide in the locating hole (4)
Fitting the saw chain
Put on protective gloves – risk of injury
by the sharp cutters!
1
Fit saw chain around the sprocket
N
wheel (1) and over the guide bar –
the cutting edges of the teeth must
point to the right
2
Turn screw (2) to the right until there
N
is very little chain sag on the
underside of the bar – and the drive
link tangs engage in the bar groove
English
11
