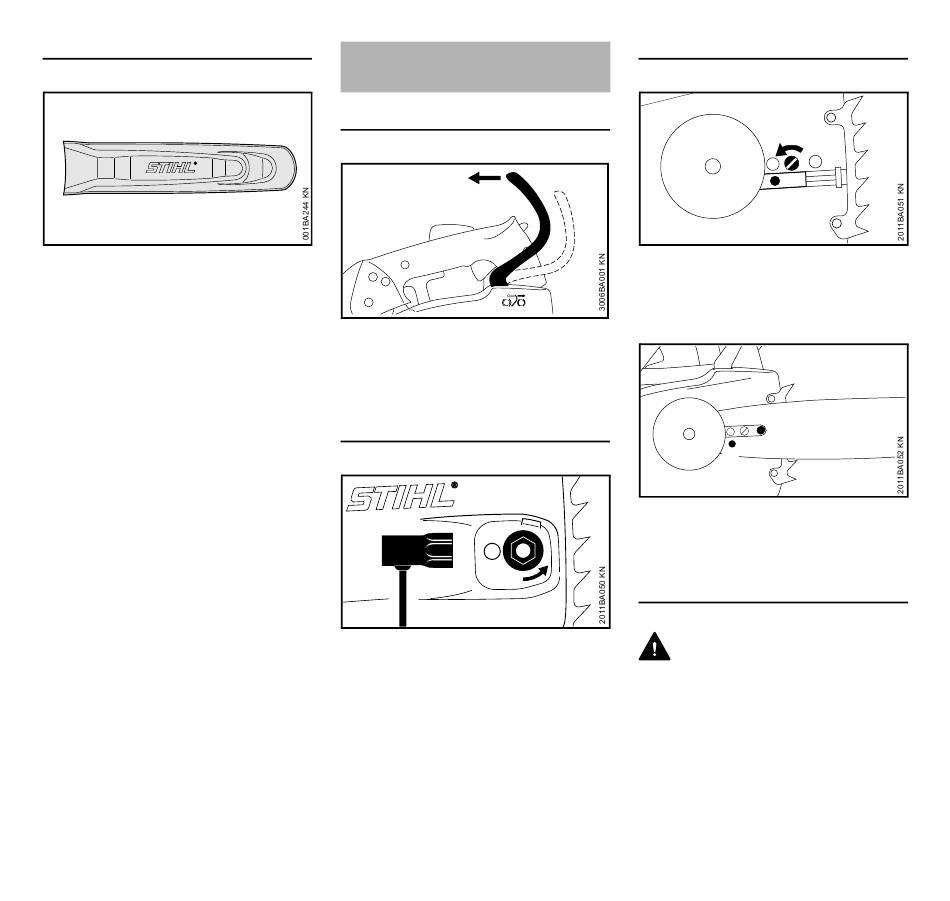

Chain Scabbard
Your saw comes standard with a chain
scabbard that matches the cutting
attachment.
If guide bars of different lengths are
mounted to the saw, always use a chain
scabbard of the correct length which
covers the complete guide bar.
The length of the matching guide bars is
marked on the side of the chain
scabbard.
12

Mounting the Bar and Chain

Disengaging the Chain Brake
Pull the hand guard towards the
N
front handle until there is an audible
click – the chain brake is
disengaged.
Removing the chain sprocket cover
2
1
Unscrew the nut (1) and remove the
N
sprocket cover (2).
Mounting the guide bar
1
2
Turn the screw (1)
N
counterclockwise until the tensioner
slide (2) butts against the left end of
the housing slot.
3
4
Fit the guide bar over the stud (3)
N
and engage the peg of the tensioner
slide in the hole (4).
Fitting the chain
WARNING
Wear work gloves to protect your hands
from the sharp cutters.
MS 150 TC
