FIELD TEST DEVICE sigfox RC2 - Guide utilisateur / User guide version V1.0.0

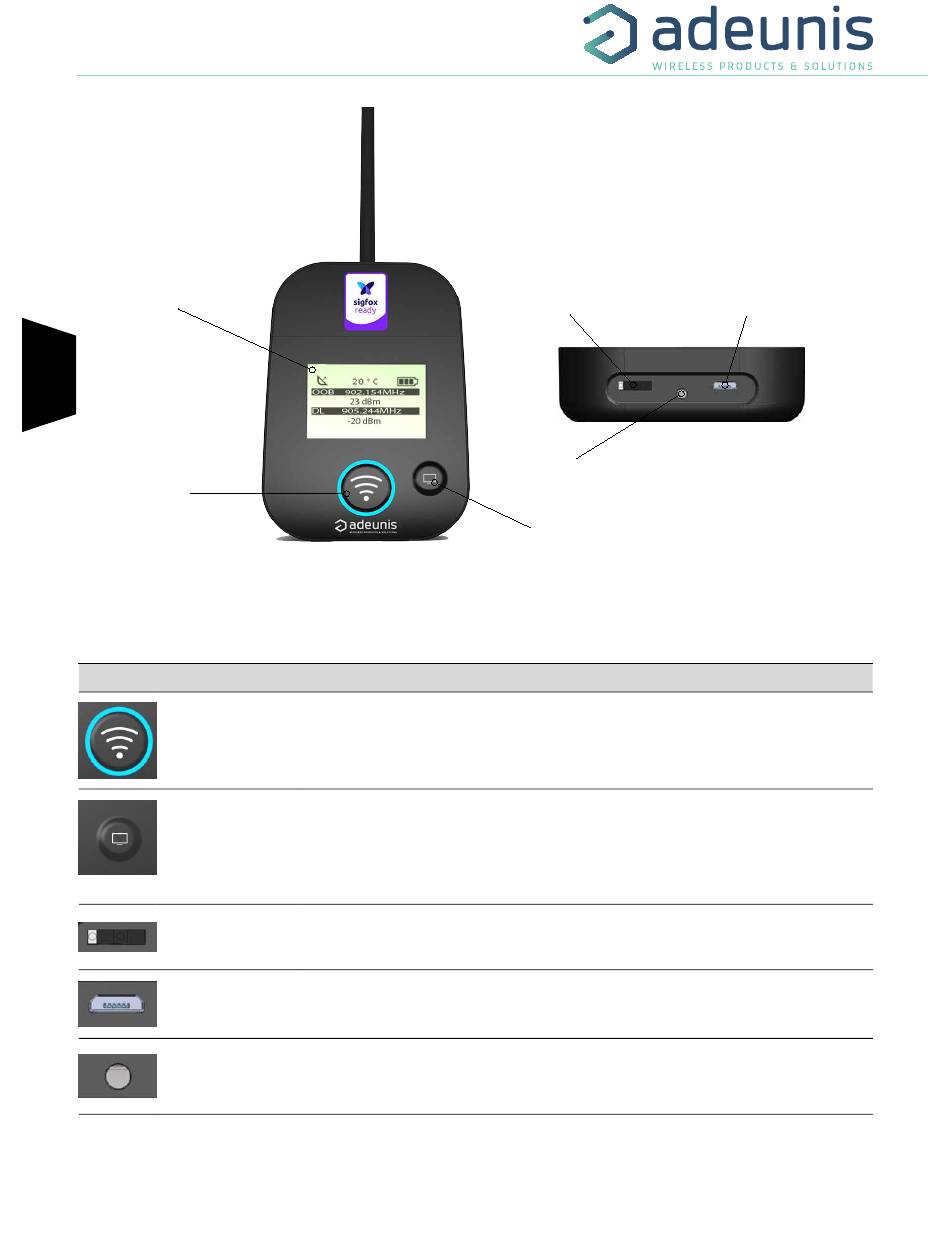

2. DEVICE DESCRIPTION

2.1. User interface

FR
LCD screen
EN
Pushbutton 1

2.2. Button description

Interface operation
Pushbutton 1
Pushbutton 2
ON/OFF Switch
Micro-USB connector
Charge indicator

2.3. Sensors description

The product also has two onboard sensors: a temperature sensor and an accelerometer. This one allows the transmission of an OOB frame
(SIGFOX frame) when a large vibration is detected (by shaking the device for example).
All manuals and user guides at all-guides.com
Figure 3 : Front view
This button allows you to carry out radio transmissions in manual mode. In the PER menu, a long
press will allow you to reset the counters to zero.
This button allows you to manage the LCD screen.
When the LCD backlight is switched off, pressing this button will switch on the backlight.
When the LCD backlight is switched on, each press will allow you to scroll through the different
screens available on this device.
The ON/OFF switch allows you to switch the device on or off. Moving the switch to the right will turn
the device on.
The micro-USB connector allows you to charge the device (see paragraph 1.4) or configure it (see
paragraph 3).
The charge LED shows you the device's charge status (see paragraph 1.4).
ON/OFF switch Micro USB connector
Figure 4 : rear view
Charge indicator
Push button 2
