FIELD TEST DEVICE sigfox RC2 - Guide utilisateur / User guide version V1.0.0

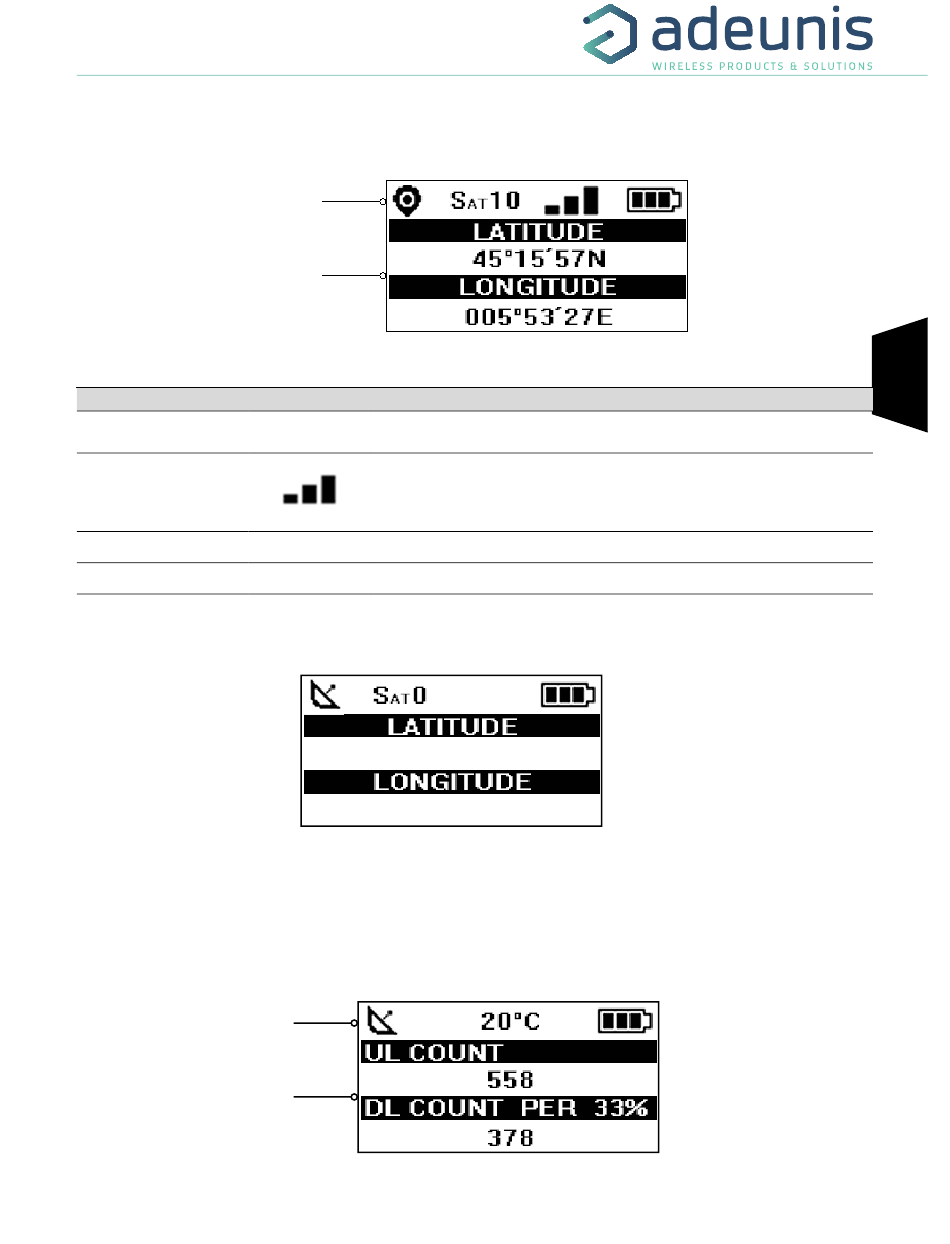

3.3. GPS screen

This screen can be accessed by briefly pressing on pushbutton 2 after the home screen. It will allow you to view the functioning information of
the GPS module, as well as the device's GPS positioning.
Statuts bar
GPS coordinates
Item
Number of Satellites
(Second on the left)
GPS signal
(Third on the left)
LATITUDE
LONGITUDE
When GPS has not yet been "fixed", no information on latitude or longitude will be displayed on the screen and the information icon will indi-
cate that GPS has not been synchronised.
If the device falls out of synchronisation with GPS, the information on this screen will no longer be available. There will be no memory of the last
received position.

3.4. PER (Packet Error Rate) screen

This menu can be accessed by briefly pressing on pushbutton 2 after the GPS menu. It will allow you to evaluate the quality of the radio connec-
tion between the device and the network.
Status bar
Frame counters
All manuals and user guides at all-guides.com
Icon Description
SAT xx Indicates the number of satellites received by the device
Indicator showing the quality of the GPS signal
1 bar: weak reception
2 bars: average reception
3 bars: good reception
Display showing latitude coordinates in degrees, minutes and seconds
Display showing longitude coordinates in degrees, minutes and seconds
Figure 12 : GPS screen (No synchronisation)
Figure 13 : PER screen
Figure 11 : GPS screen
FR
EN
Page 35 of 44
