FIELD TEST DEVICE sigfox RC2 - Guide utilisateur / User guide version V1.0.0

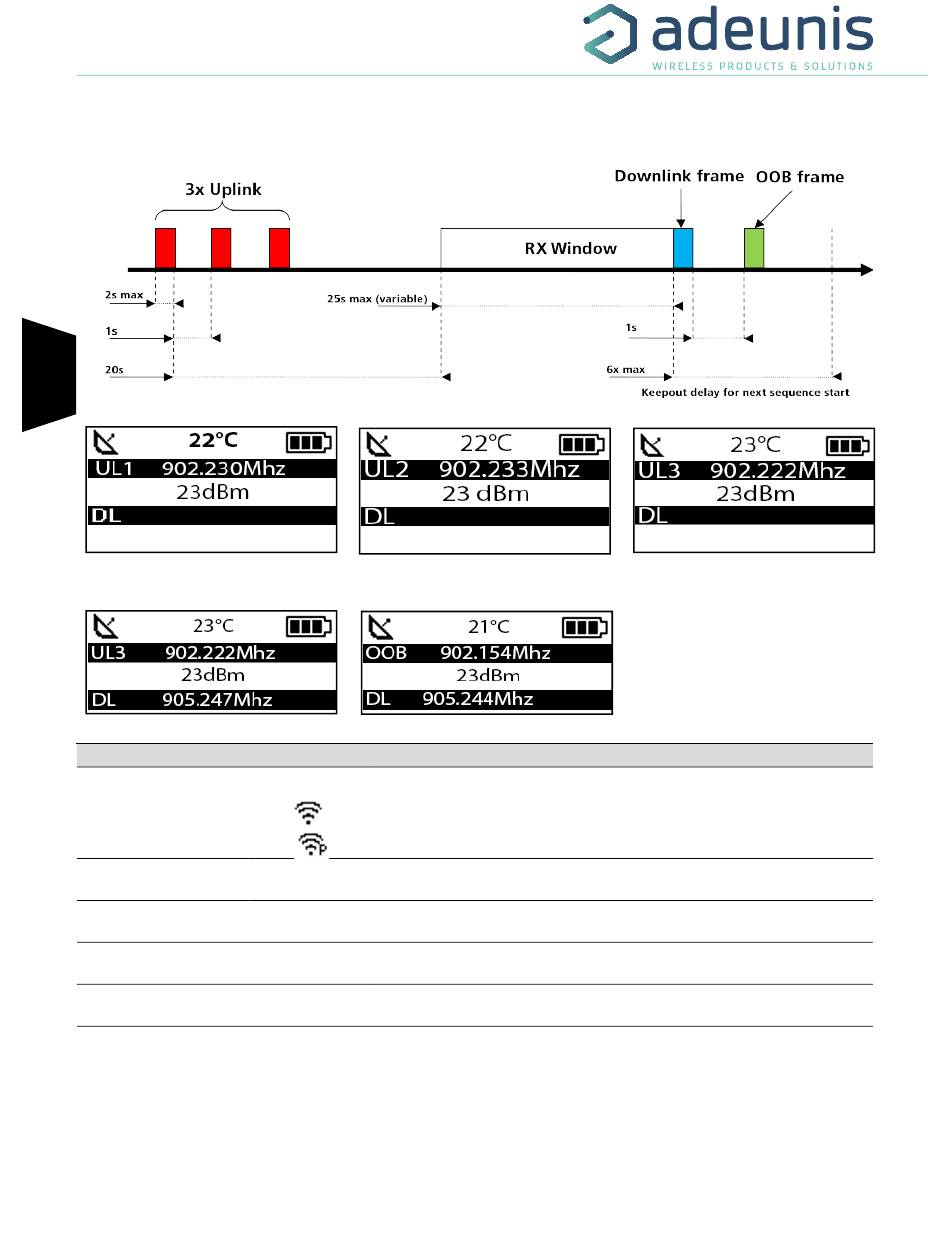

The sigfox cycle can be split in several stages :
• 3 emissions on a variable frequency (Figure 6, 7 et 8)
• 1 reception windows after a 20 secondes times break (Figure 9)
• 1 OOB emission, if the product received a downlink (Figure 10)
FR
EN
Figure 6 : Uplink 1
Figure 9 : Downlink
Item
Transmission Status
(Second on the left)
Uplink information
(Black Line)
Uplink Information
(White Line)
Downlink Information
(Black Line)
Downlink Information
(White Line)
The Downlink information displayed on the device relates to a Downlink frame sent from a sigfox network. If no information can be found in this
section, this does not indicate that the device will not function on the network but only that it has not received any information from the network.
To validate the upload link (sending a frame from the device to the network) it is necessary to use an interface that will allow you to read frames
from the network (example: back-end or application).
All manuals and user guides at all-guides.com
Figure 7 : Uplink 2
Figure 10 : OOB
Icon Description
No icon There is currently no radio transmission
Manual transmission has been triggered (transmission cycle in progress)
Periodic transmission has been triggered (transmission cycle in progress)
Display showing the number of Uplink (UL1 to UL3) frame repetitions as well as the
transmission frequency of the frame or the OOB frame, accurate to three decimal place.
Display showing the SF used as well as the transmission power of the frame.
Display showing the listening window of the device (DL) as well as the reception
frequency of the frame, accurate to three decimal place.
Display showing the RSSI of the most recent frame received.
Figure 8 : Uplink 3
