Defensor Mk4 Manuel page 18

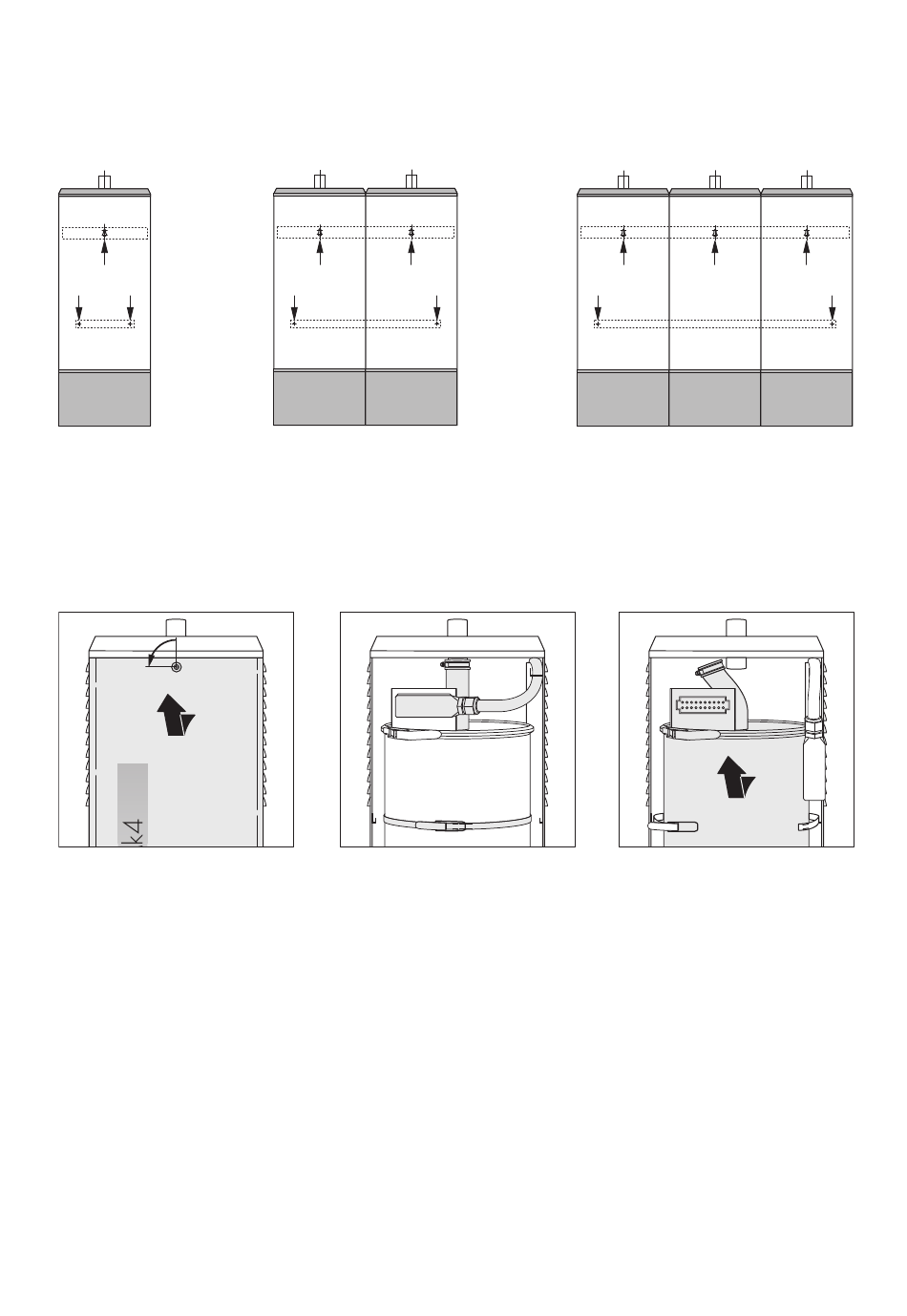

1.3 Unit fixing
A
B B
1.
18
• Mark hole(s) for the top fixing points "A" on the wall (see also "Dimensional
drawings").
Important! For multiple units check alignment with a spirit level.
A A
B B
• Drill hole(s) (10 mm dia.) and insert dowel(s) supplied in hole(s).
• Insert screw(s) supplied until head of screw is 5 mm from wall.
• Suspend unit from screw(s).
Important! With multiple units check horizontal alignment again with a spirit
level.
• Dismantle steam cylinder:
2.
3.
4.
1. Release lock of front cover with a screwdriver (turn 90° to left) and remove
front cover.
2. Release upper hose clip of steam outlet hose and withdraw connector
downwards from steam hose nipple.
3. Detach cable harness from plug and suspend in the holder provided for this
purpose.
4. Cut transport securing strap and throw it away, then release clamping ring
(steam cylinder fixing) and suspend in the holders provided for this purpose.
5. Tilt steam cylinder forwards and dismantle.
Warning! Shut off steam cylinder carefully so that the drain opening is not
damaged.
• Align unit vertically with spirit level.
• Mark the 2 holes for the lower fixing points "B" on the wall through the case.
Then remove unit.
• Drill the two holes (10 mm dia.) and insert the dowels supplied in the holes.
A A
B
5.
A
B
