Seat Adjustment - Matrix R30 Mode D'emploi

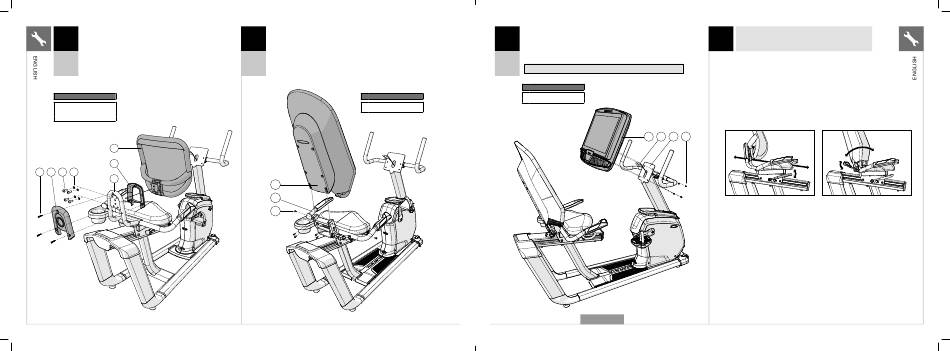

NOTE: This step is for R30 models only.
5
A Open HARDWARE FOR STEP 5.
B Place the INSIDE COVER (13) over the MESH SEAT BACK (14)
and mount the MESH SEAT BACK (14) to the SEAT FRAME
ASSEMBLY (9) with 4 BOLTS (C) and 4 SPRING WASHERS (I).
R30 Torque settings: 23.1 Nm / 17 lb-ft.
C Attach the OUTSIDE COVER (15) to the SEAT FRAME (8) and
INSIDE COVER (13) with 3 SCREWS (J).
Hardware For Step 5
Description Qty
C Bolt 4
I Spring Washer 4
J Screw 3
14
13
J 15 C I
9
92
MXR20_AG_Bikes_r1_0_B.indd 92-93 MXR20_AG_Bikes_r1_0_B.indd 92-93
NOTE: This step is for R50 models only.
5
A Open HARDWARE FOR STEP 5.
B Attach the MESH SEAT BACK (14) to the SEAT FRAME ASSEMBLY
(9) using 6 BOLTS (I). Torque settings: 9.5 Nm / 7 lb-ft.
R50
Hardware For Step 5
Description Qty
I Bolt 6
14
9
I
A Open HARDWARE FOR STEP 6.
6
B Connect the CABLES (1) to the CONSOLE (17) and carefully tuck the
excess cable into the CONSOLE MAST (2).
C Attach the CONSOLE (17) to the CONSOLE MAST (2) using 4 BOLTS (K).
R30
R50
Note: Be careful not to pinch any wires while attaching the console.
Hardware For Step 6
Description Qty
K Bolt 4
17 1 2
R50 SHOWN
7
R30 / R50 ASSEMBLY COMPLETE!

SEAT ADJUSTMENT

To determine proper seat position, sit on the seat and position the ball
of your foot on the center of the pedal. Your knee should bend slightly
at the furthest pedal position. You should be able to pedal without
locking your knees or shifting your weight from side to side.
NOTE: It is recommended that you do not sit on the seat while adjusting its position.
K
SEAT POSITION SEAT BACK
ADJUSTMENT (R50)
To adjust, lift up on the adjustment
lever and hold. Then, slide the To adjust the tilt angle of the
seat to a position that puts you seat back, rotate the lever down
in a comfortable pedaling range (counterclockwise) and lean back
(one that keeps a slight bend in on the mesh seat back until the
your knee while your legs are in desired position is achieved. When
the extended position). Release the position is set, rotate the lever
lever to lock the mechanism. upward (clockwise) until it is snug.
The seat back comes equipped
with a spring return system to
return the seat back to its original
position when the adjustment
lever is released and the user is
not leaning against the seat back.
93
