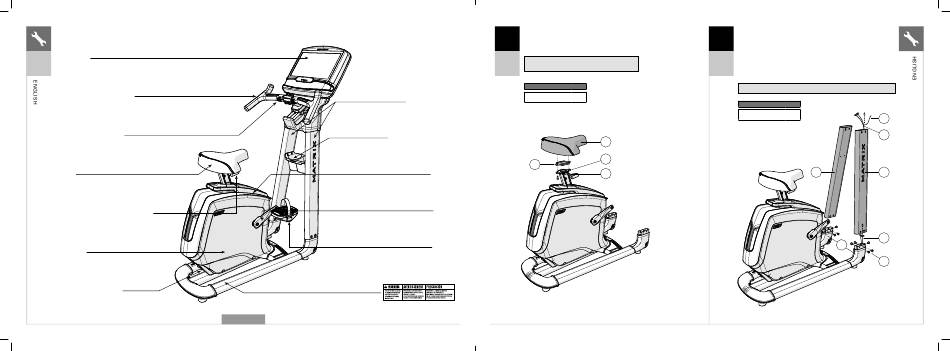

CONSOLE
U30
U50
PULSE GRIP HANDLEBARS
RESISTANCE TOGGLES
SEAT
SEAT ADJUSTMENT LEVER/KNOB
SHROUD
POWER CORD SOCKET
94
MXR20_AG_Bikes_r1_0_B.indd 94-95 MXR20_AG_Bikes_r1_0_B.indd 94-95
WATER BOTTLE HOLDER
U50 SHOWN
A Open HARDWARE FOR STEP 1.
1
B Attach the SEAT (1) to the SEAT POST (2) using SEAT BRACKET
(3) and 2 BOLTS (A). Torque settings: 9.5 Nm / 7 lb-ft.
U30
Note: Tighten the bolts evenly by alternating
U50 between front and back until completely tightened.
Hardware For Step 1
Description Qty
A Bolt 2
CONSOLE MASTS
3
TOP CAP
CRANK
PEDALS
A Open HARDWARE FOR STEP 2.
2
B Carefully pull the CABLES (4) through the RIGHT
CONSOLE MAST (6) using the LEAD WIRE (5) located
inside the CONSOLE MAST (6). Discard the lead wire.
C Attach the RIGHT CONSOLE MAST (6) to
U30
BIKE FRAME (8) using 5 BOLTS (B).
U50
D Attach the LEFT CONSOLE MAST (7) to BIKE FRAME (8)
using 5 BOLTS (B). Leave bolts loose until after step 3.
Note: Be careful not to pinch any wires while attaching the console mast.
Hardware For Step 2
Description
B Bolt
1
2
A
Qty
10
5
4
7 6
4
8
B
95
