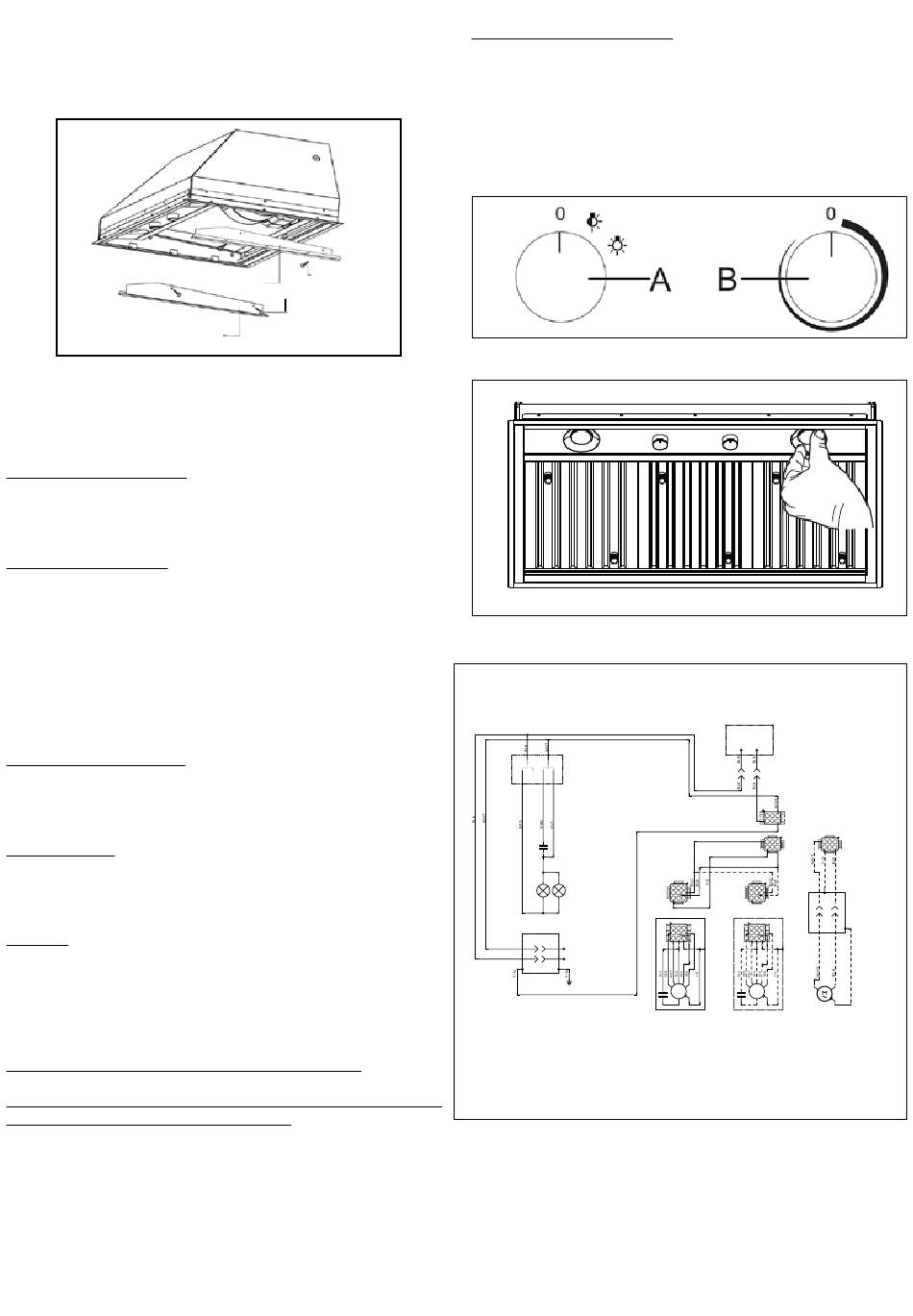

ALL INSTALLATIONS
1. Use a drill to install side rails on the inside rangehood walls to
line the inside hood wall with stainless, 2 and 3 in FIGURE 26 with
9a. screws, 4 screws total.
FIGURE 26
USE AND CARE INFORMATION
This rangehood system is designed to remove smoke, cooking vapors
and odors from the cooktop area.
Rangehood Control Panel
The control panel is located in the center of the hood bottom. The
position and function of each control button are indicated in FIGURE
27
Light On/Off Button (A)
On/Off switch for the halogen lights. Position "0" turns the lights off,
turning the switch to the right one click is the dimmer position, and
the next click to the right is full power
Blower On/Off Button (B)
On/Off switch for the blower. Move the dial to the right to turn the
blower ON and vary the speed of the blower. Turn to the left at "0"
to turn it OFF.
For Best Result
Start the rangehood several minutes before cooking to develop proper
airflow. Allow the unit to operate for several minutes after cooking is
complete to clear all smoke and odors from the kitchen.
Cleaning
The stainless steel grease filters and grease rail should be cleaned
frequently in hot detergent solution or washed in the dishwasher.
Clean exterior surfaces with a commercially available stainless steel
cleaner. Abrasives and scouring agents can scratch stainless steel
finishes and should not be used to clean finished surfaces.
Grease rail and Grease Filter Installation / Removal
Remove the plastic from the filter, the knobs need to be installed
onto the filter with 2 screws to each filter
Install the grease rail into the back of the hood, into the slots on the
inside floor of the rear of the hood. The Grease filters should be
installed before operating the rangehood. To install the filters, use the
two knobs (in FIGURE 28) to hold the filter and insert the filter into
the front edge of the hood with the knobs facing out into the spring
loaded slot. Install the other end of the filter above the grease rail in
the back of the hood.
9a
3
9a
9a
2
Replacing the Halogen Lamp
Before you begin, make sure that the rangehood is turned off and
that the other lamps have had sufficient time to cool. Halogen lamps
burn extremely hot and serious injury could result from touching a hot
lamp. Press and twist the lamp to remove. Then remove the lamp
and replace with a new lamp.
WIRING DIAGRAM
0
1
2
R11B41
A
B
LIGHT CONTROL
OFF / HALF LIGHT / ON
1
2
3
4
WIRING BOX
LINE IN
WHT
N
120Vac
BLK
L
60Hz ~
Y-G
SCHEMA ELETTRICO INCA PRO PLUS UL
Ver :
Rev :
3
Disposizione di messa a terra
Materiali: non deveno contenere Pb, Cr6+, Hg, PBB, pbde, ai sensi della direttiva 2002/95 CE
Non rilevare quote dal grafico non apportare modifiche senza l'autorizzazione d'ufficio progettazione
This rangehood uses 45 watt PAR16
Creato da.
DOLCE CORRADO
a termini di legge ci riserviamo la proprieta' del presente disegno con divieto di riproduzione totale o parziale
Halogen Lamps.
FIGURE 27
FIGURE 28
3
4
5
6
ON/OFF MOTOR
SPEED CONTROL
1
2
3
4
5
6
Y-G
BLU
3
2
1
6
5
4
Y-G
3
2
1
3
2
1
6
5
4
6
5
4
9
8
7
9
8
7
1
2
3
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
M8 4V
M8 4V
REMOTE
120V ~
120V ~
BLOWER
BRW
BRW
Version 10/12 - Page 11
7
8
3
2
1
6
5
4
WIRING BOX FOR
REMOTE BLOWER
Y-G
43600
Code :
H90
Disegno N :
Data:
11
