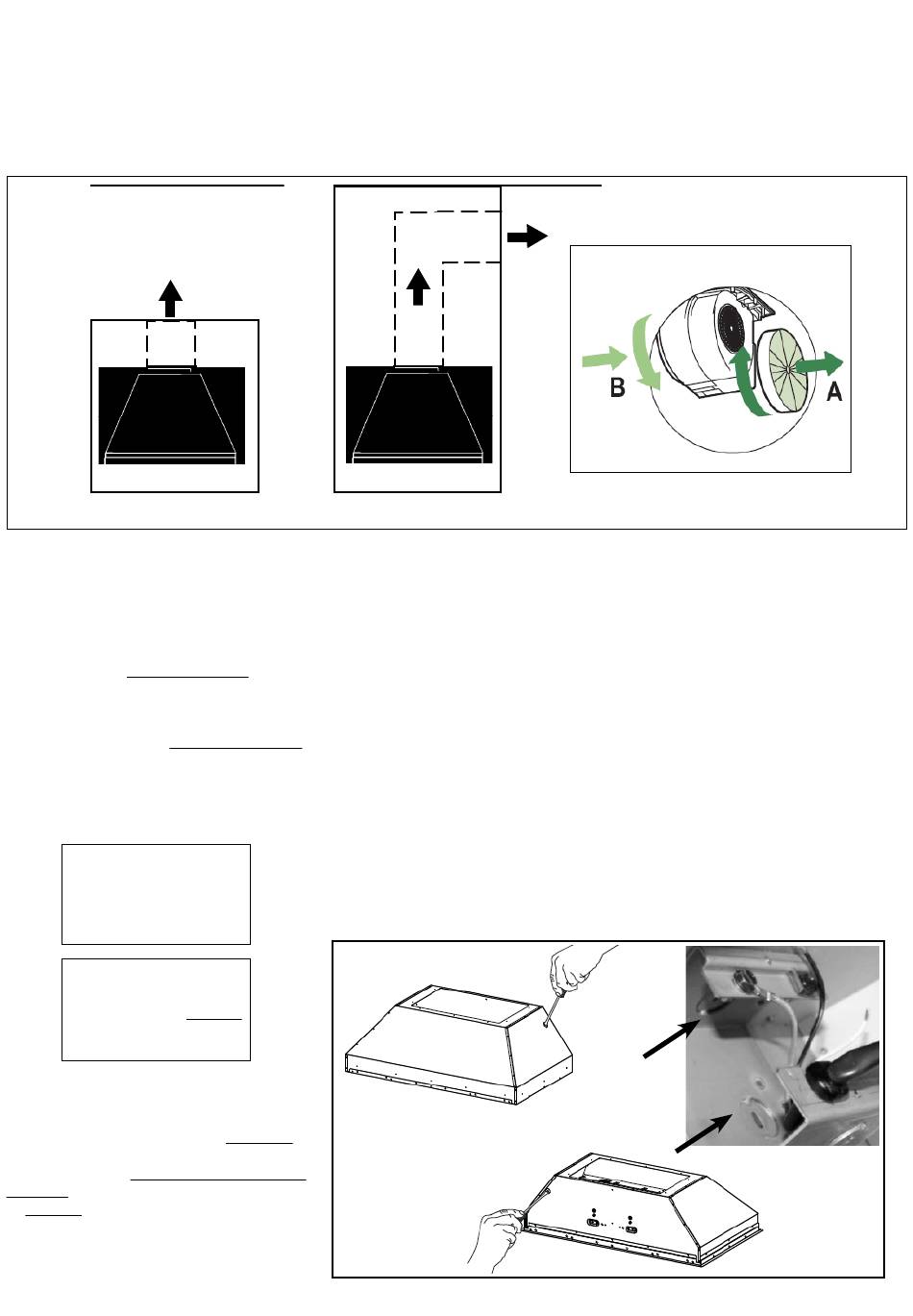

IT IS HIGHLY RECOMMENDED THAT PROFESSIONAL STYLE COOKING ALWAYS BE VENTED TO THE OUTSIDE. For recirculating
installations (FIGURE 4), Charcoal Filters are necessary. Remove all grease filters and set aside. Attach one charcoal filter to each end
of the blower. Each charcoal filter attaches to the grid on the side of the blower. Rotate the filter clockwise to install and counterclockwise
to remove (FIGURE 4A). Replace all grease filters. Recirculating installations also require some duct work to divert the air out of the top or
face or side of the cabinet or custom hood or out of the side / face of the soffit and back into the kitchen. Install at least 15" of vertical run of
metal duct (FIGURE 4) at the air outlet. Run the duct vertically and secure it at the relevant opening previously cut out at the top or side of
the cabinet or soffit. A metal duct cover grille is also recommended. The duct work must not terminate inside the cabinet or custom hood.
cabinet
or
duct
work
custom
hood
inca pro plus
PLAN YOUR DUCTWORK
To ensure that the blower performs to its highest
possible capacity, duct work should be as short
and straight as possilbe.
For satisfactory performance the duct run
should not exceed 50 equivalent feet if ducted
using the required minimum 6" round duct. For
10" round ducting with the 1200 cfm internal
motor or 900 / 1200 remote blower, the duct
run should not exceed 75 equivalent feet.
Calculate the length of the ductwork by adding
the equivalent feet in FIGURE 5 for each piece
of duct in the system An example is given in
FIGURE 6.
45˚ Elbow
90˚ Elbow
90˚ Flat Elbow
Wall Cap
FIGURE 5
9 Feet Straight Duct
2 - 90˚ Elbows
Wall Cap
Total System
FIGURE 6
For best results, use no more than three 90°
elbows. Make sure that there is a minimum of
24" of straight duct between elbows if more
than one is used. Do not install two elbows
together. If you must elbow right away, do it
as far away from the hood's exhaust opening
as possible.
RECIRCULATING INSTALLATIONS
ceiling
cabinet
custom
hood
FOR ALL INSTALLATIONS
REMOVE ALL WHITE PLASTIC PROTECTIVE COVERING FROM HOOD, SIDE RAILS,
TRIM, GREASE RAILS AND GREASE FILTERS
1. Disconnect and move freestanding range from cabinet opening to provide easier access
to upper cabinet or custom hood. Put a thick, protective covering over cooktop, set-in range
or countertop to protect from damage or dirt.
2. Determine and make all necessary cuts in the wall and/or ceiling for the ductwork. Install
the ductwork before the rangehood.
3. Determine the proper location for the Power Supply Cable. Use a 1
this hole. Install the cable. Use caulking to seal around the hole. DO NOT turn on the
power until installation is complete.
3.0 feet
5.0 feet
4. Choose the knock out hole to remove for installing the power cable. Use a screwdriver
12.0 feet
to snap off the knock out covering. (FIGURE 7 shows inside the wiring box and outside)
0.0 feet
9.0 feet
10.0 feet
0.0 feet
19.0 feet
FIGURE 7
or
duct
work
inca pro plus
FIGURE 4
ceiling
FIGURE 4A
MAKE YOUR CUT-OUTS
Drill Bit to make
1/4"
