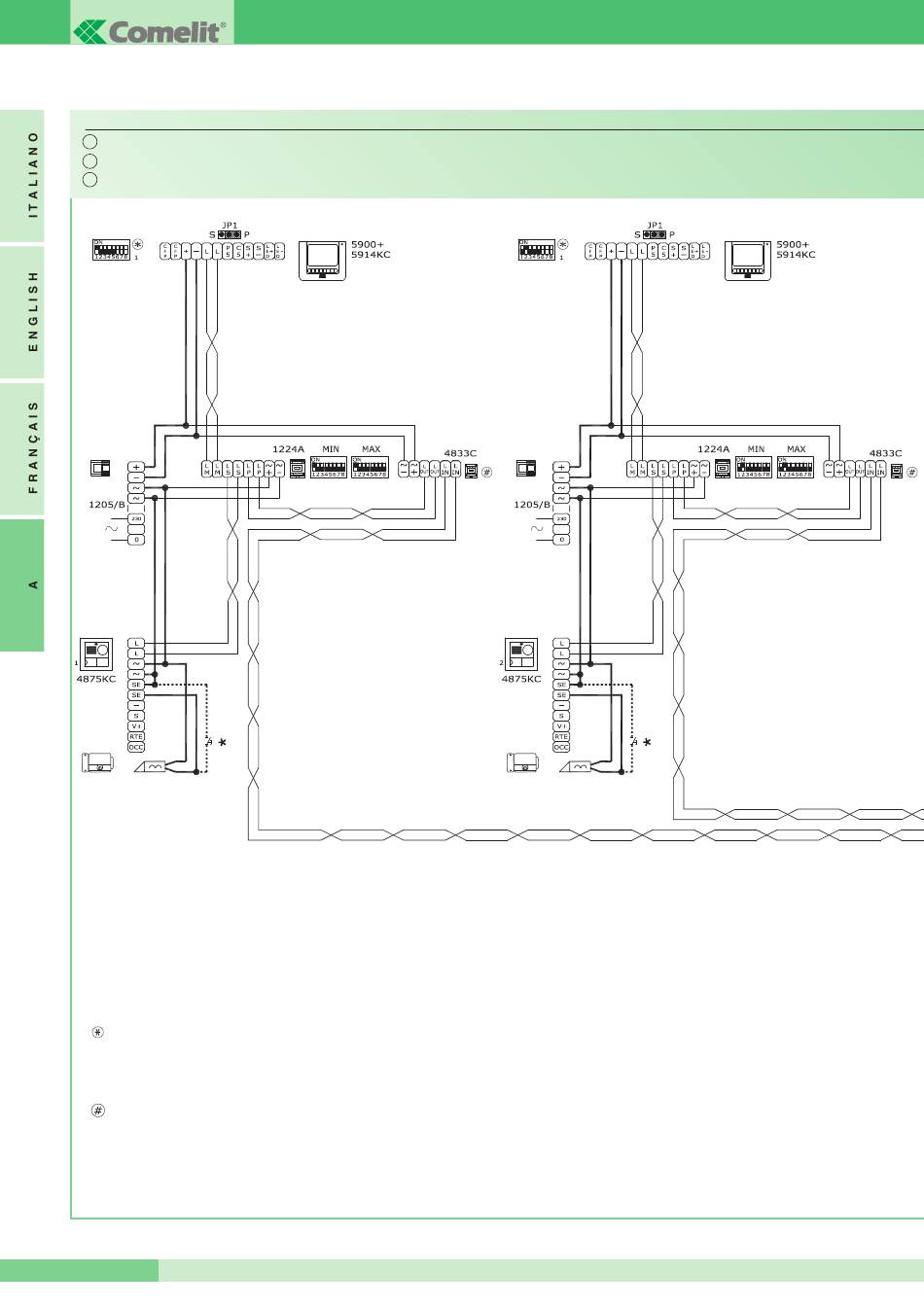

Schema per connessione a porta principale di 3 MAESTRO KIT tramite Art. 4834/9.
EN
Wiring diagram for connection of 3 MAESTRO KITS to a main entrance panel using Art. 4834/9.
FR
Schéma pour connexion à porte principale de 3 MAESTRO KIT par l'Art. 4834/9.
Soluzione utilizzabile al massimo per 9 MAESTRO Kit.
Solution which can be used for a maximum of 9 MAESTRO Kits.
Solution utilisable au maximum pour 9 MAESTRO KIT.
N.B. Le impostazioni di S1-6, S1-7 e S1-8 sono in funzione della configurazione desiderata (vedi tabella a pag 14).
NOTE: The S1-6, S1-7 and S1-8 settings depend on the configuration required (see table on page 34).
NOTE: Les programmations de S1-6, S1-7 et S1-8 sont en fonction de la configuration désirée (voir tableau page 54).
Per maggiori informazioni sulle distanze di utilizzo dell'Art. 4833C e Art. 4834/9 e per maggiori informazioni
sulle impostazioni necessarie in merito all'Art. 1224A fare riferimento al manuale tecnico MT/SBC/01.
For further information about the usage distances of Art. 4833C and Art. 4834/9, and for further information
about the settings needed regarding Art. 1224A, refer to the MT/SBC/01 technical manual.
Pour plus de détails sur les distances dʼutilisation de l'Art. 4833C et de l'Art. 4834/9, ainsi que pour plus
de détails sur les réglages nécessaires par rapport à l'Art. 1224A, faire référence au manuel technique MT/SBC/01.
