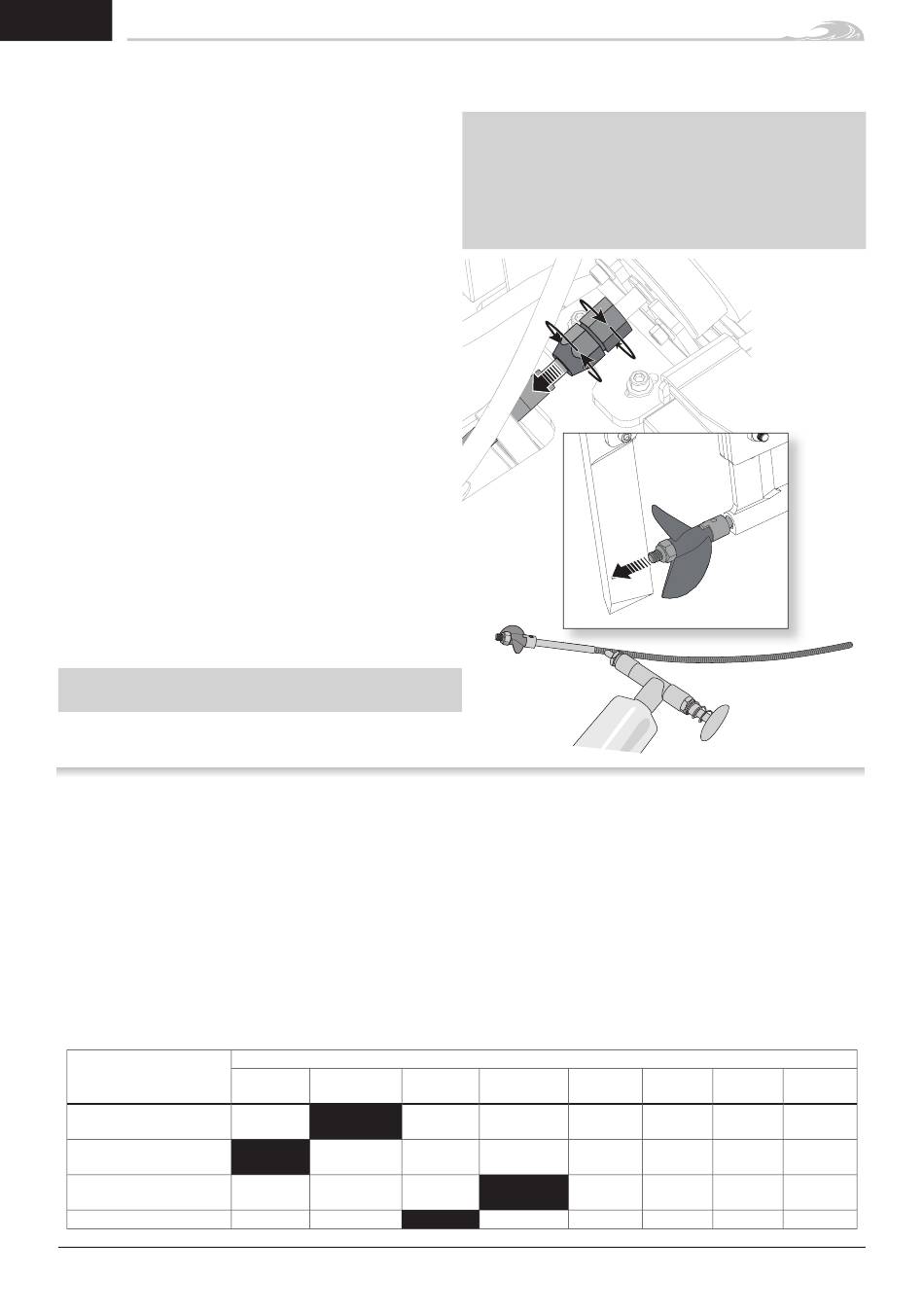

Drivetrain Lubrication

Always replace the drivetrain parts when they are
damaged or show visible wear or injury and damage may
result.
Lubricating the flex shaft is vital to the life of the
drivetrain. The lubricant also acts as a water seal, keeping
water from entering the hull through the stuffing tube.
Lubricate the flex shaft and propeller strut after every 30
minutes of operation and/or everytime you change the
batteries.
1. Inside the hull, use 2 10mm open-end wrenches to
loosen the collet nut from the flex shaft.
2. Slide the flex shaft out from the stuffing tube and
drive strut at the rear of the boat.
Tip: Use paper or cloth to touch the flex shaft and other
lubricated parts.
3. Wipe the old lubricant and material from the flex
shaft.
Tip: Use motor spray (DYN5500) to break down the
grease buildup.
4. Lubricate the full length of the flex shaft assembly
up to the drive dog using Pro Boat Marine Grease
(DYNE4200). Also apply grease to the collet threads.
5. Carefully reinstall the flex shaft in the drive strut,
stuffing tube and collet. If the flex shaft is difficult to
remove from (or install into) the collet, rotate the flex
shaft to the right while pulling it from (or inserting it
into) the collet.
NOTICE: Do not rotate the flex shaft to the left inside
the coupler.
ESC Programing
1. Pull and hold the Throttle Trigger to full throttle and
turn the ESC on.
2. After 2 seconds a "-B-B" will sound. Wait another
5 seconds and the ESC will give a rising tone to
indicate you have entered Programming Mode.
3. After entering Programming Mode, you will hear 4
tones in a loop indicating Programmable Items. Push
the Throttle Trigger to full brake within 3 seconds
after the tone sounds matching the programmable
item you want to select.
The black-shaded setting is the factory default
Programmable Items
Running Mode -B
Li-Po Cells -B-B
Low Voltage Cutoff
-B-B-B
Timing -B-B-B-B
12
Programmable Value
-B -B-B
Forward Forward/
Only Backward
Auto
2s
Calc.
None 2.8V/Cell 3.0V/Cell
0.00º 3.75º
Ensure there is a 2mm gap between the drive strut and
drive dog to allow for flex shaft shrinkage under load.
NOTICE: Running the boat in saltwater could cause some
parts to corrode. If you run the boat in saltwater, rinse it
thoroughly in freshwater after each use and lubricate the
drive system.
NOTICE: Because of its corrosive effects, running RC
boats in saltwater is at the discretion of the modeler.
4. After selecting a programmable item, you will hear
several tones in a loop indicating Programmable
Values. Pull Throttle Trigger to full throttle to select
the value matching the tone. The ESC will give an
alternating tone to indicate the item is selected.
5. Keep the trigger in Full Throttle to return to Step 3
and continue item selection. Move the throttle stick
to full brake position within 2 seconds to exit the
Program Mode.
-B-B-B -B-B-B-B B––
3s 4s
3.2V/Cell 3.4V/Cell
7 .50º 11.25º 15.00º
-B Single Beep B–– Long Beep
B–– B––
-B -B-B
5s 6s
18.75º 22.50º
UL 19 Hydroplane
B––
-B-B-B
26.25º
