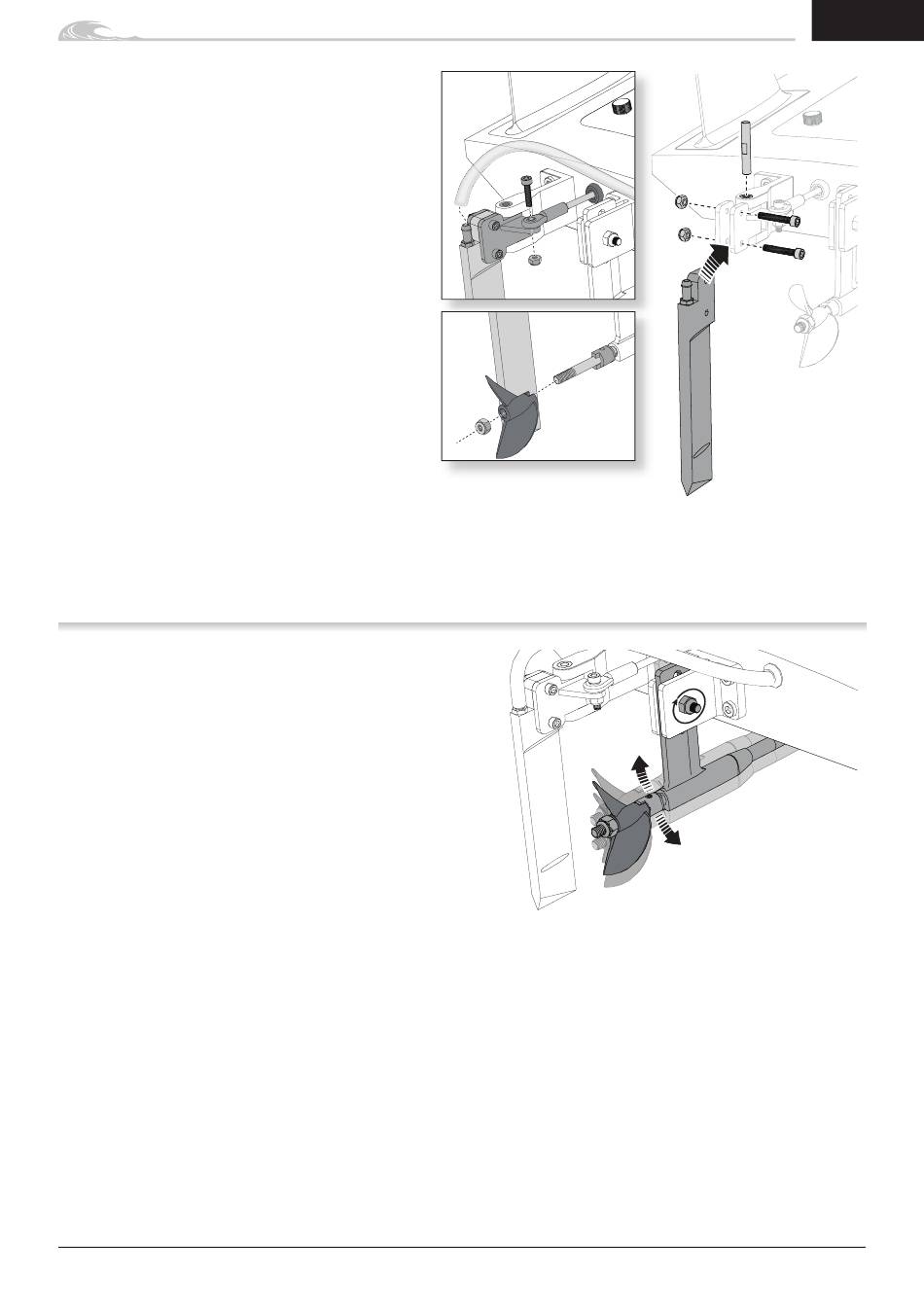

Rudder Service

1. Disconnect the water tube from the rudder.
2. Remove the nut, screw and linkage from the rudder
arm.
3. Turn the rudder and loosen the set screw from
the rudder pin.
4. Turn over the boat and lightly tap the rudder to
remove the pin.
5. Assemble in reverse order.

Propeller Service

1. Use an 8mm nut driver (DYN2805) to loosen the
nut from the driveshaft. To secure the propeller
while loosening the nut, hold the propeller.
2. Remove the nut and propeller from the driveshaft.
3. Assemble in reverse order. Correctly align the
propeller with the drive dog on the driveshaft.

Propeller Strut Depth Adjustment

Raising the propeller strut increases speed but
decreases handling.
Lowering the propeller strut increases stability but
decreases speed.
1. Use a 3 mm hex driver and 7mm open-end wrench
to loosen the propeller strut bolt.
2. Slide the strut up or down to change the angle of
the propeller in relation to the hull.
3. Once desired strut depth is achieved, tighten the
nuts and bolts.
30 - INCH READY - TO - RUN BRUSHLESS BOAT
