3.

Safety Distances

At the front and sides of the stove, no fl ammable, combusti-
ble or heat-sensitive materials (e.g. furniture, wood or plastic
panelling, curtains, etc.) are to be located within a distance
of 80 cm in the heat radiating area of the fi re box window.
(fi g. 1).
In regards to fl ammable materials beyond the heat radiating
area, a safety distance of 20 cm at the sides of and behind the
stove has to be adhered to (fi g.1).
WARNING!
Flammable fl ooring materials (e.g., wood,
laminate, carpeting,) must be protected with a
fl oorplate made of non-combustible material
(e.g., tiles, safety glass, slate, or sheet steel).
The size of the fl oorplate must be larger than
the base of the stove by at least 50 cm in front
and at least 16 cm at the sides of the stove
(fi g. 2).
30

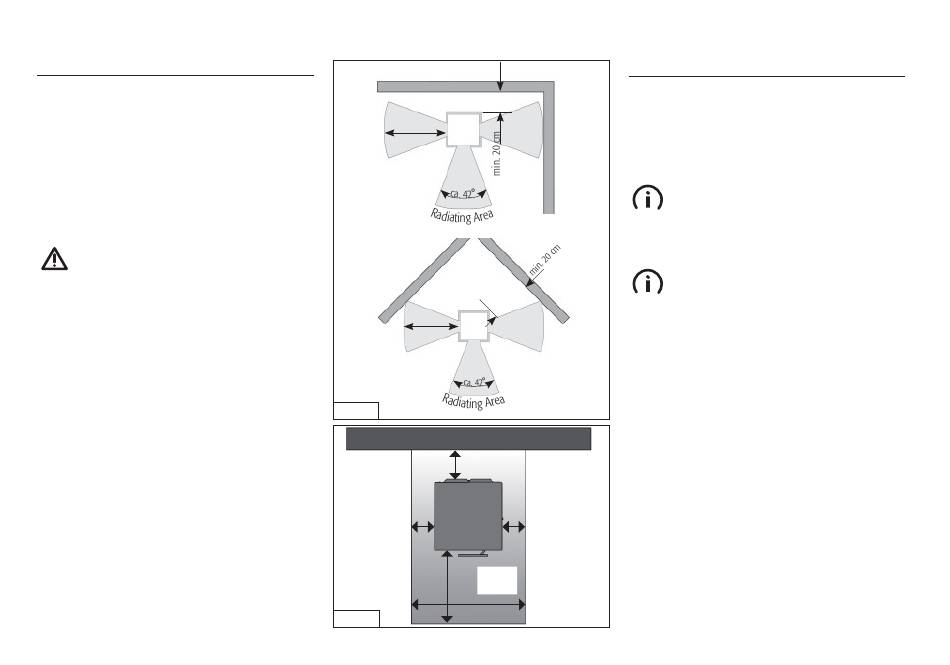

80 cm
80 cm
fi g. 1
20
16 16
fl oorplate
50
78
fi g. 2
4.

Fuel Load Sizes and Thermal Output

The thermal output depends on the amount of fuel you put in
the stove. When adding more fuel, please do not exceed the
maximum fuel load size of 2,5 kg. Exceeding the maximum
fuel load size leads to a danger of overheating, which can
result in damage to the stove and the risk of a stove fi re.
NOTE!
To attain a thermal output of approx. 9 kWm,
burn wood logs that weigh 2.5 kg and are no
longer than 30 cm in length for about 55 min.
NOTE!
To attain a thermal output of approx. 4,5 kWm,
burn wood logs that weigh 1 kg and are no
longer than 25 cm in length for about 40 min.
The Modena is intended for intermittent operation, please
only apply one fuel layer at a time.
Dimensions in cm
Dimensions in cm
