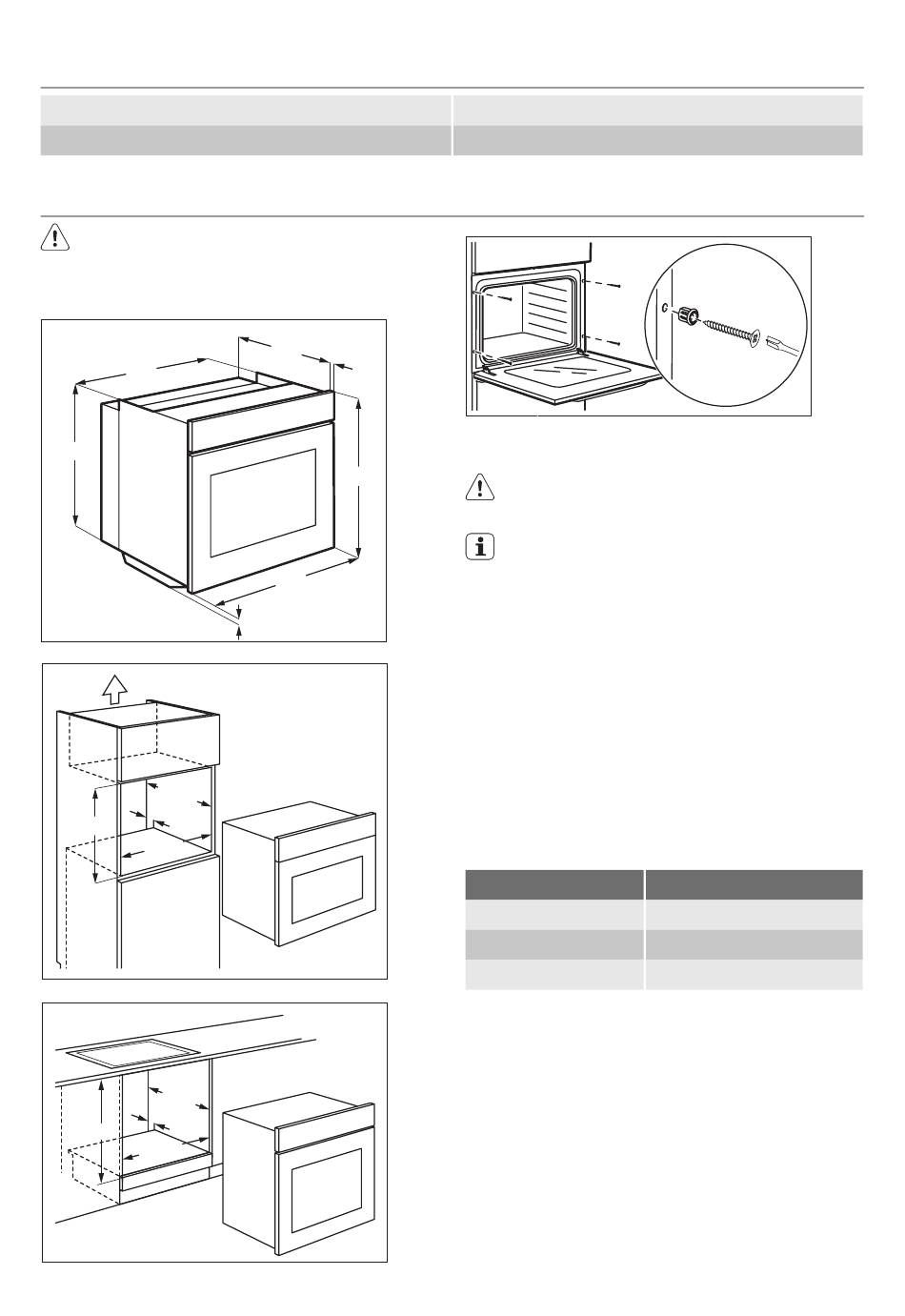

TECHNICAL DATA

Voltage
Frequency

INSTALLATION

Warning! Refer to "Safety information"
chapter.
Building In
560
570
min. 550
20
590
min. 560
min. 550
20
600
min. 560
540
20
590
594
7
230 V
50 Hz
Electrical installation
Warning! Only a qualified person must
do the electrical installation.
The manufacturer is not responsible if
you do not follow the safety precau-
tions from the chapter "Safety Informa-
tion".
This appliance is supplied with a main plug
and a main cable.
Cable
Cable types applicable for installation or re-
placement: H07 RN-F, H05 RN-F, H05
RRF, H05 VV-F, H05 V2V2-F (T90), H05
BB-F.
For the section of the cable refer to the total
power (on the rating plate) and to the table:
Total power
maximum 1380 W
maximum 2300 W
maximum 3680 W
The hearth cord (green / yellow cable) must
be 2 cm longer than phase and neutral ca-
bles (blue and brown cables).
progress 31
A
B
Section of the cable
3 x 0.75 mm²
3 x 1 mm²
3 x 1.5 mm²
