ASSEMBLY

ASSEMBLY OF THE PATIENT LIFT

Use ONLY Invacare parts in the assembly
A
of this patient lift. The base legs, the mast,
S
boom, pump assembly and the swivel bar
S
are manufactured to specifications that
E
assure correct alignment of all parts for
M
safe functional operation.
B
L
Unpacking the Patient Lift (FIGURE 1)
Y
1. Unpack the components from the shipping carton.
NOTE: Leave the plastic wrap that secures the boom
to the mast in place.

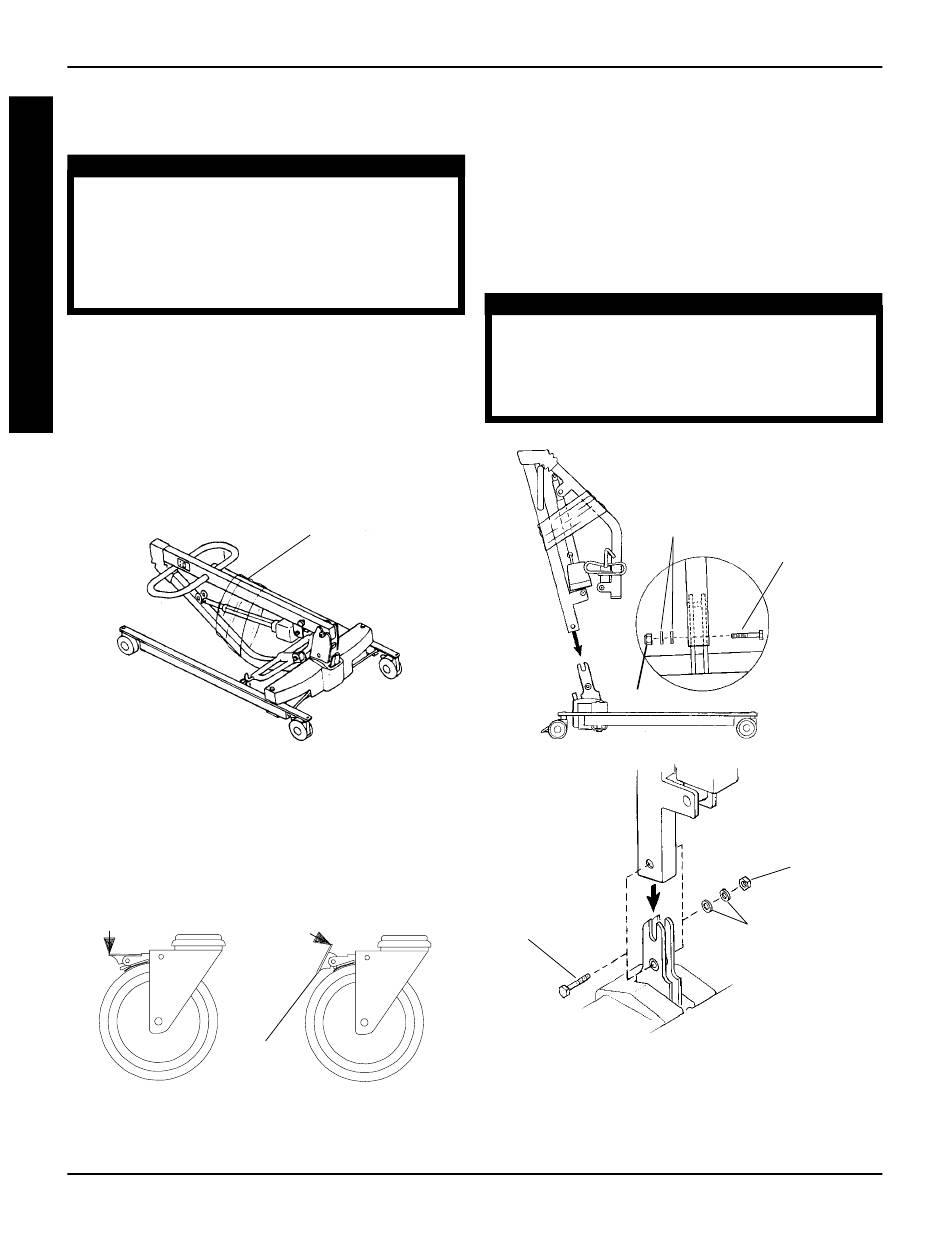

FIGURE 1 - UNPACKING THE PATIENT LIFT

Assembling the Mast to the Base

1. If locking-type casters are on the patient lift, lock
them (FIGURE 2).
Step Here to Lock
FIGURE 2 - LOCKING THE CASTERS
ASSEMBLY
WARNING
DO NOT remove
Plastic Wrap at
this time.
Step Here to Unlock
Locking
Lever
2. Remove the shoulder bolt, nut and washer,
that locate the mast in the U-shape cut-out of the
base.
3. Position the mast in an upright position and place
the mast into the U-shaped cut-out of the base
(FIGURE 3).
4. Insert shoulder bolt with washers through the base
and mast. Secure with nut (FIGURE 3).
WARNING
The mast may be removed from the
base for storage or transporting. Each
time the mast is removed and returned
to the base, the mast MUST be properly
secured to the base assembly.
Nut
Shoulder Bolt
FIGURE 3 - ASSEMBLING THE MAST TO THE
6
Washer
Shoulder Bolt
Nut
Washers
BASE
