INDEX
1. BURNER DESCRIPTION . . . . . . . . . . . .
1.1 Burner equipment. . . . . . . . . . . . . . . . . .
2. TECHNICAL DATA . . . . . . . . . . . . . . . . . 2
2.1 Technical data . . . . . . . . . . . . . . . . . . . .
2.2 Overall dimensions. . . . . . . . . . . . . . . . .
2.3 Firing rate . . . . . . . . . . . . . . . . . . . . . . . .
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . 3
3.1 Boiler fixing . . . . . . . . . . . . . . . . . . . . . .
3.2 Hydraulic systems . . . . . . . . . . . . . . . . .
3.3 Electrical wiring . . . . . . . . . . . . . . . . . . .
4. WORKING . . . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Combustion adjustment . . . . . . . . . . . . .

1. BURNER DESCRIPTION

Two stage light oil burner with low pollutant emissions (Nitric Oxide NOx, Carbon monoxide CO and unburnt
Hydrocarbons).
The burner meets protection level of IP X0D (IP 40), EN 60529.
Burner with CE marking in conformity with EEC directives: EMC 89/336/EEC, Low Voltage 73/23/EEC,
Machines 98/37/EEC and Efficiency 92/42/EEC.
CE Certification No. : 0036 0247/99 as 92/42/EEC.
2 3
1 - Pump with pressure reducer
2 - 4 pole socket
3 - Reset button with lock-out lamp
4 - Control-box
5 - Electronic start delaying device
6 - Hydraulic jacks

1.1 BURNER EQUIPMENT

Flange with insulating gasket . . . . . . . No. 1
Screw and nuts for flange . . . . . . . . . . No. 1
Cable gland . . . . . . . . . . . . . . . . . . . . . No. 1
4 pin plug . . . . . . . . . . . . . . . . . . . . . . No. 1
Boiler flange (only for model 1R6) . . . . No. 1
2900
Supplied By www.heating spares.co Tel. 0161 620 6677
1
1
2
2
2
3
4
5
6
4 5
6

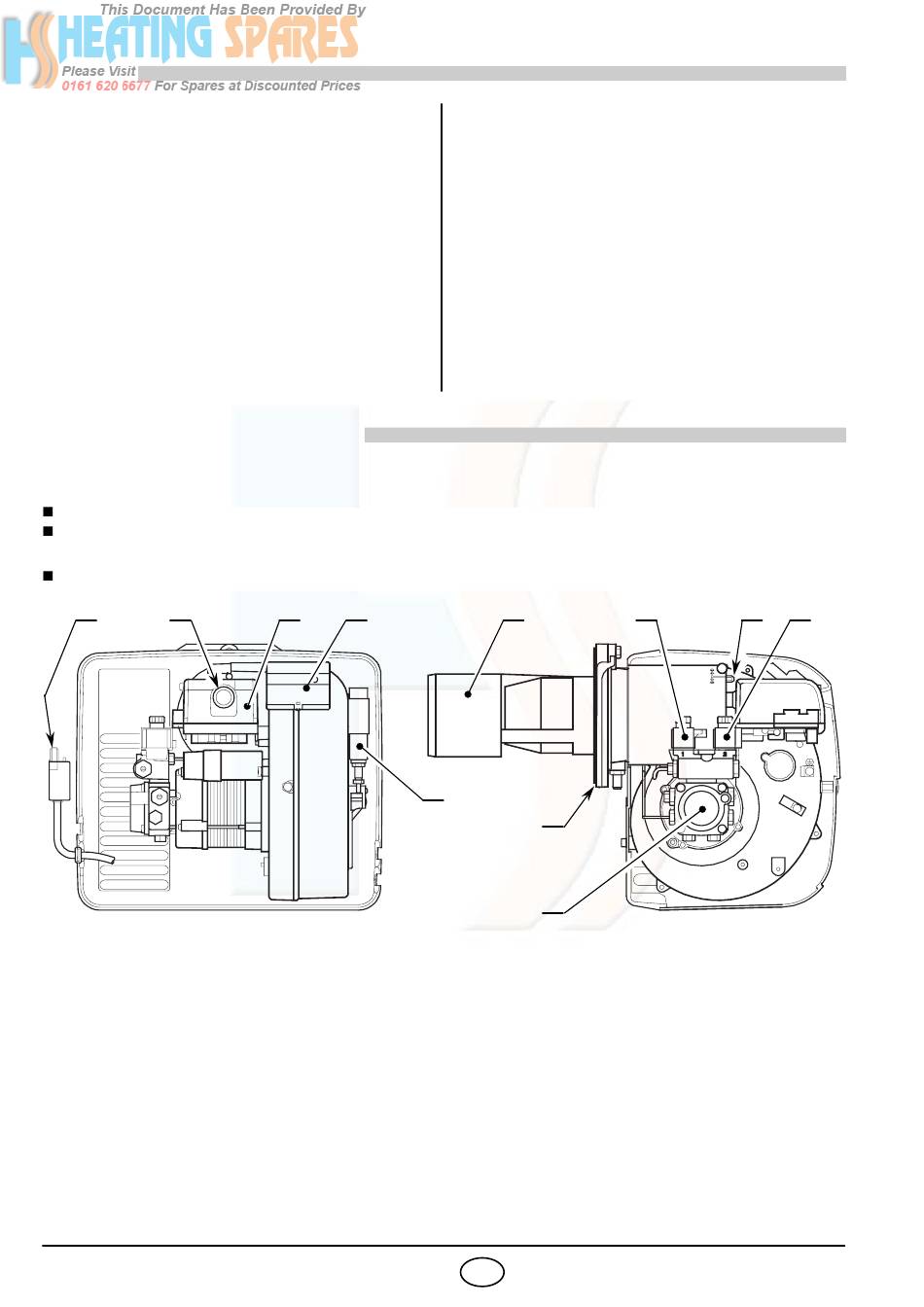

Fig. 1
Screw and nuts for flange to be fixed to boiler . . . No. 4
Flexible oil pipes with nipples. . . . . . . . . . . . . . . . No. 2
Recirculating pipe . . . . . . . . . . . . . . . . . . . . . . . . No. 1
7 pin plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
1
4.2 Nozzles recommended . . . . . . . . . . . . . .
4.3 Maintenance position . . . . . . . . . . . . . . .
4.4 Electrode setting . . . . . . . . . . . . . . . . . . .
4.5 Combustion head setting. . . . . . . . . . . . .
4.6 Recirculating pipe adjustment . . . . . . . . .
4.7 Air damper adjustment . . . . . . . . . . . . . .
4.8 Pump pressure and air output . . . . . . . . .
4.9 Burner start-up cycle . . . . . . . . . . . . . . . .
5. MAINTENANCE . . . . . . . . . . . . . . . . . . .
6. FAULTS / SOLUTIONS. . . . . . . . . . . . . . 10
11
7
1
7 - Flange with insulating gasket
8 - 1 st stage valve
9 - Combustion head adjustment screw
10 - 2 nd stage valve
11 - Recirculating pipe
GB
4
8 9 10
D6074
6
7
7
7
8
8
8
9
9
