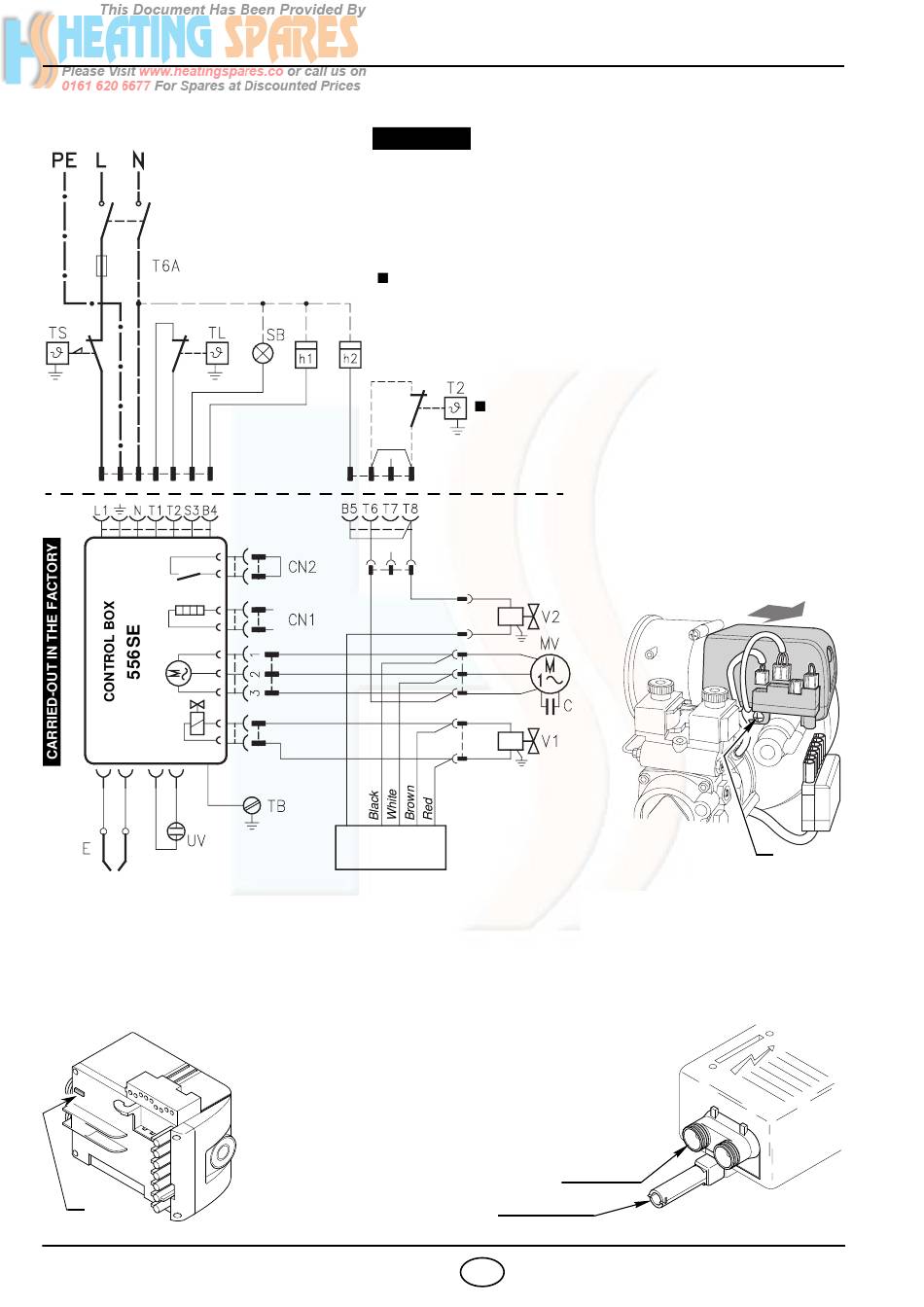

3.3 ELECTRICAL WIRING

~
50Hz 230V
Main switch
C Capacitor
E Ignition electrodes
UV Flame detector
MV Motor
1 st stage hour counter
h1
(230V - 0.1A max.)
Fig. 13
C
E9114
2900
Supplied By www.heating spares.co Tel. 0161 620 6677
WARNING
NOTES:
– Wires of min. 1 mm
local standards and legislation).
– The electrical wiring carried out by the installer must be in
compliance with the rules in force in the Country.
Connect 2nd stage thermostat between clamps T6 - T8 by
removing the bridge.
7 pin plug
7 pole socket
Black
White
Blue
Brown
Red
ELECTRONIC
DELAYING DEVICE
D1962
2 nd stage hour counter (230V - 0.1A max.)
h2
SB Remote lock-out signal (230V - 0.5A max.)
2 nd stage thermostat
T2
TB Burner-earth
TL Limit thermostat
TS Safety thermostat
1 st stage oil valve
V1
2 nd stage oil valve
V2
CN1 Protection block
CN2 Short circuit plug
For burners installed on air gen-
e r a t o r s , r e m o v e t h e b r i d g e
(C, fig. 13) from the control box.
DO NOT EXCHANGE NEUTRAL WITH PHASE
2
section. (Unless requested otherwise by
TESTING
Check the shut-down of the burner
by opening the thermostats.
CONTROL BOX
To remove the control-box from the
4 pin plug
burner, loosen screw (B, fig. 11) and
pull to the arrow direction, after re-
4 pole socket
moving all components, the 7 pin
plug and earth wire.
Blue
Blue
Black
White
Blue
ACCESS TO THE FLAME
DETECTOR, (see fig. 12)
The flame detector is fitted directly
into the control-box (underneath the
ignition-transformer) on a plug-in
support.
Ignition
transformer
Flame detector
5
GB
Fig. 11
E9064
B
Fig. 12
E9141
