3.4 Determining the type of misalignment

The laser line emitted from the laser unit will now appear on the receiver
unit. The pattern will vary depending on the type of misalignment, as shown
in figure 5, 6, 7 and 8.

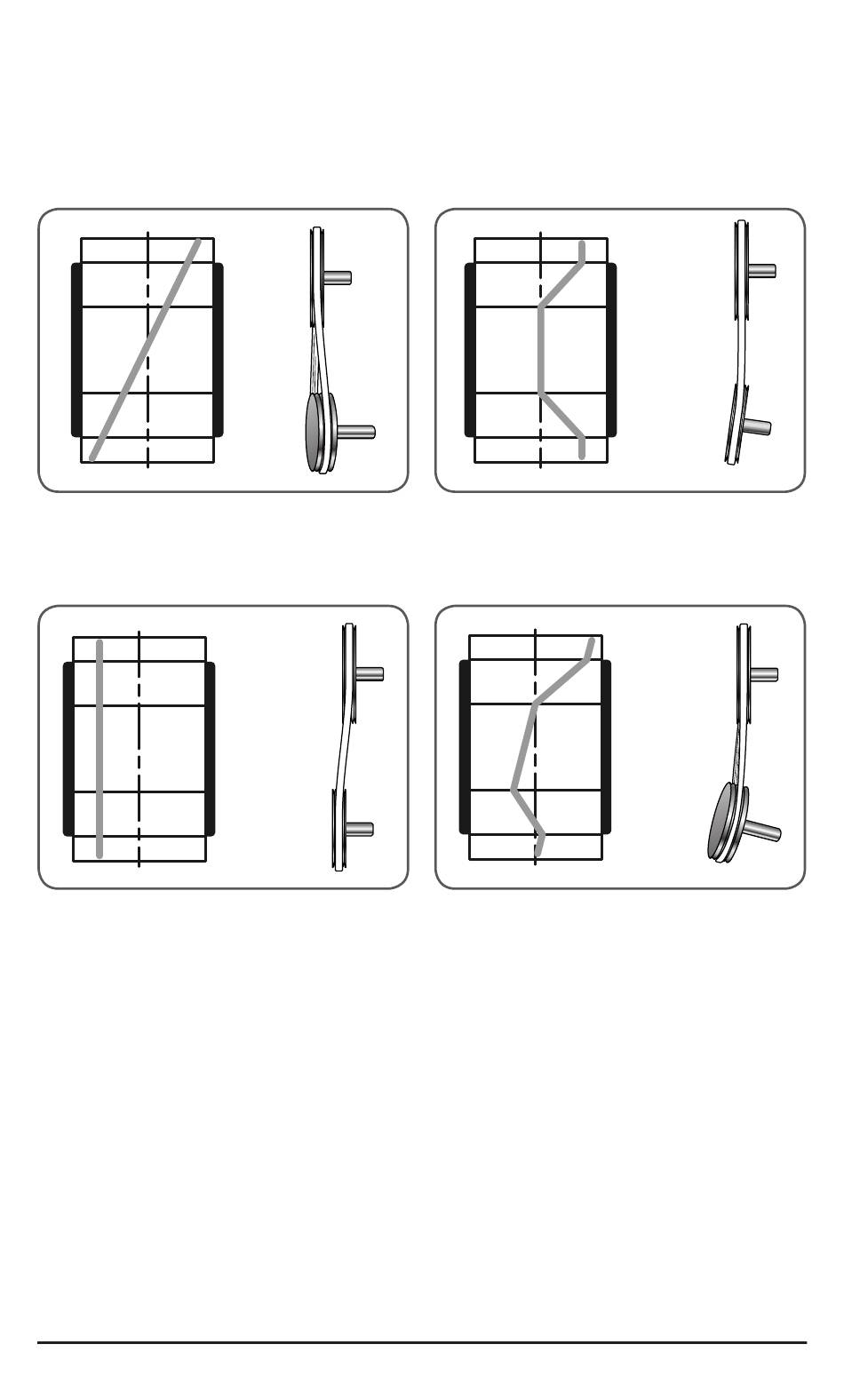

Fig 5 Display of vertical angle Fig 6 Display of horizontal angle
misalignment misalignment
Fig 7 Display of parallell misalignment Fig 8 Display of all three misalignments
combined
10 SKF TKBA 40
