OPERATION - NOTIFICATION SIGNS
GB
For more information about battery charger configuration, consult the User's manual for the series SBC NRG battery charger used.
INSTRUMENT OPERATION
Before attempting to turn on the instrument, make certain the dip - switch is set to the correct position. After hooking up the
instrument to the power supply, the display screen and all the leds come on for two seconds. If the connections are correct, Led
LINK will stay on and the instrument will show information about the battery charger.

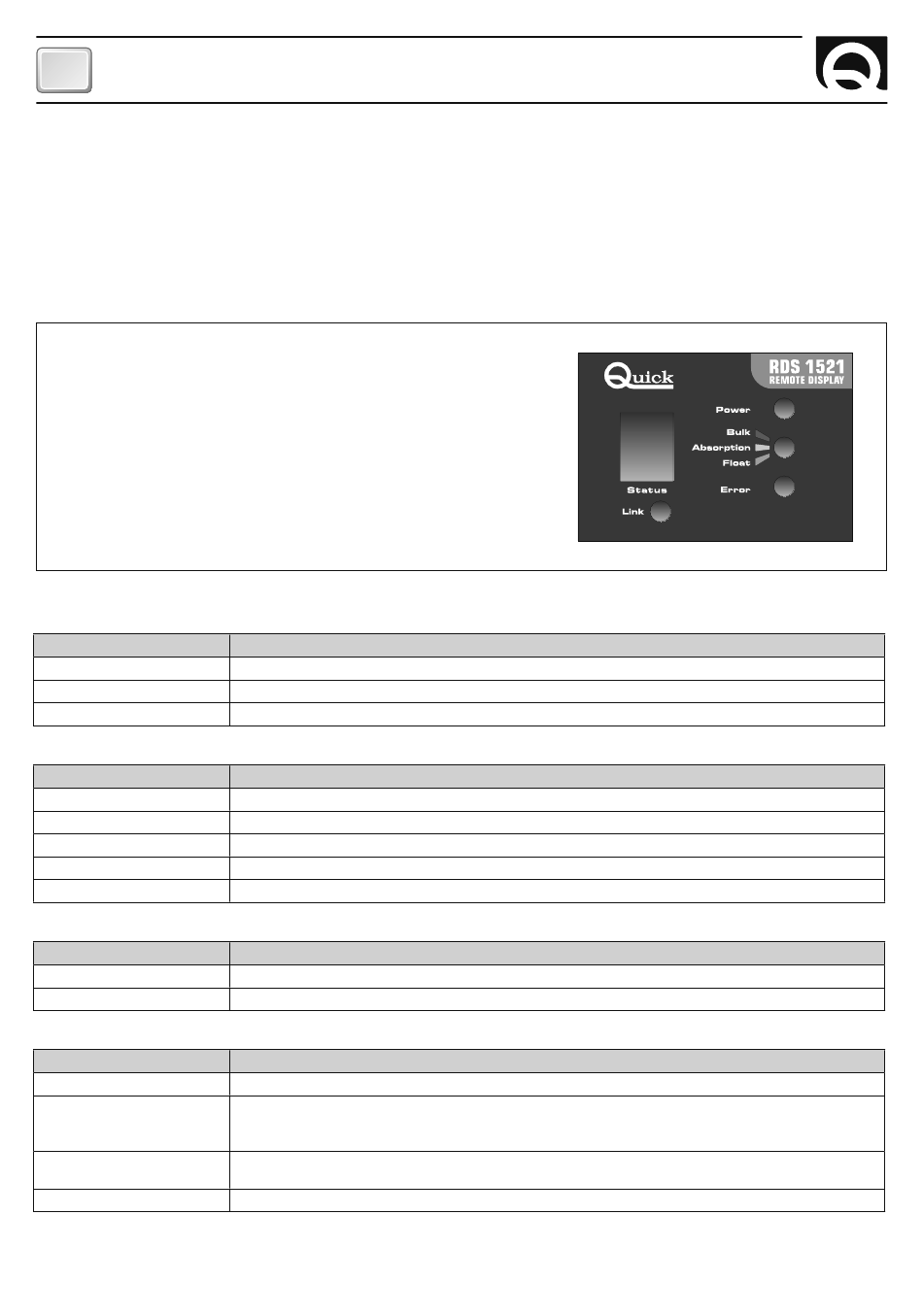

CONTROL PANEL

The control panel consist of 4 Leds and a 7 digit value:
POWER Led
(bulk, absorption, float)
CHARGE PHASE Led
ERROR Led
LINK Led
DISPLAY STATUS
POWER LED
LED STATUS COLOUR
OFF
GREEN
SLOW FLASH
CHARGE PHASE LED (BULK, ABSORPTION, FLOAT)
LED STATUS COLOUR
OFF
RED
ORANGE
GREEN
CONSTANT FLASH
ERROR LED
LED COLOUR
OFF
RED
LINK LED
LED STATUS
ALWAYS ON
SLOW FLASH
AVERAGE FLASH
QUICK FLASH
14
DESCRIPTION
No mains voltage.
Power on.
Battery charger in monitor mode.
DESCRIPTION
No output power.
BULK phase - charge at constant current.
ABSORPTION phase - charge at constant voltage.
FLOAT phase - maintenance charge.
Digital control of the parallel units on.
DESCRIPTION
No problem with manual reset.
Problem with manual reset (see error codes on display).
DESCRIPTION
Connection established between the instrument and the battery charger.
Link not present. If the battery charger is turned off, the Led should be in this state.
If the battery charger is turned on, try switching the instrument off and on, check the data
transmission cable connection, the group configuration, the priority and CAN termination.
Dip-switch configuration not admitted.
Check configuration.
The instrument does not recognise the battery charger model.
RDS 1521 - REV001A
