Installing The Instrument; Panel Installation - Quick RDS 1521 Mode D'emploi Et D'installation

CHARACTERISTICS AND INSTALLATION
GB
RDS 1521
The RDS 1521 remote display allows status of the Quick battery chargers series SBC NRG to be monitored through the CAN BUS interface.
INSTALLATION
The installation of the instrument must be carried out by qualifi ed personnel.
BEFORE USING THE INSTRUMENT CAREFULLY READ THIS USER'S MANUAL. IN CASE OF DOUBT CONTACT
®
THE "QUICK " SUPPLIER OR AFTER SALES SERVICE DEPARTMENT.
F
In case of discordance or errors in translation between the translated version and the original text in the Italian language,
reference will be made to the Italian or English text.
F
This device was designed and constructed for use on recreational crafts.
Other forms of use are not permitted without written authorization from the company Quick
The Quick ® RDS 1521 remote control panel has been designed for the purposes and tasks outlined in this User's Manual. Quick
shall not be held responsible for any direct or indirect property damage or personal injury caused by inappropriate or unintended
use of the equipment, erroneous installation or any errors that may be present in this manual.
THE WARRANTY SHALL BE VOID IF THE INSTRUMENT IS TAMPERED WITH OR ALTERED BY NON AUTHORISED
PERSONNEL.
THE PACKAGE CONTAINS: RDS 1521 - drilling template - connecting cable - termination connector - the present manual of
installation and use - conditions of warranty.

INSTALLING THE INSTRUMENT

The typical installation procedure is described herein. Needless to say, it is not possible to describe a procedure applicable for all
situations that may be encountered. Adapt this procedure to satisfy your own personal requirements.
Locate the most suitable position to house the instrument following the recommendations given below:
• The instrument should be installed in a place where it can be easily read by the operator.
• Select a clean, smooth and flat area.
• Access from the rear must be available for installation and maintenance purposes.
• Leave enough space free behind the installation to conveniently fit the back of the instrument and the connectors.
• The back of the instrument must be protected against contact with water and moisture.
• Pay careful attention when drilling the panel or parts of the boat. This hole should not weaken or break/crack the boat's structure.
The instrument meets EMC standards (electromagnetic compatibility) however correct installation is fundamental in order not to
compromise its performance as well as operation of the instruments found nearby.
For this reason, the instrument should be at least:
• 25 cm away from the compass.
• 50 cm away from any radio receivers.
• 1 m away from any radio transmitters (except for SSB).
• 2 m away from any SSB radio transmitters.
• 2 m away from radar beams.

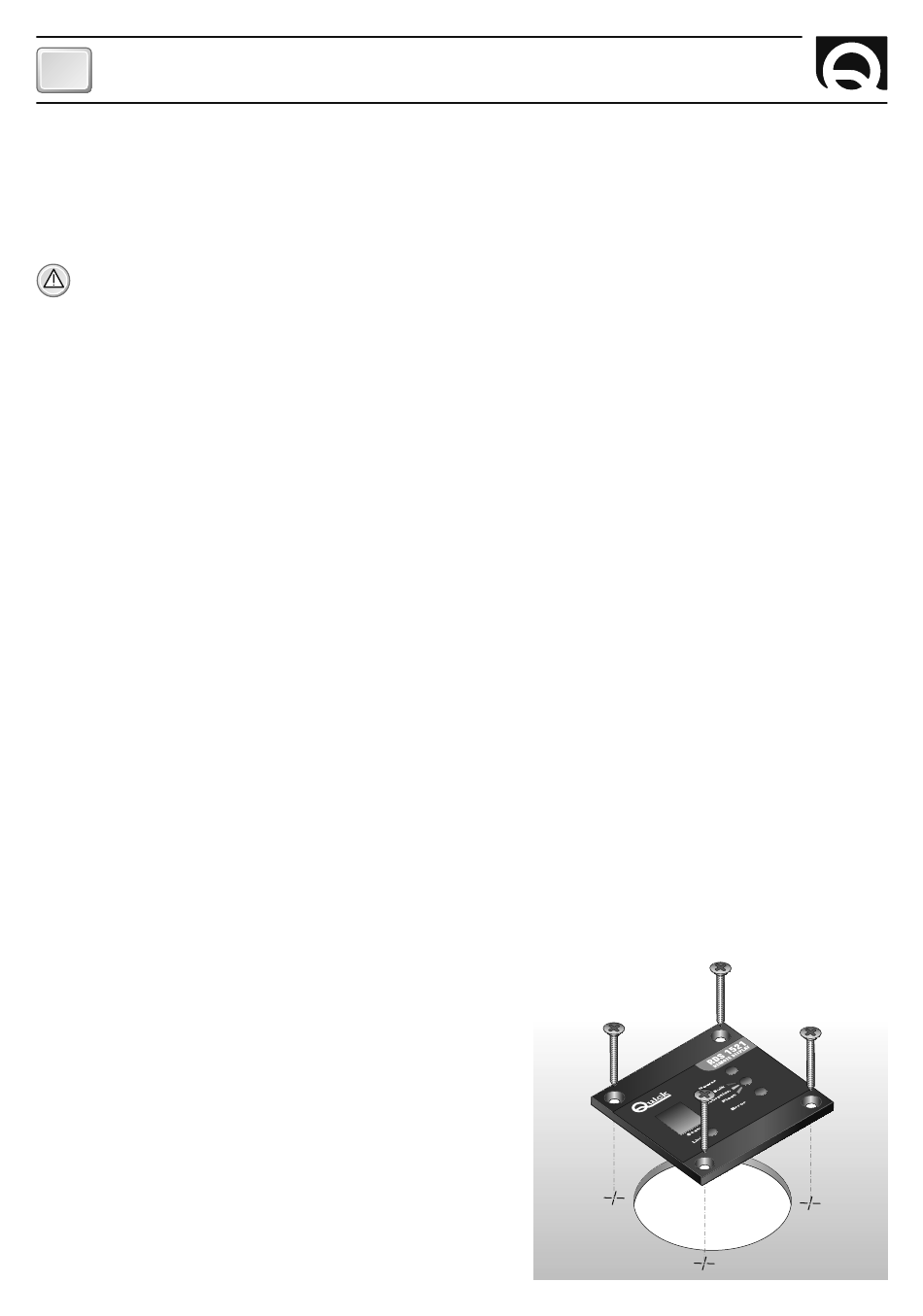

PANEL INSTALLATION

After selecting the area where the instrument is to be installed, per-
form the steps given below:
• Place the drilling template (supplied) on the surface where the in-
strument will be installed.
• Mark the center of each hole.
• Drill the hole.
• Remove the template and any burrs present.
• Put the instrument in place.
• Secure the instrument to the panel with 4 screws (not included in
the equipment).
