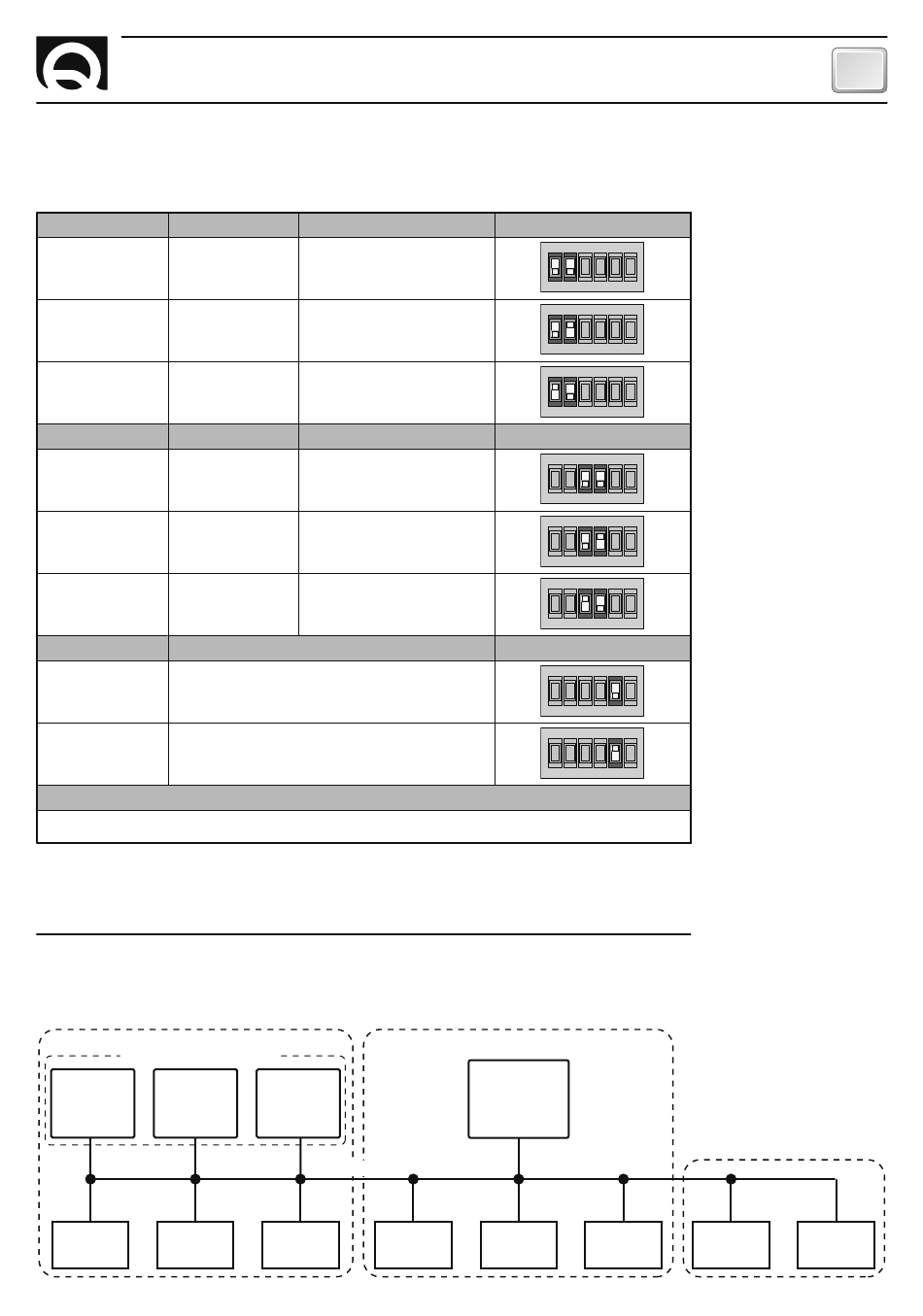

SETTING UP THE INSTRUMENT
The instrument is set up using a Dip-Switch. To configure the group, priority of the battery charger whose information be dis-
played and CAN termination, refer to the table given below:
SWITCH 1 SWITCH 2
OFF
OFF
ON
SWITCH 3 SWITCH 4
OFF
OFF
ON
SWITCH 5 FUNCTION
OFF
CAN TERMINATOR DEACTIVATED
ON
CAN TERMINATOR ACTIVATED
SWITCH 6
NOT USED
FACTORY SETTING:
A possible CAN network is illustrated below:
